Alternator: Service and Repair

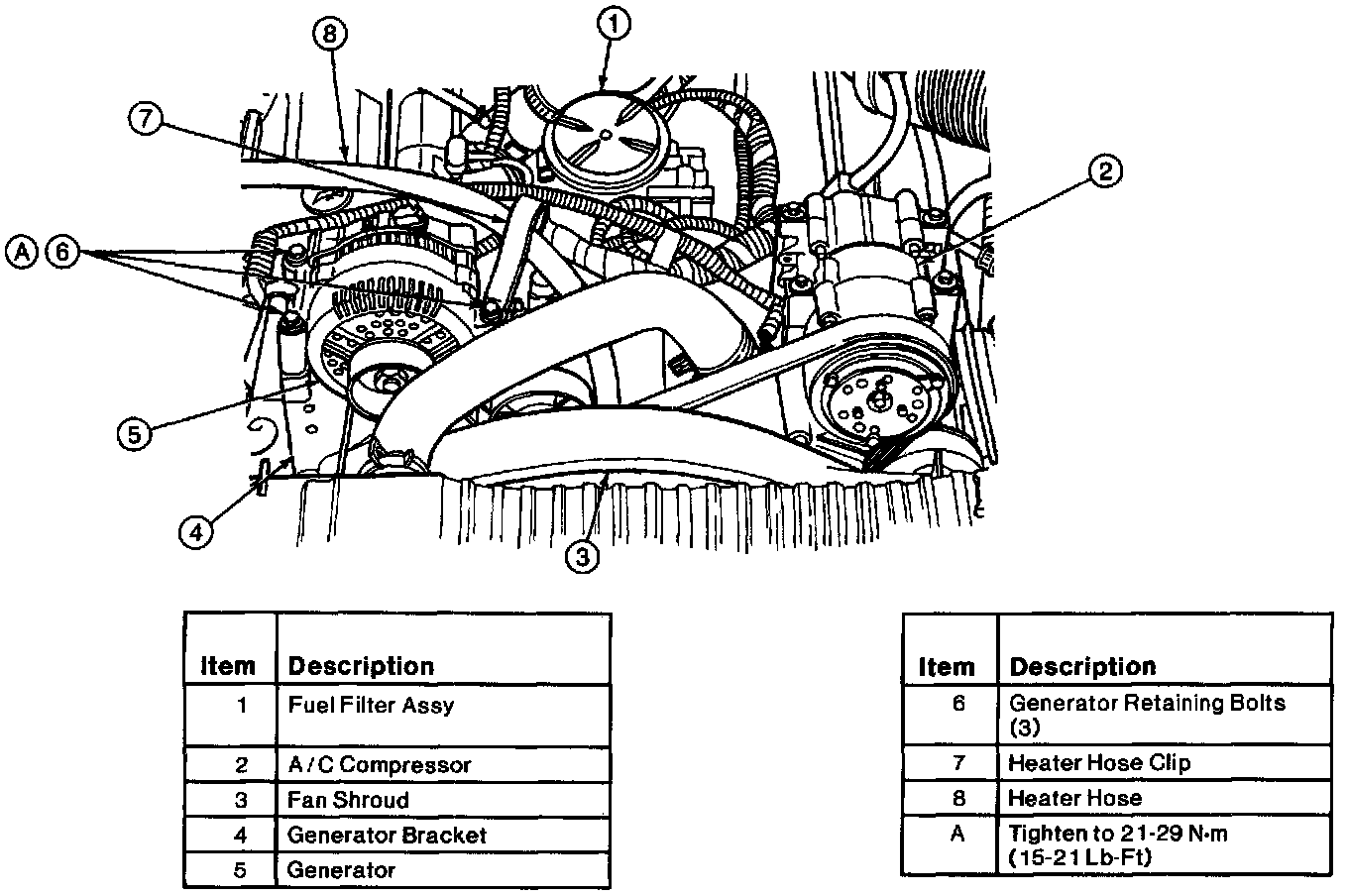

REMOVAL
1. Disconnect battery ground cable.
2. Disconnect electrical connectors from generator (GEN).
3. Remove drive belt.
4. Remove generator retaining bolts (3).
5. Remove generator.

INSTALLATION
1. Install generator.
2. Install generator retaining bolts (3). Tighten bolts to 21-29 N.m (15-21 lb-ft).
3. Install drive belt.
4. Connect electrical connectors to generator.
5. Connect battery ground cable.

NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the powertrain control module (PCM) relearns its adaptive strategy. The vehicle may need to be driven 16km (10 miles) or more to relearn the strategy.
