Power Window Switch: Service and Repair

REMOVAL

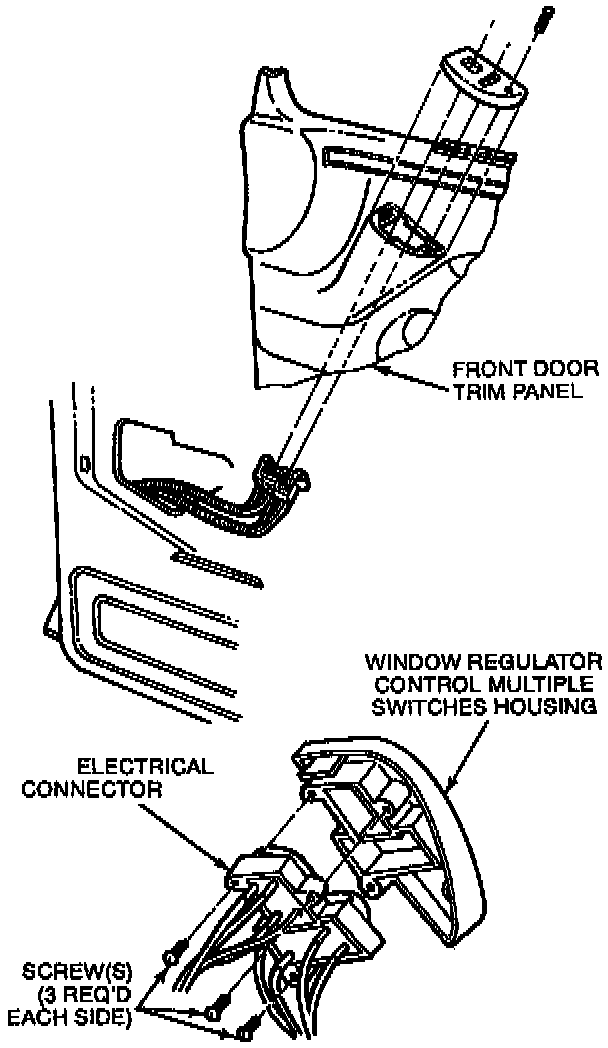

1. Remove the screw holding the window regulator switch housing to the front door trim panel.
2. Insert a small, thin-bladed screwdriver and apply pressure to pry the window regulator switch housing Out of front door trim panel.
3. Remove three connector attaching screws from window regulator switch housing.
4. Remove window regulator control switch by carefully prying window regulator control switch from connector with a small screwdriver.

NOTE: The window regulator control switch is held in place by the electrical contact pins.

INSTALLATION
1. Follow removal procedure in reverse order.

NOTE: The window regulator control switch is keyed to the connector and can only be installed one way.
