Defroster Register






REMOVAL

NOTE: When performing these procedures, use a clean, soft cloth to protect the instrument panel surface.

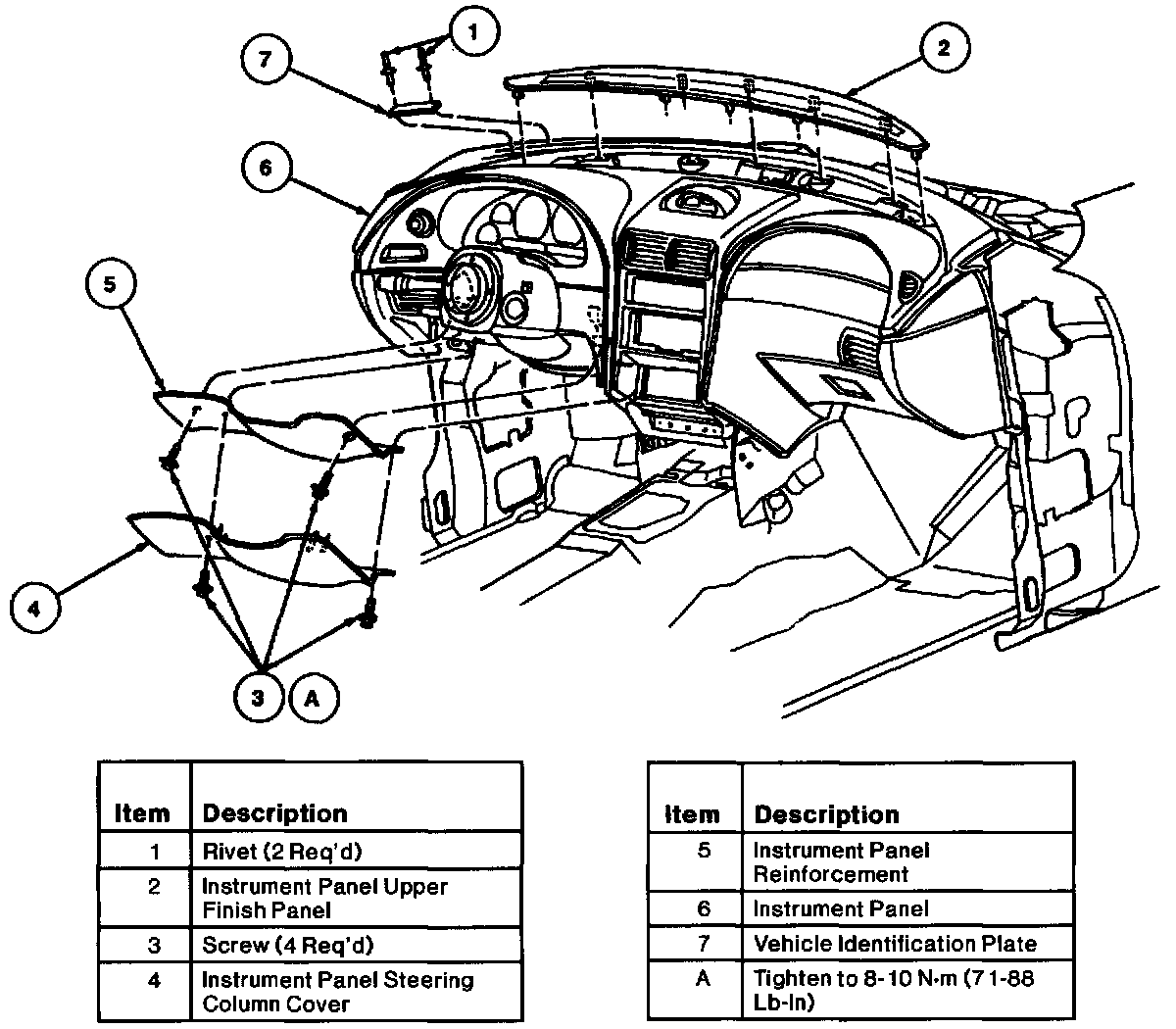

1. Using a putty knife or similar tool, insert under the LH or RH corner of instrument panel upper finish panel. Pry up the instrument panel upper finish panel to release one snap clip.
2. Unsnap remaining seven clips pulling up by hand, working toward opposite side of vehicle.

INSTALLATION
1. To install, make sure the center locator tab in the middle instrument panel upper finish panel is installed in the slots. Then press down on instrument panel upper finish panel above remaining clips in outward direction to snap in place.
