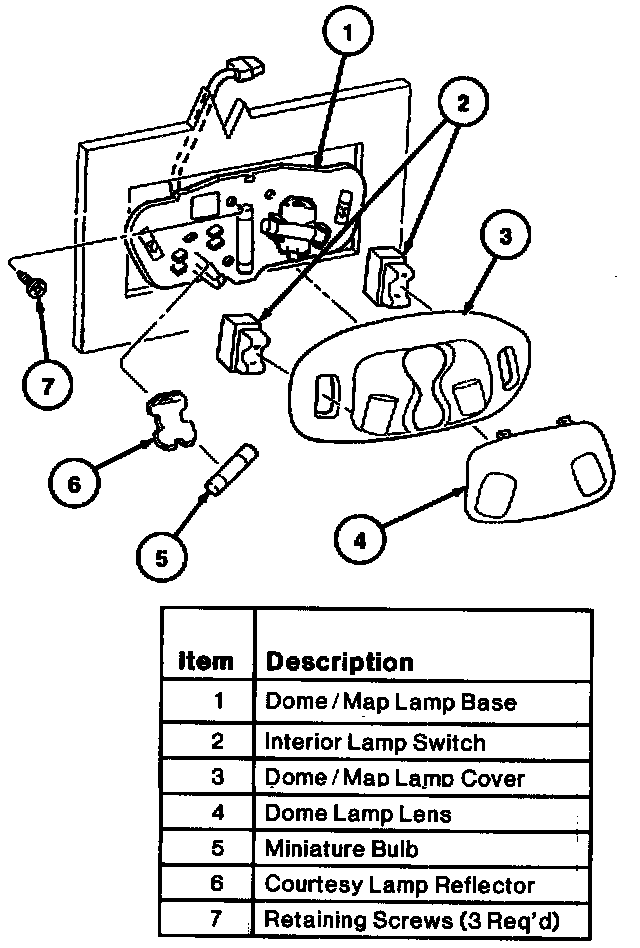

Housing
REMOVAL 1.
Remove pillar/
dome lamp lens with thin-bladed screwdriver.
2.
Remove dome/map lamp cover with thin-bladed screwdriver.
3.
Remove three screws retaining dome/map lamp base.
4.
Pull dome/map lamp base down away from roof headlining.
5.
Disconnect wires to dome/map lamp base and remove dome/map lamp base.
INSTALLATION 1.
Follow removal procedure in reverse order.
