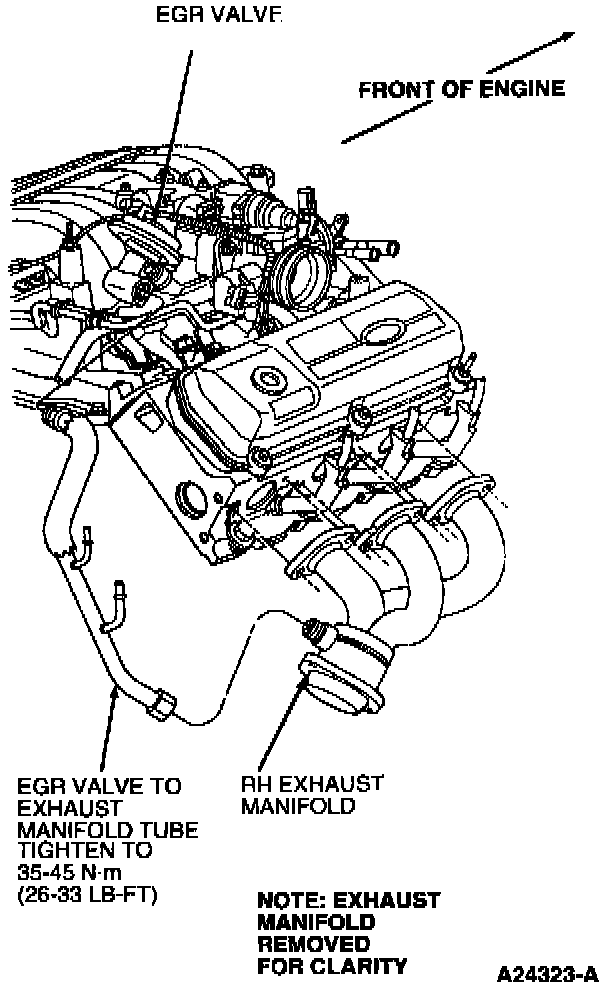

EGR Tube: Service and Repair
REMOVAL 1.
Remove intake air system.
2.
Disconnect
pressure feedback exhaust sensor hoses from
EGR tube.
3.
Disconnect
EGR tube at
EGR valve and EGR tube to manifold connector.
INSTALLATION 1.
Follow removal procedure in reverse order.
2.
Tighten nut retaining
EGR tube to
EGR valve and EGR tube to manifold connector to
35-45 Nm (26-33 lb ft).
