Climate Control Assembly

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the console panel.
3. Remove the instrument panel finish panel.

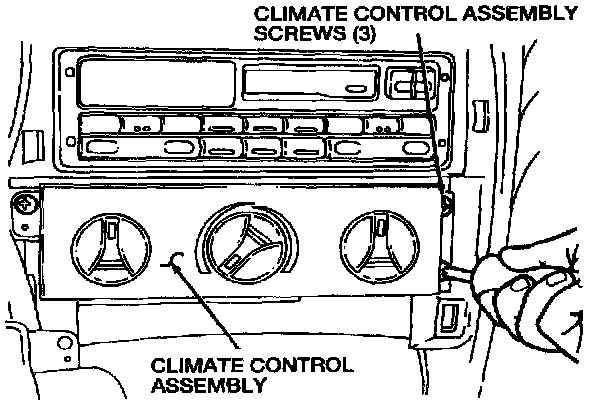

4. Remove the three climate control assembly screws.

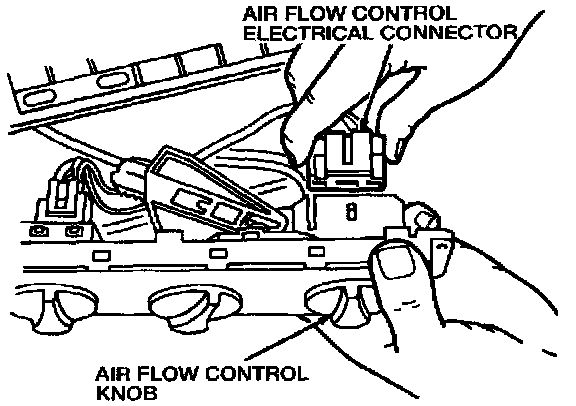

5. Disconnect the air flow control electrical connector.
6. Remove the two air flow control vacuum harness nuts.

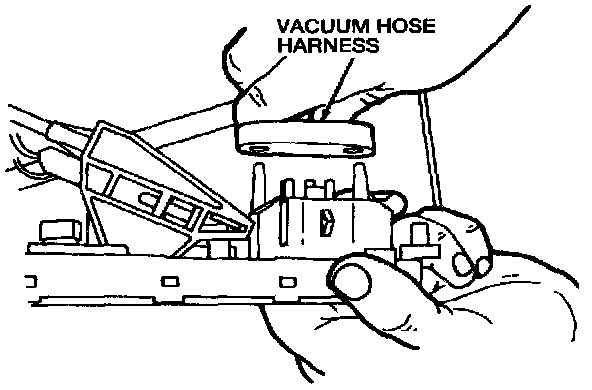

7. Disconnect the vacuum hose harness.




8. Disconnect the blower motor control electrical connector.

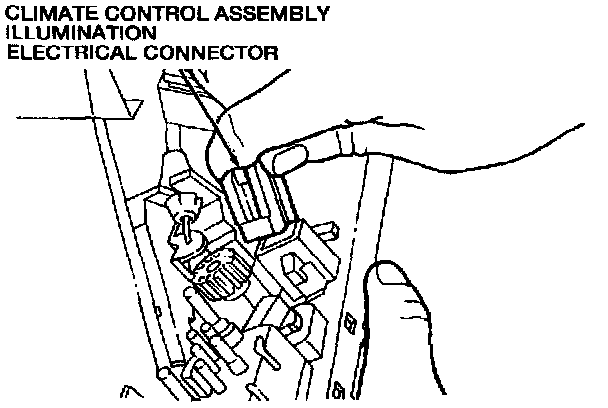

9. Disconnect the climate control assembly illumination electrical connector.




10. Disengage the A/C temperature control cable clip from the climate control assembly.




11. Remove the A/C temperature control cable from the temperature control switch.

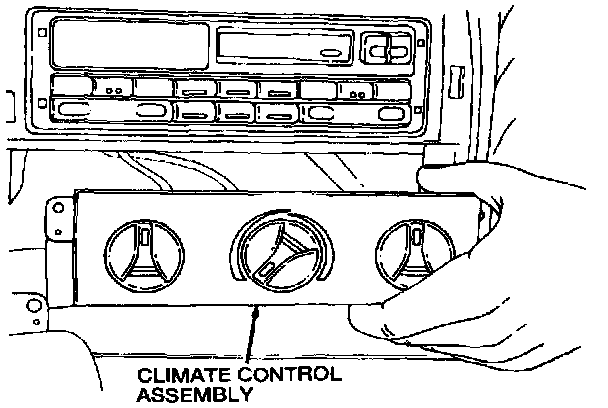

12. Remove the climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
