Switch Knobs

The climate control assembly switch knobs are the blower motor control knob, the air flow control knob, and the temperature control knob.




REMOVAL

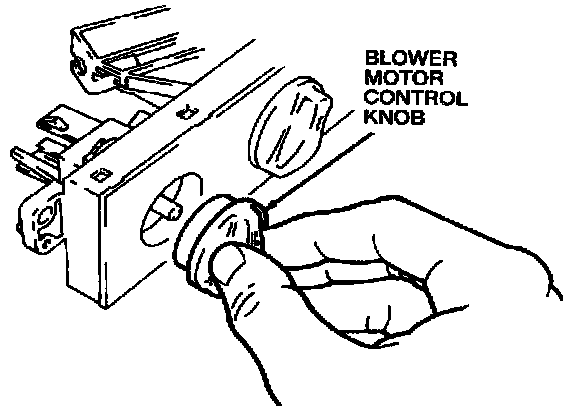

1. Grasp the desired climate control assembly switch knob and pull it off of the switch knob shaft.

INSTALLATION
1. Align the flat on the insert in the climate control assembly switch knob with the flat on the climate control switch knob shaft.
2. Push the climate control assembly switch knob onto the climate control switch knob shaft.
