Cylinder Head Assembly






TORQUE SPECIFICATIONS

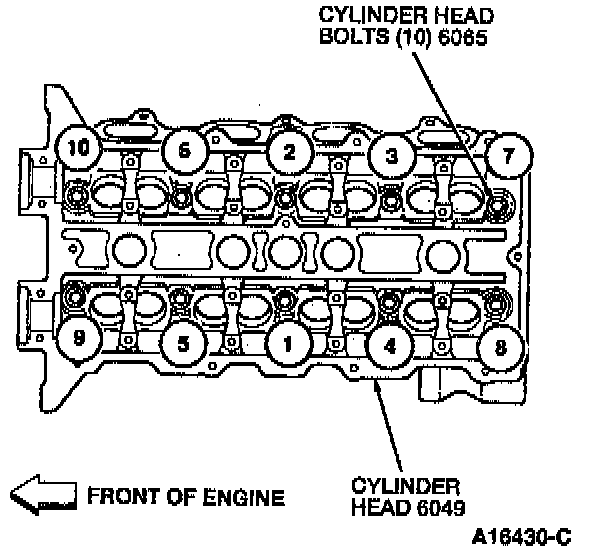

Tighten the cylinder head bolts in two steps in sequence:
Step 1: 18-22 Nm (13-16 ft. lbs.)
Step 2: Turn an additional 90 ± 5 degrees
