Window Track: Service and Repair
REMOVAL 1.
Remove the front door
window glass and channel.
2.

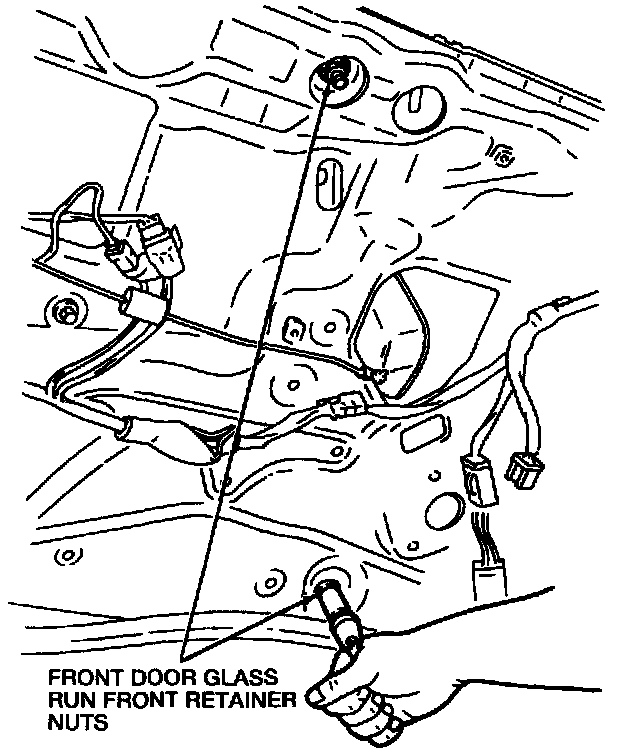

Remove the two front door glass run front retainer nuts.
3.

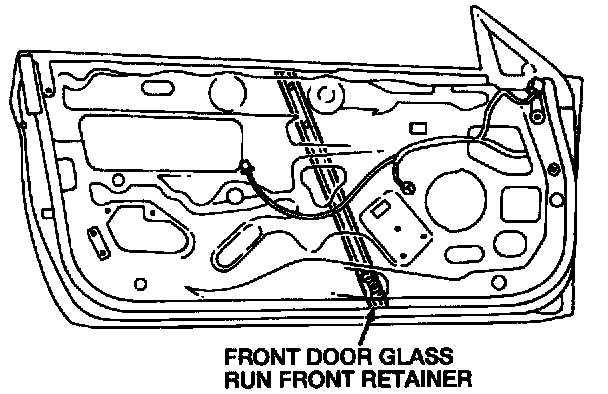

Remove the front door glass run front retainer through the service hole.
INSTALLATION To install, reverse the removal procedure.
Tighten the front door glass run front retainer nuts to
19-25 Nm (16-18 Lb-Ft).
