Front Door Window Regulator: Service and Repair

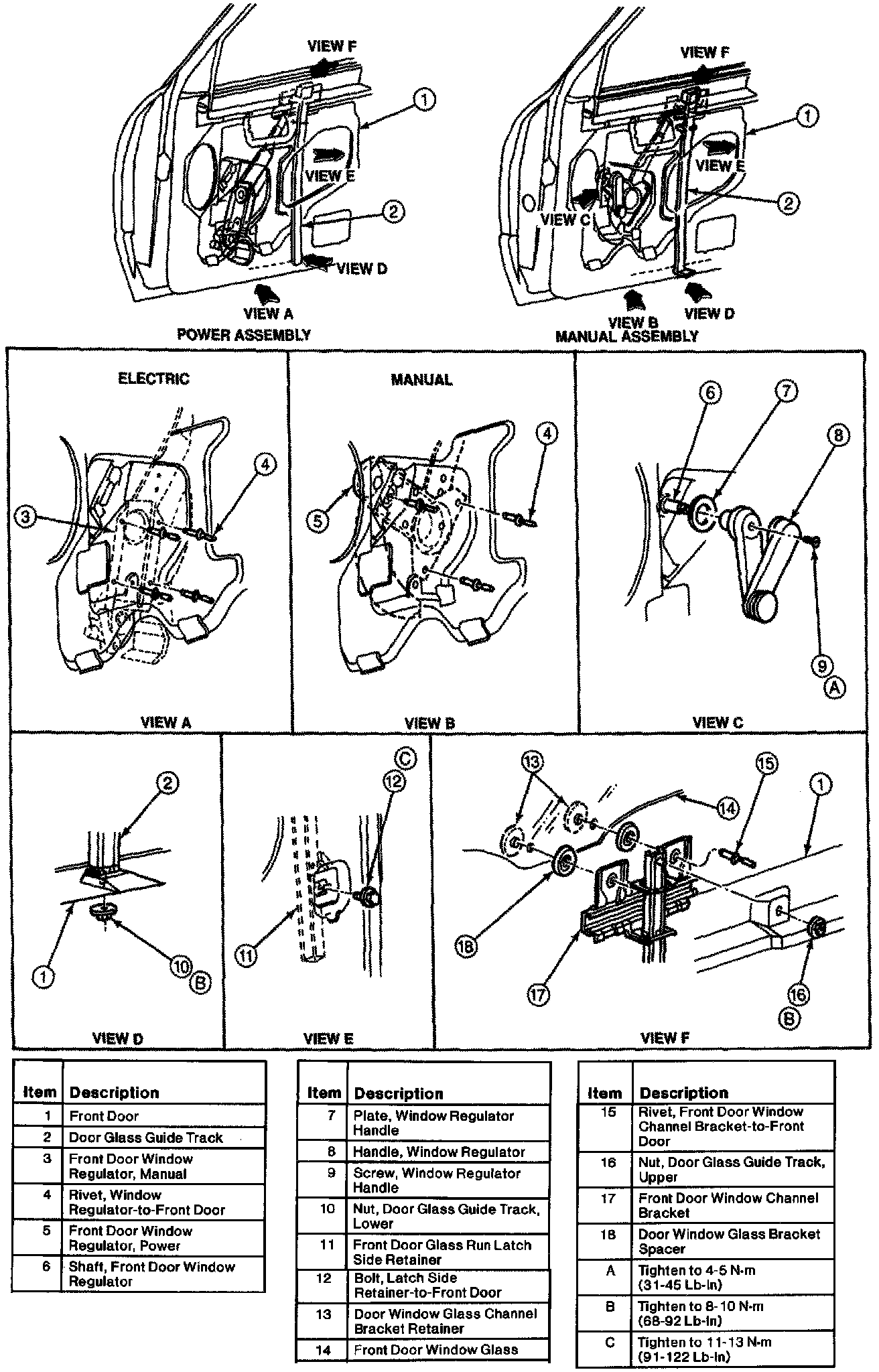

REMOVAL
1. If removing a power window regulator, disconnect the battery ground cable.
2. Remove the front door window glass.
3. If equipped, disconnect the window regulator electric drive from the door wiring.
4. Drill out the window regulator-to-front door rivets (three for manual, five for electric).
5. Remove the upper and lower door glass guide track-to-front door nuts.
6. If removing the power window regulator, remove the window regulator electric drive and the power window regulator as an assembly.
7. Remove the window regulator from the vehicle.
8. If necessary, remove the window regulator electric drive from the power window regulator.

INSTALLATION
To install, use new rivets (or equivalent threaded fasteners), and reverse the removal procedure. Tighten window regulator fasteners to 11-13 Nm (91-122 Lb-In).
