Timing Cover

Wiring Bracket Nut: 8-12 Nm (71-106 inch lbs.)
Retaining Bolts:

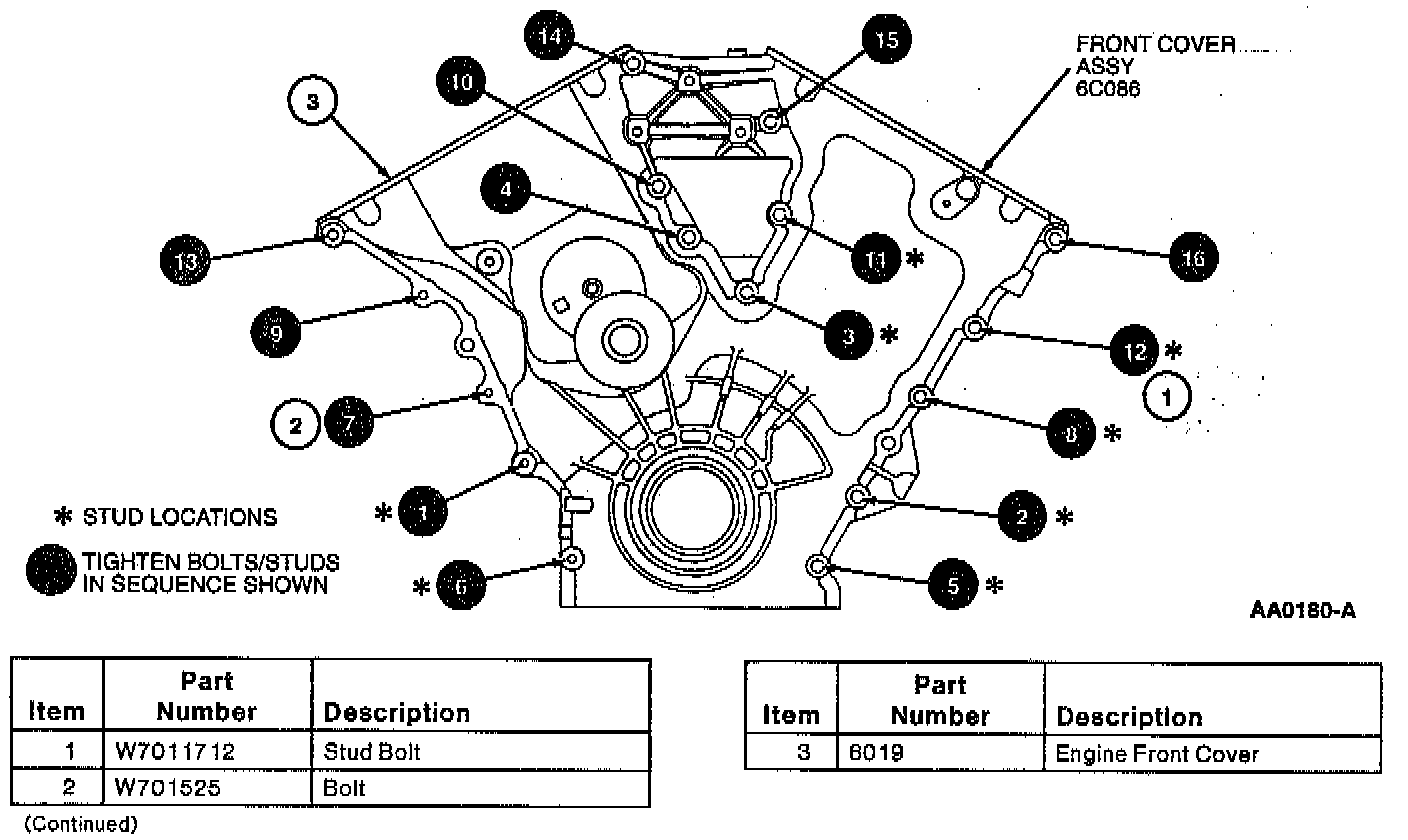

Step 1: Install engine front cover retaining bolts and stud bolts in locations and sequence as shown finger tight then a quarter turn (90°).
Step 2:Install remaining engine front cover retaining bolts and stud bolts.





Step 3: Tighten all engine front cover retaining bolts and stud bolts in sequence shown to 20-30 Nm (15-22 ft. lbs.).
