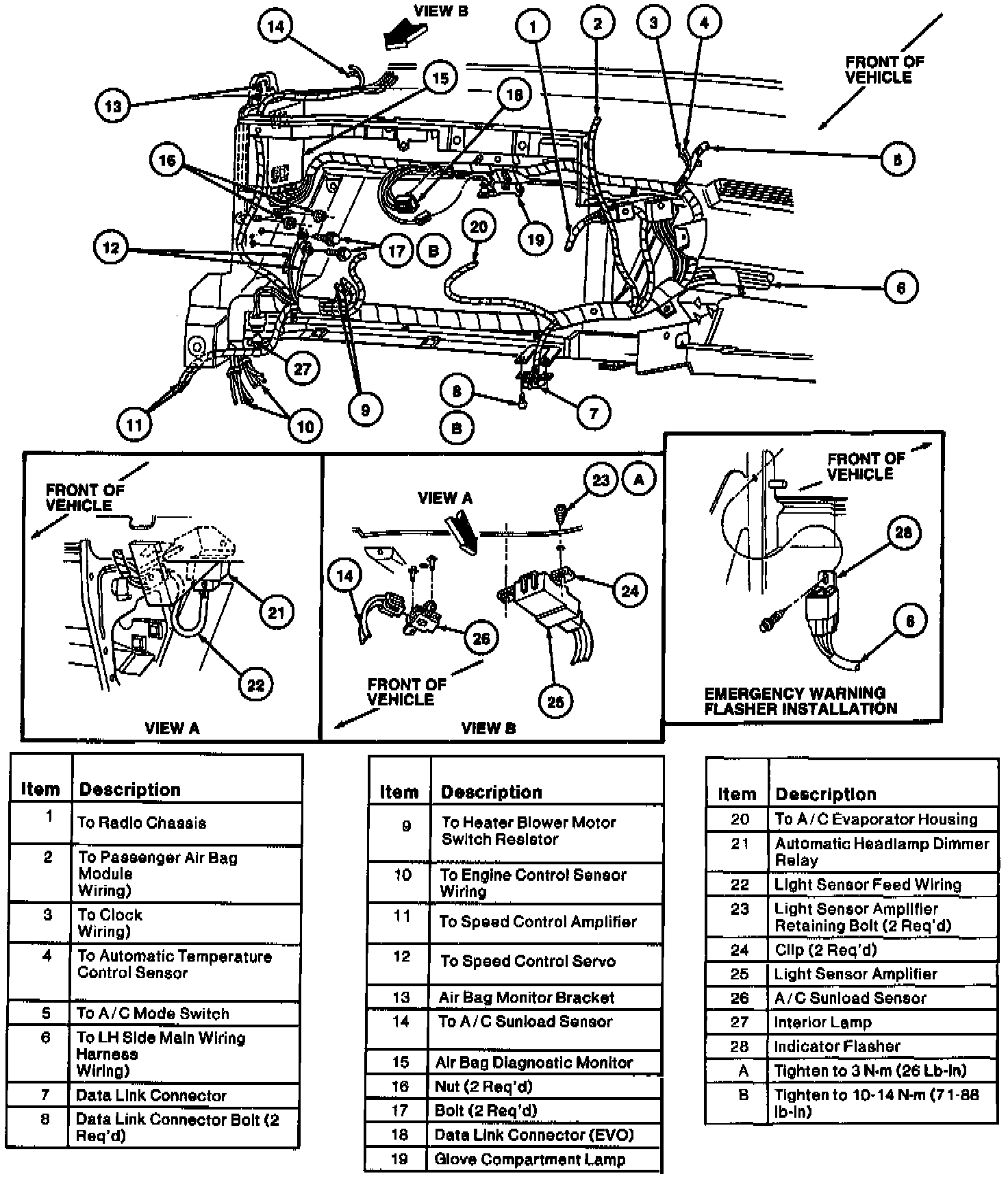

Ambient Light Sensor: Service and Repair
REMOVAL 1.
Remove the LH instrument panel upper finish panel (snaps out).
2.
Unscrew the two screws retaining the
light sensor amplifier to upper instrument panel.
3.
Remove the wiring connector from
light sensor amplifier.
INSTALLATION 1.
Follow removal procedure in reverse order.
2.
Tighten retaining screws to
3 Nm (26 Lb-In).
