General Module: Service and Repair

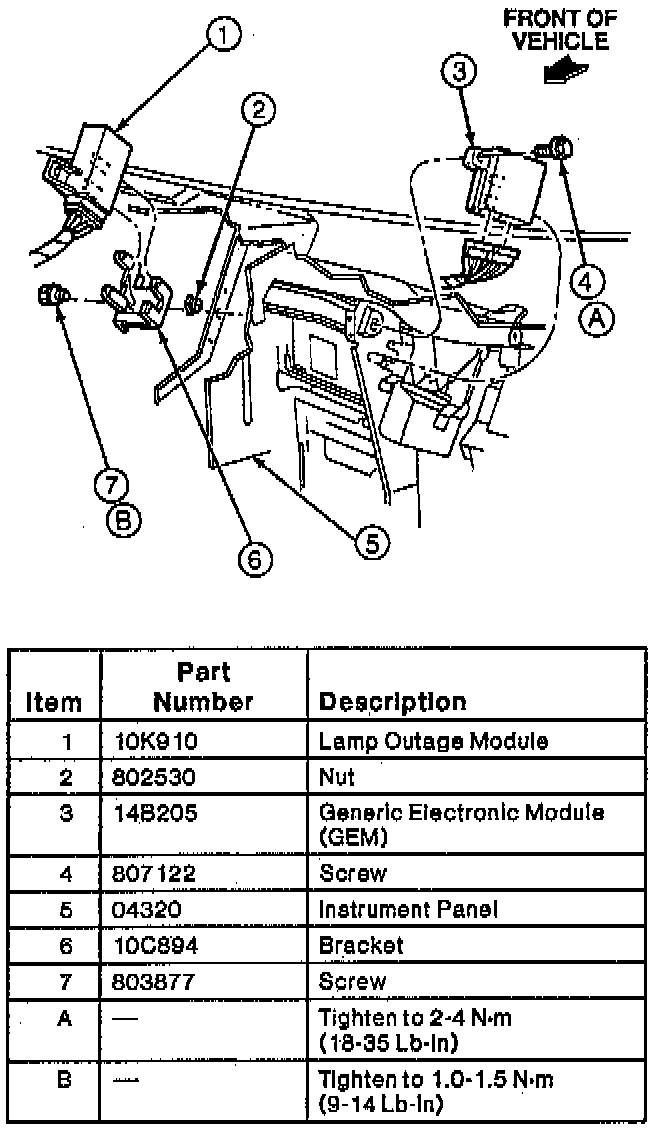

REMOVAL
1. Remove storage bin.
2. Remove screw retaining generic electronic module (GEM).
3. Disconnect three electrical connectors.
4. Remove GEM.

INSTALLATION
1. To install, reverse removal procedure
