Left

REMOVAL
1. Remove instrument panel ash receptacle by pulling service lever downward.
2. Remove two instrument panel finish retaining screws over instrument panel ash receptacle cavity.

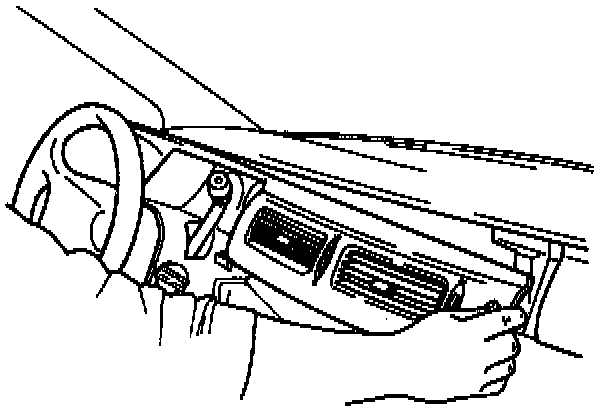

3. Remove instrument panel finish panel by grasping the edges and pulling outward until retaining clips release panel.

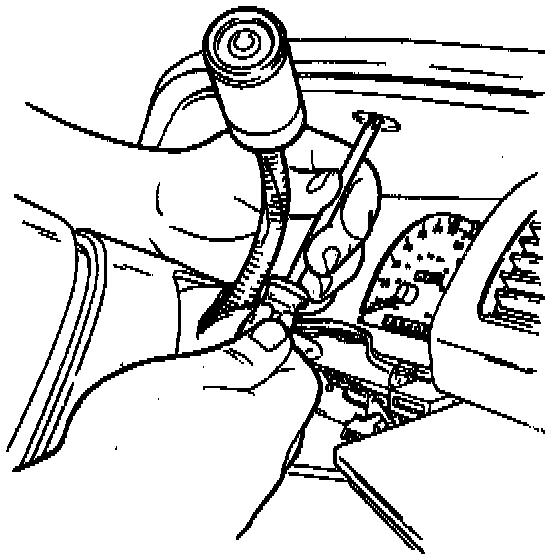

4. Remove headlamp switch knob.
5. Remove headlamp switch knob bezel by pulling outward until retaining clips release.

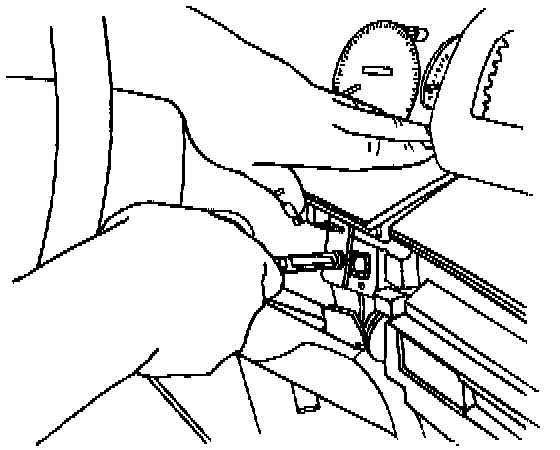

6. Remove two screws retaining upper steering column instrument panel finish panel and remove panel.







7. Remove two screws retaining instrument panel cluster finish panel.







8. Carefully pull instrument panel cluster finish panel outward until retaining clips release.

INSTALLATION
1. To install, reverse Removal procedure.
