Climate Control Assembly Switch
REMOVAL 1.
Remove climate control assembly from instrument panel.
2.
Remove knob.
3.

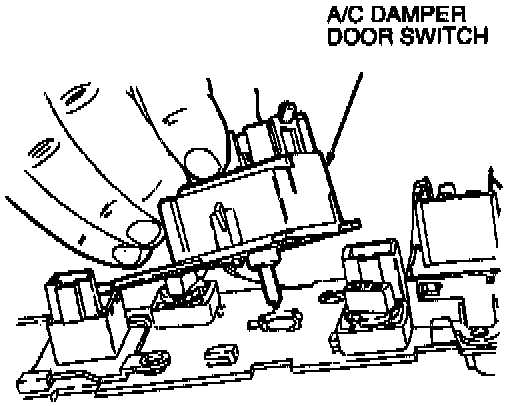

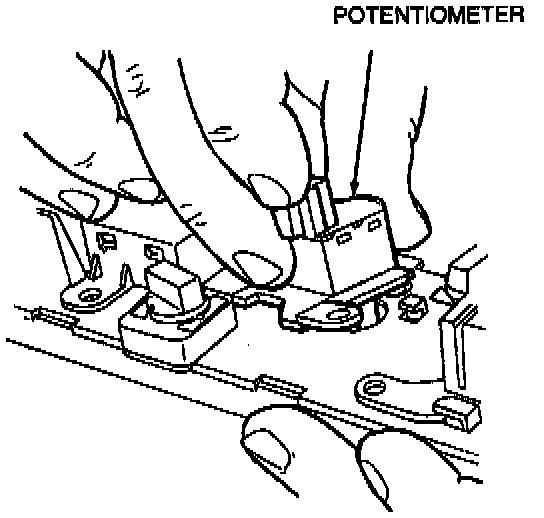

Disconnect electrical connector from potentiometer or electrical connector and vacuum hose harness from A/C damper door switch.
4.
Remove retaining screw.
5.
Rotate climate control assembly switch counterclockwise, lift and remove.
INSTALLATION 1.
To install, reverse Removal procedure.
