Exhaust Gas Recirculation: Description and Operation

PURPOSE
The Exhaust Gas Recirculation (EGR) system is a subsonic, closed loop Differential Pressure Feedback (DPFE) EGR system.

It is designed to:
- reintroduce exhaust gas into the combustion cycle.
- lower combustion temperatures.
- reduce the formation of Oxides of Nitrogen (NOx).

OPERATION

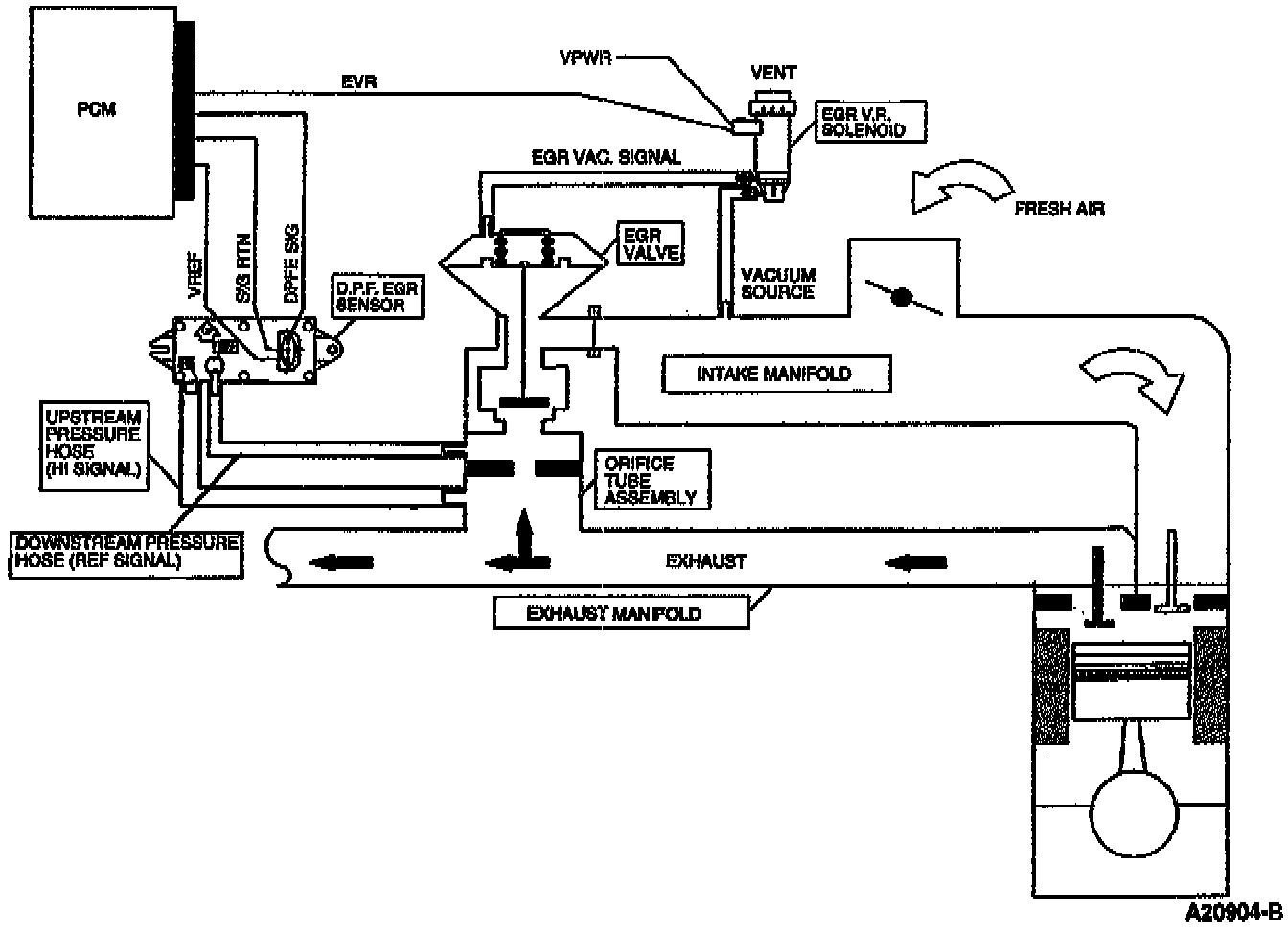

The differential pressure feedback EGR system:
- monitors EGR flow rate by the pressure drop across the metering orifice.
- uses an EGR backpressure transducer as the feedback device.
- controlled pressure is varied by the valve movement using vacuum output of the EGR vacuum regulator solenoid.
- uses the EGR valve only as a pressure regulator rather than as a flow metering device.
- allows for a more accurate assessment of EGR flow requirements.

CONTROLS
The amount of exhaust gas reintroduced and the timing of the cycle are controlled by:
- engine rpm.
- engine vacuum.
- exhaust system back pressure.
- engine coolant temperature.
- throttle position.
