Front Windshield Wiper/Washer Switch Function Test

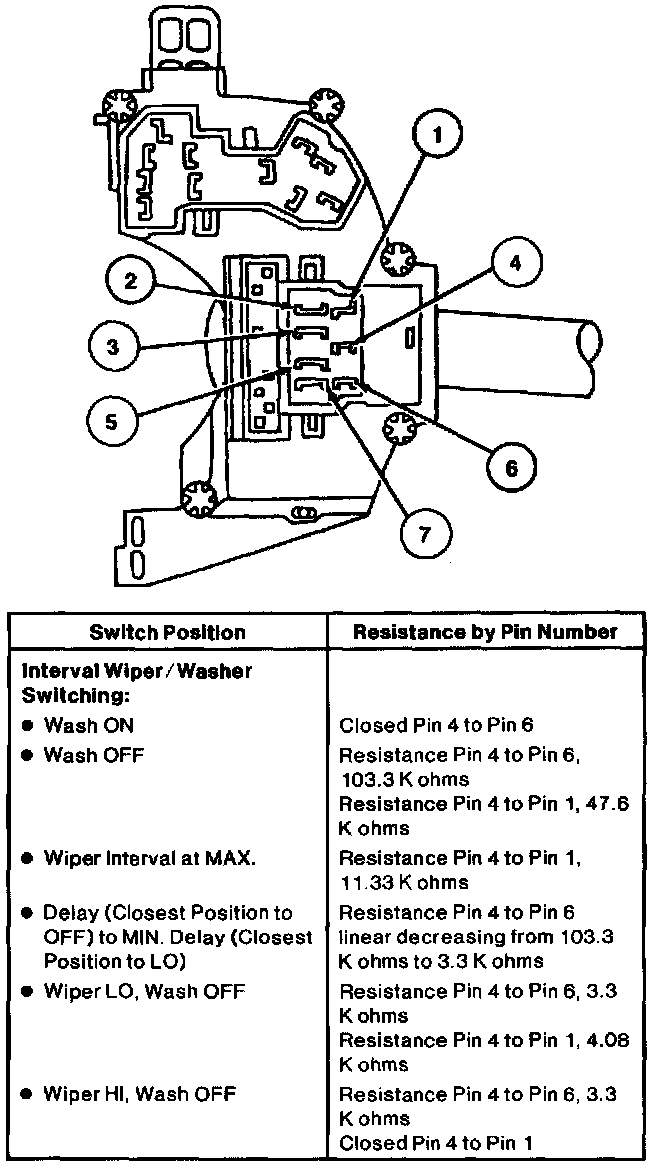

Refer to the provided illustration to resolve concerns with the multi-function switch and wiper and washer switch circuits.
Testing should be done with an ohmmeter such as Rotunda Digital Volt Ohmmeter 014-00407 or equivalent.
NOTE: Terminals 1, 4 and 6 are the only ones used for this test.
