Behind Instrument Panel Views

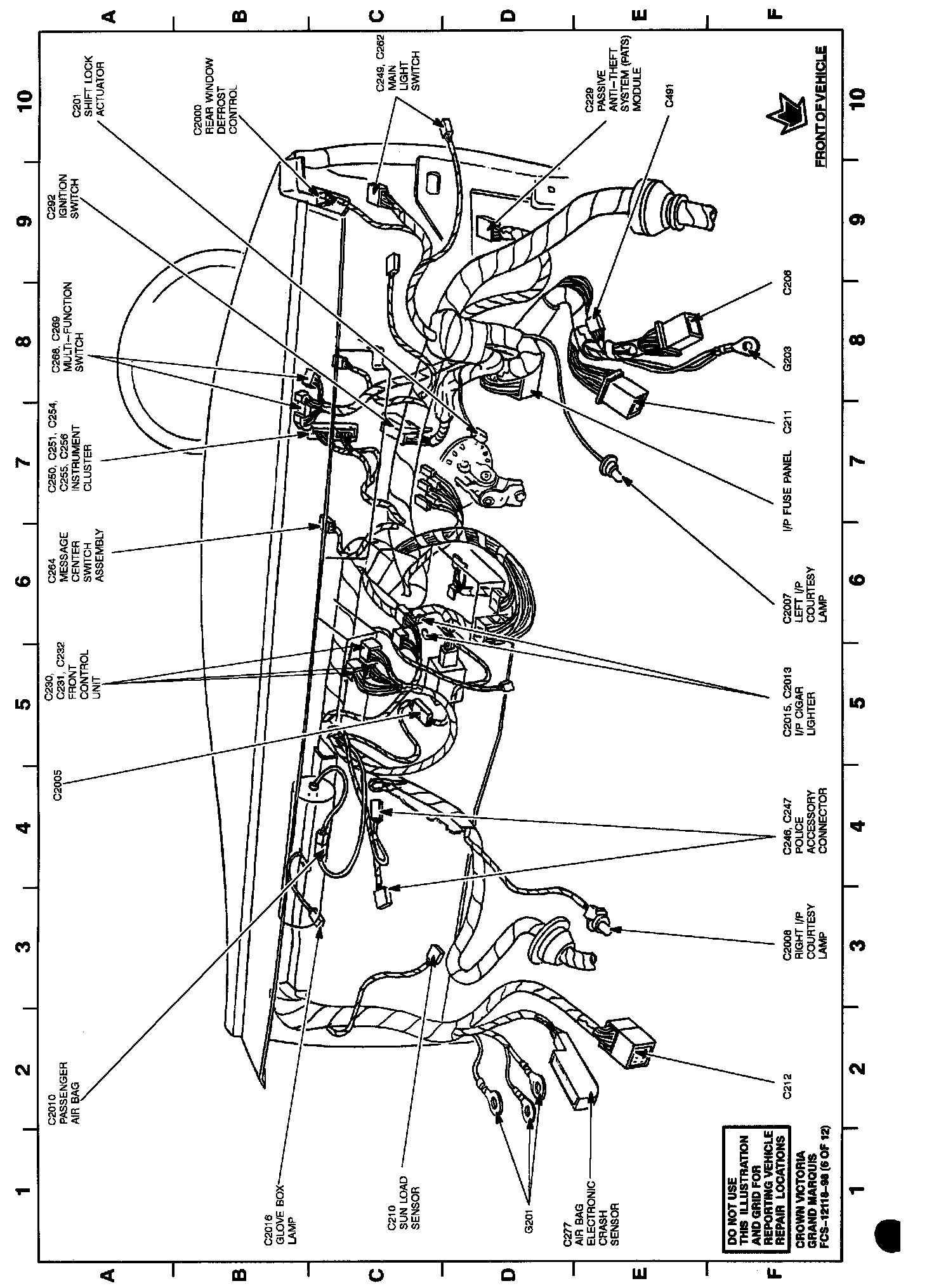

Instrument Panel View:
The Lighting Control Module is located behind LH side of the instrument panel.
Multi Function SwitchThe Turn Signal Flasher output is provided by the Lighting Control Module, which is located behind the LH side of the instrument panel. There are no separate relays for Turn Signal Flasher output aside from the LCM.
