D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor

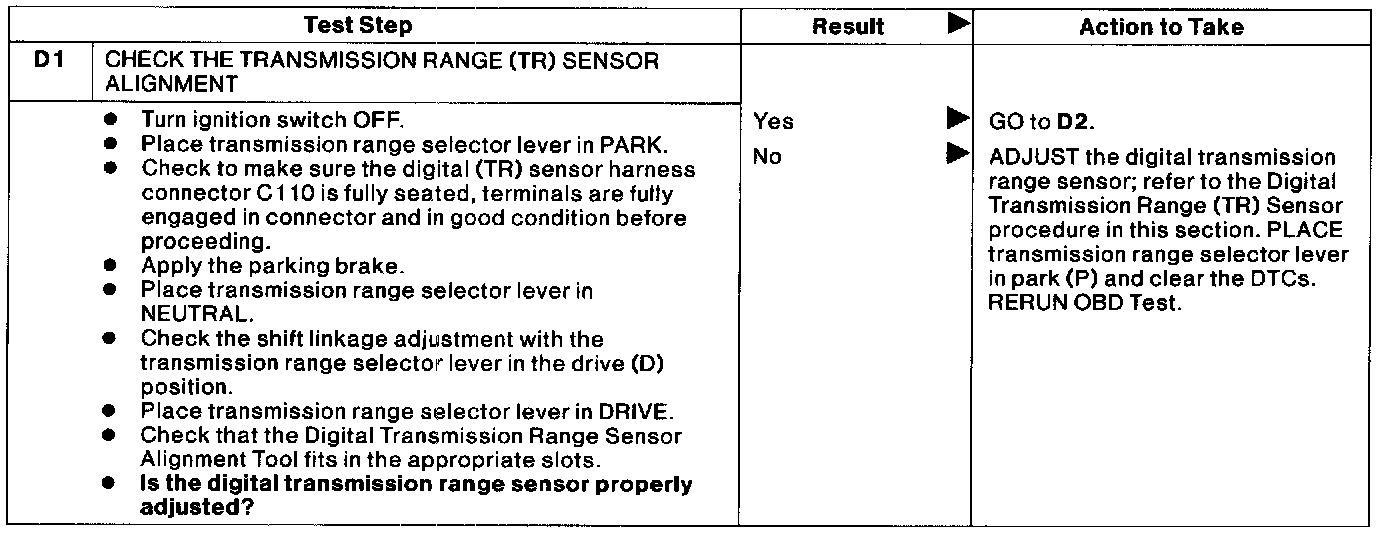

Test D1:

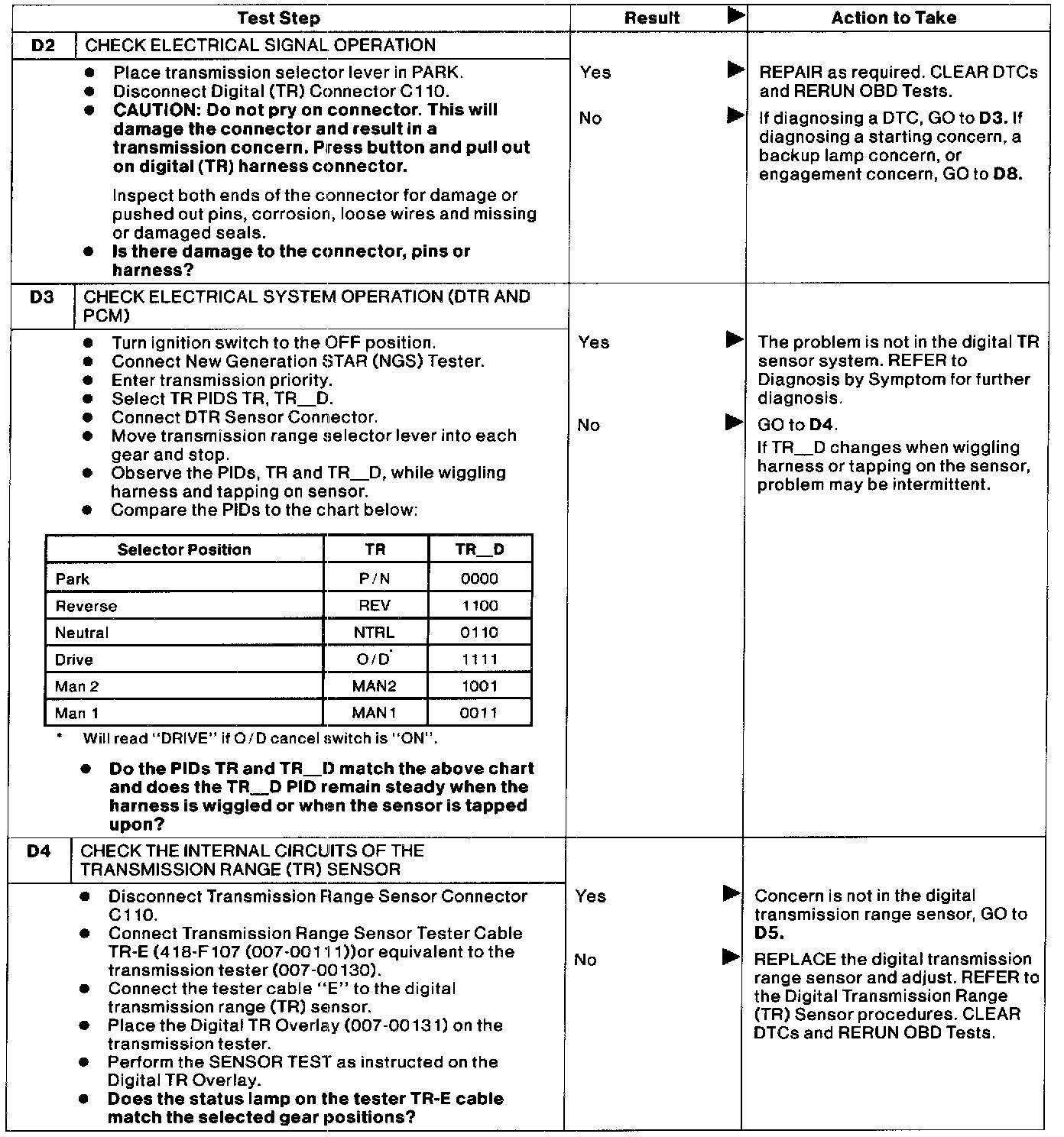

Test D2 - D4:

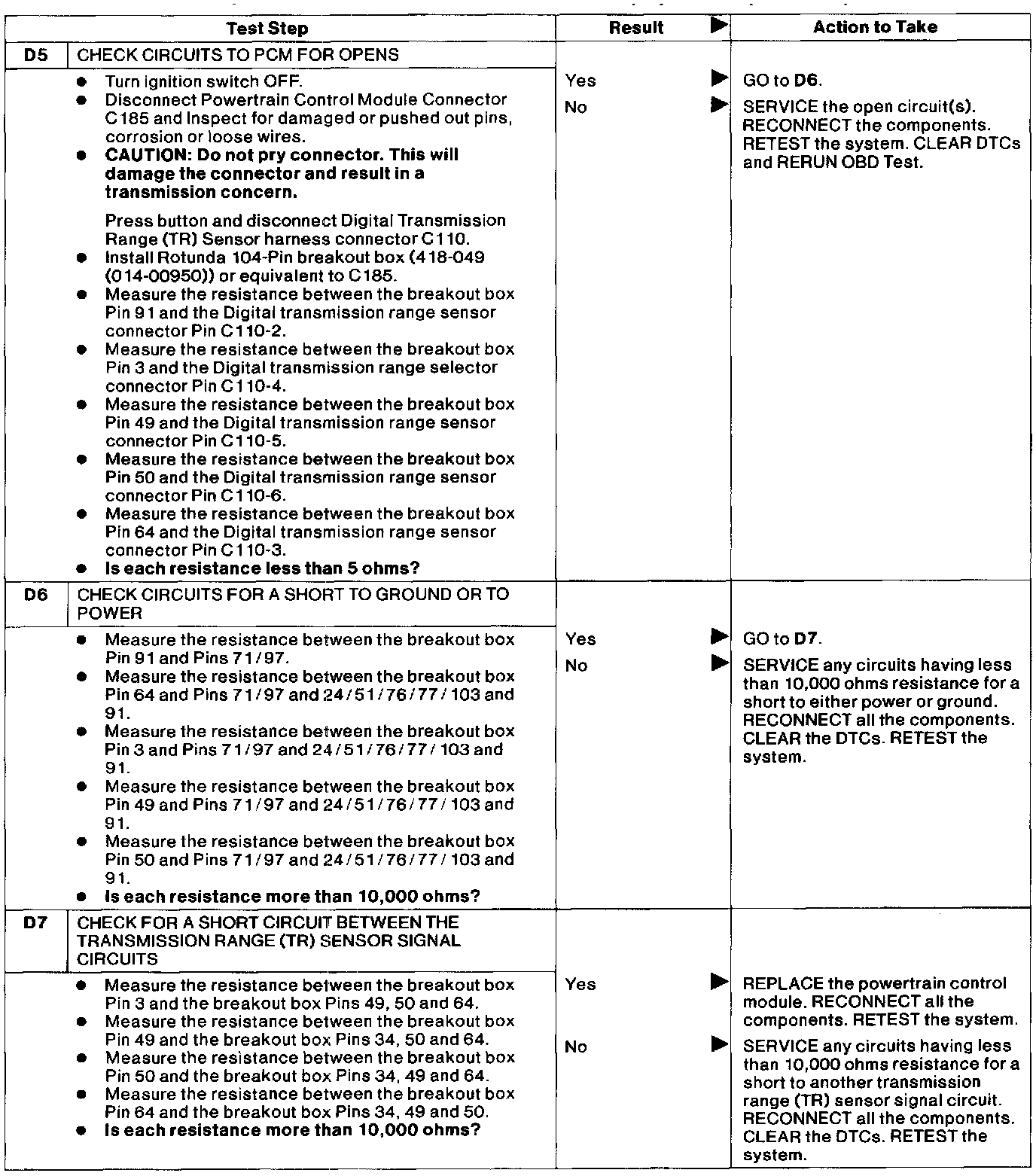

Test D5 - D7:

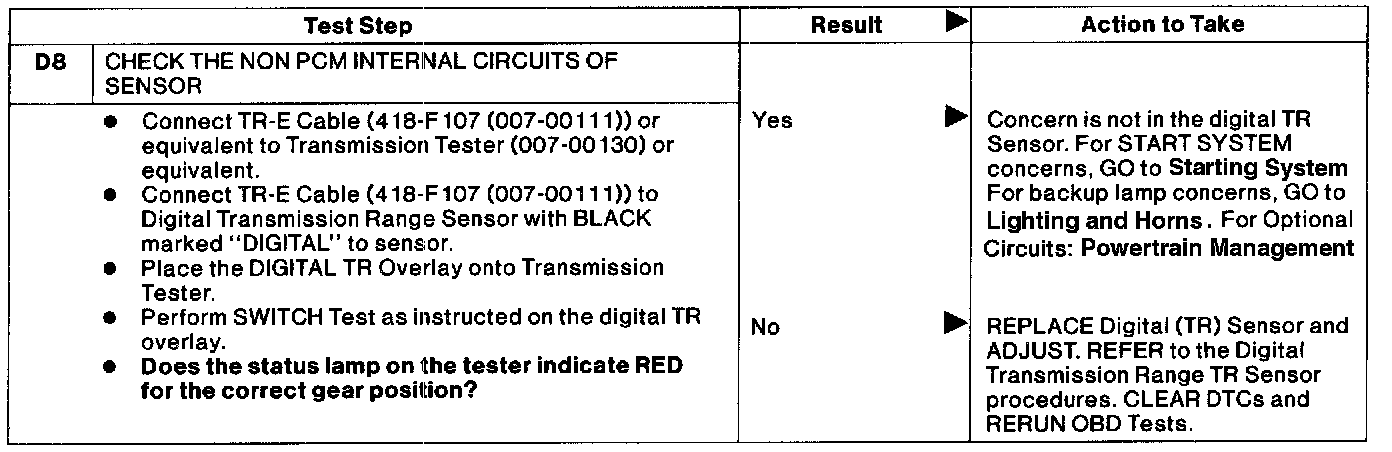

Test D8:
NOTE: Refer to the Digital Transmission Range Sensor Connector Illustration in Diagrams.
Digital Transmission Range Sensor Connector (C168/C110)
