Instrument Panel Control Module: Description and Operation

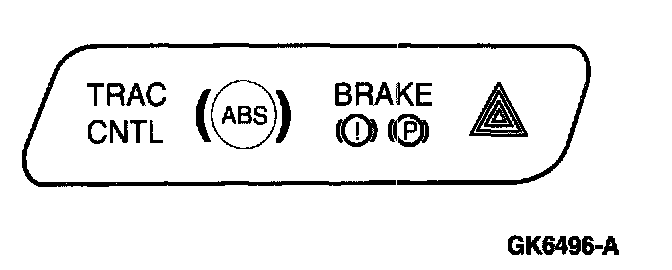

The indicator lamp module system consists of:
- Indicator lamp module.
- ABS indicator.
- Hazard warning indicator.
- Brake warning indicator.
- Traction control indicator.

The indicator lamp module informs the driver:
- When anti-lock brake system concern exists.
- When brake fluid level is low or the parking brake is engaged.
- When hazard flashers are operating.
- When a traction control event exists (indicator flashes).
- When the traction control system is disabled (indication ON steady).
