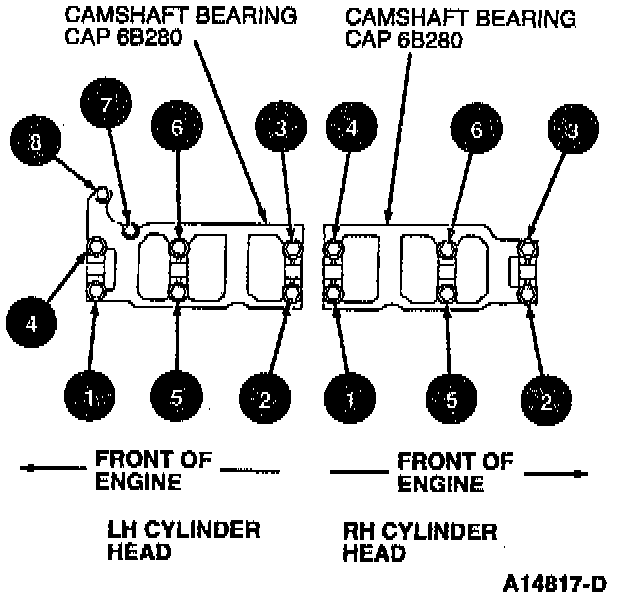

Camshaft Bearing

GENERAL SPECIFICATIONS
Bearing Inside Diameter (All): 27.012-26.987 mm (1.06346-1.062478 inches)






TORQUE SPECIFICATIONS
Camshaft Bearing Cap to Cylinder Head: 8-12 Nm (71-106 Inch Lbs.)
