EGR Tube: Service and Repair

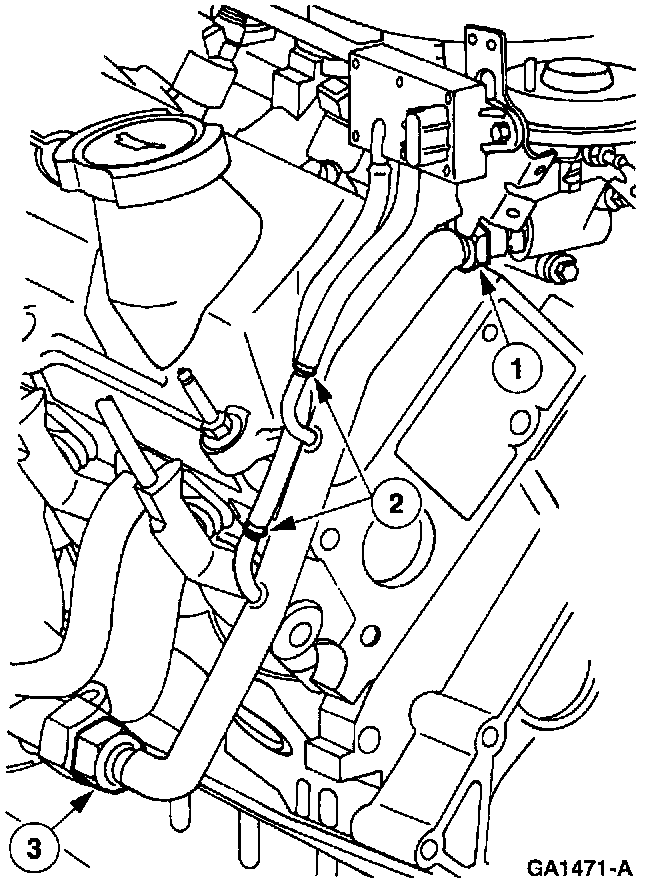

REMOVAL

1. Remove the EGR valve to exhaust manifold tube.
1. Disconnect the exhaust manifold tube at the EGR valve.
2. Remove the EGR back pressure transducer tubes.
3. Remove the EGR valve to exhaust manifold lower tube fitting and the exhaust manifold tube.

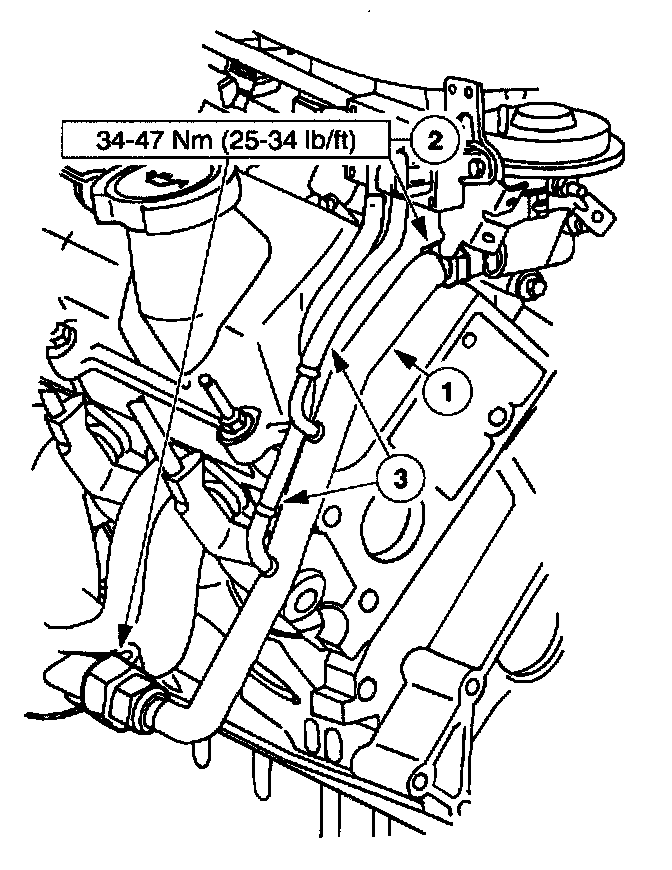

INSTALLATION
1. Install the EGR to exhaust manifold tube.
1. Position tube.
2. Connect upper and lower tube fittings.
3. Connect the differential pressure feedback EGR hoses.
