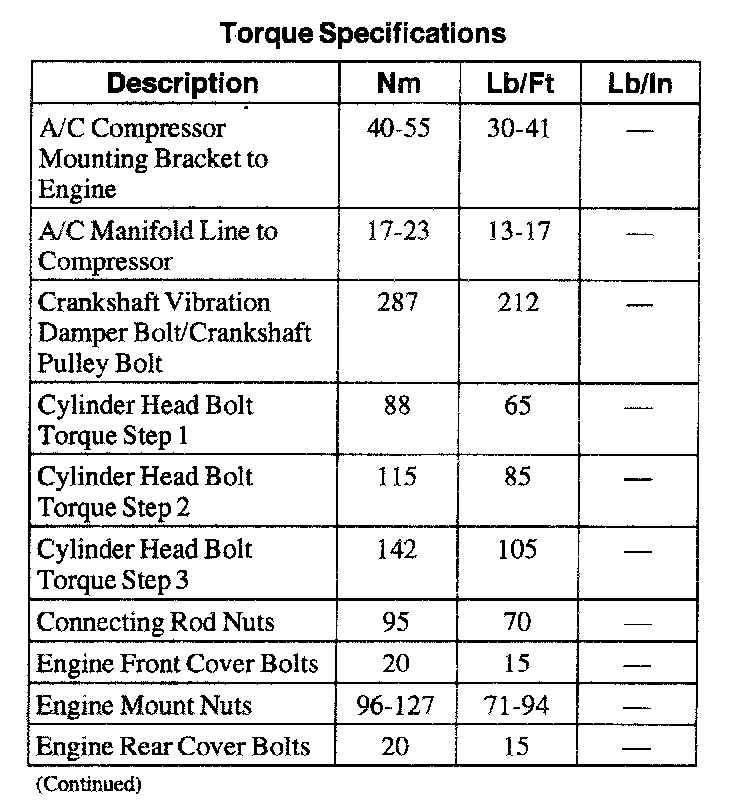

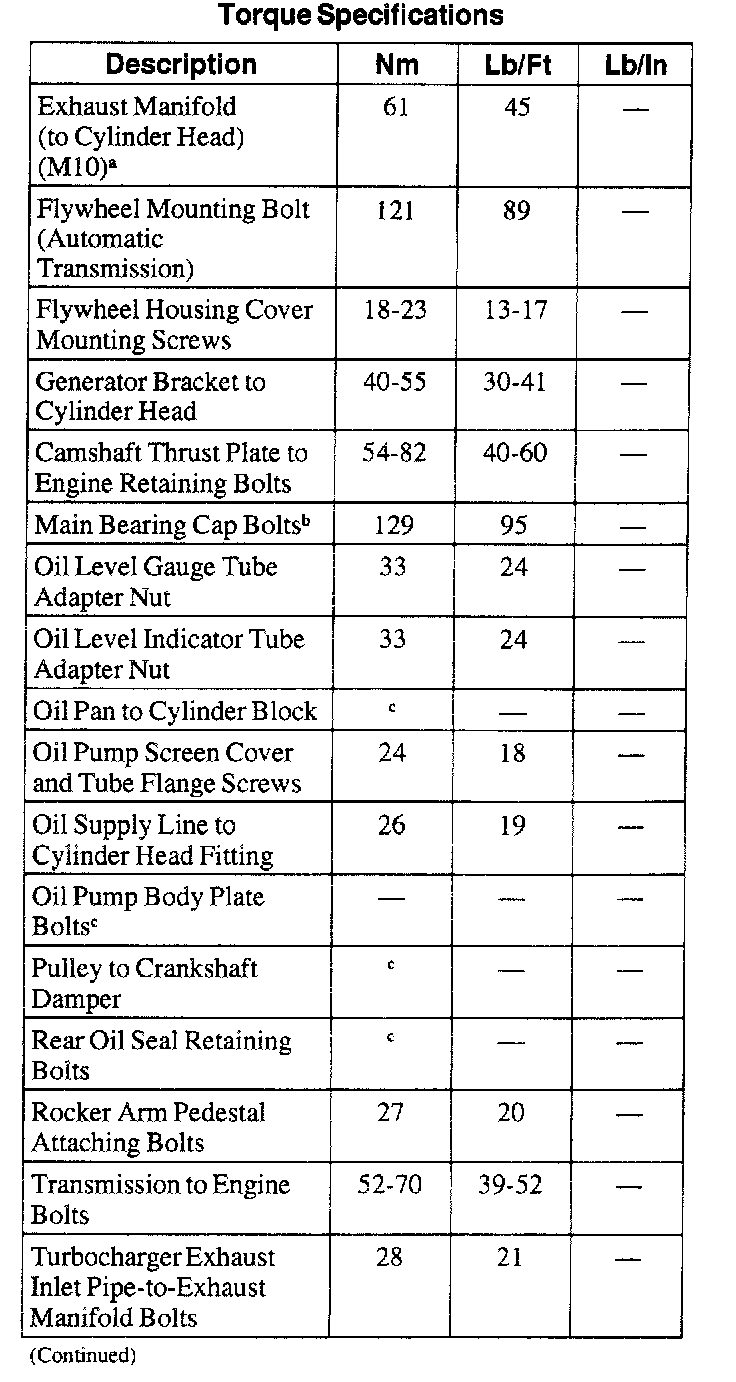

Torque Specifications
a
Apply Threadlock� and Sealer EOAZ-19554AA or equivalent meeting Ford specifications WSK-M2G351A5 and ESE-M4G204A2 to all threads prior to assembly.
b
Tighten four main bearing cap bolts to
102 Nm (75 lb/ft) before final torque is applied.
c
Refer to Standard Torque - English or Standard Torque - Metric chart in the Specifications portion of this section.
