Seat-Rear Cushion

DISASSEMBLY

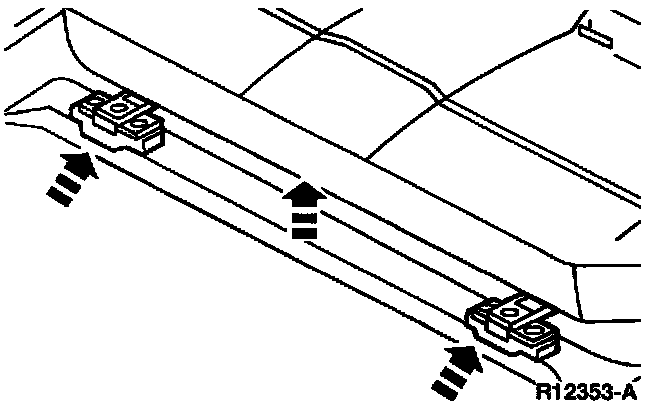

1. Press the rear seat cushion locks and remove the rear seat base.

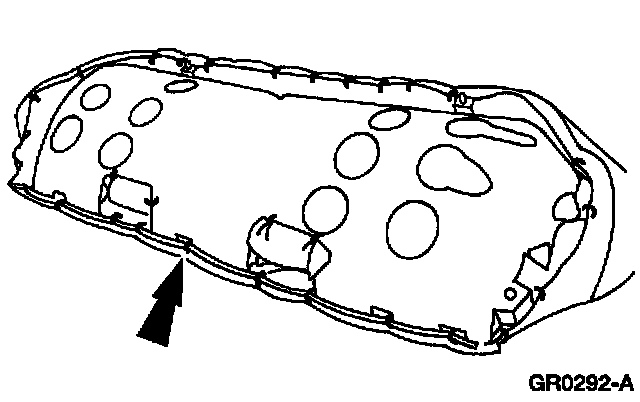

2. Remove the 31 hog rings.

3. Remove the rear seat base trim.

CAUTION: Use care when separating the seat cushion trim cover from the hook and loop strips or the hook and loop strips may be torn from the seat cushion foam.

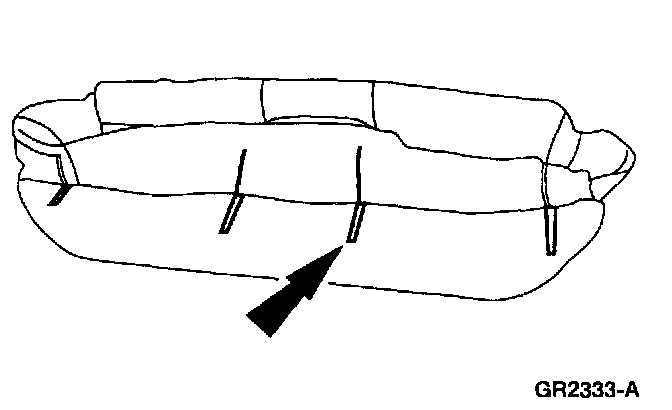

^ Separate the rear seat base trim from the hook and loop strips.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
