Drive Belt: Service and Repair

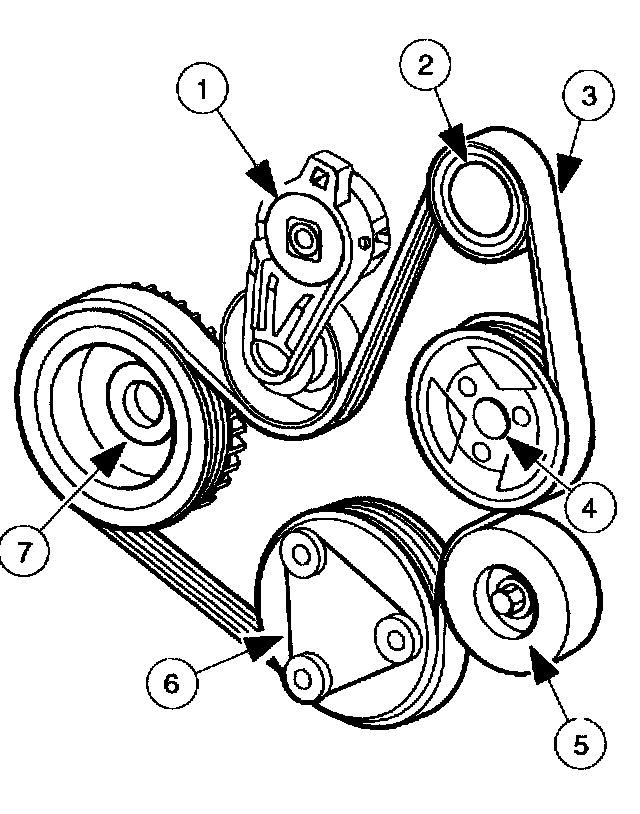

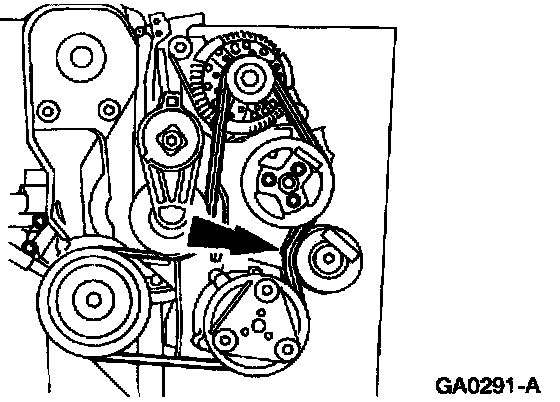

Accessory Drive-With A/C

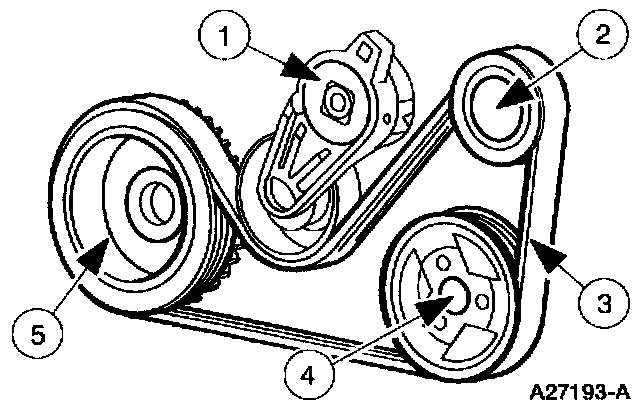

Accessory Drive-Without A/C


REMOVAL





1. Relieve the drive belt tension.

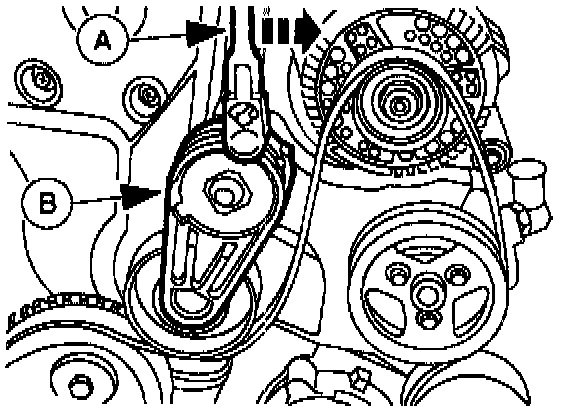

- Use a (A) ratchet or breaker bar inserted in the square hole in the drive belt tensioner flange.
- Rotate the (B) drive belt tensioner in a clockwise motion to release belt tension.





2. Remove the drive belt from the accessory drive belt routing pulley and then the remaining accessory pulleys.

INSTALLATION
1. Position the drive belt over the accessory pulleys. Raise and support the vehicle.
2. Rotate the drive belt tensioner in a clockwise motion.





3. Slip the drive belt under the belt idler pulley and release the tool. Remove the tool from the drive belt tensioner.
