Shift Interlock: Service and Repair
REMOVAL 1.
Remove the transmission control selector dial bezel.
2.

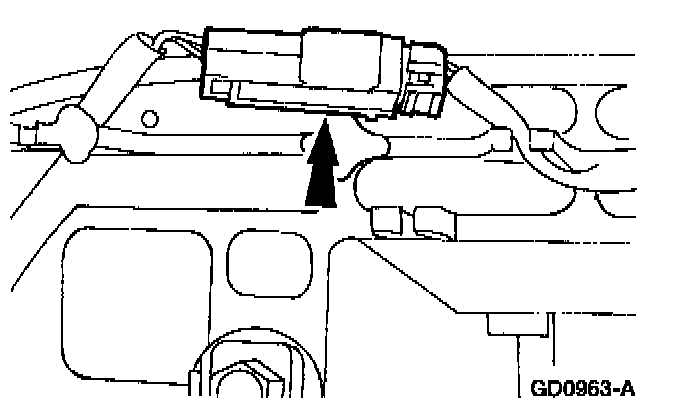

Disconnect the brake shift interlock actuator electrical connector.
3.

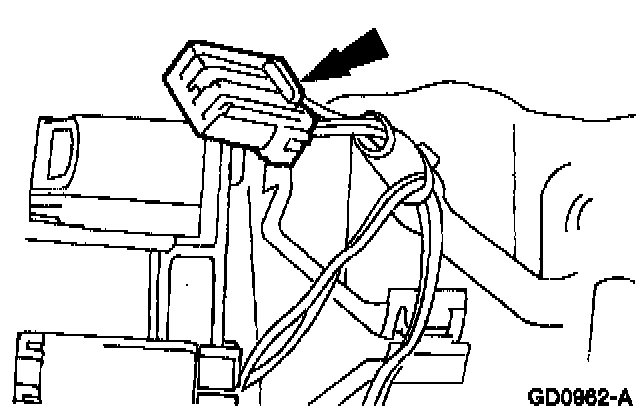

Disconnect the park range switch electrical connector.
4.

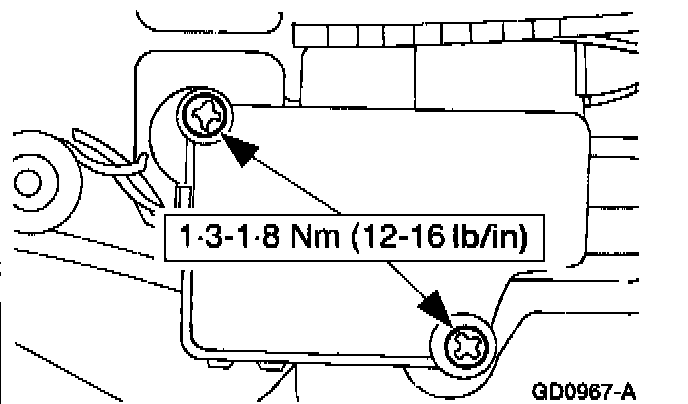

Remove the screws and the brake shift interlock actuator.
INSTALLATION 1.
To install, reverse the removal procedure.
NOTE: Adjust the transmission control selector dial bezel.
