Cowl Views

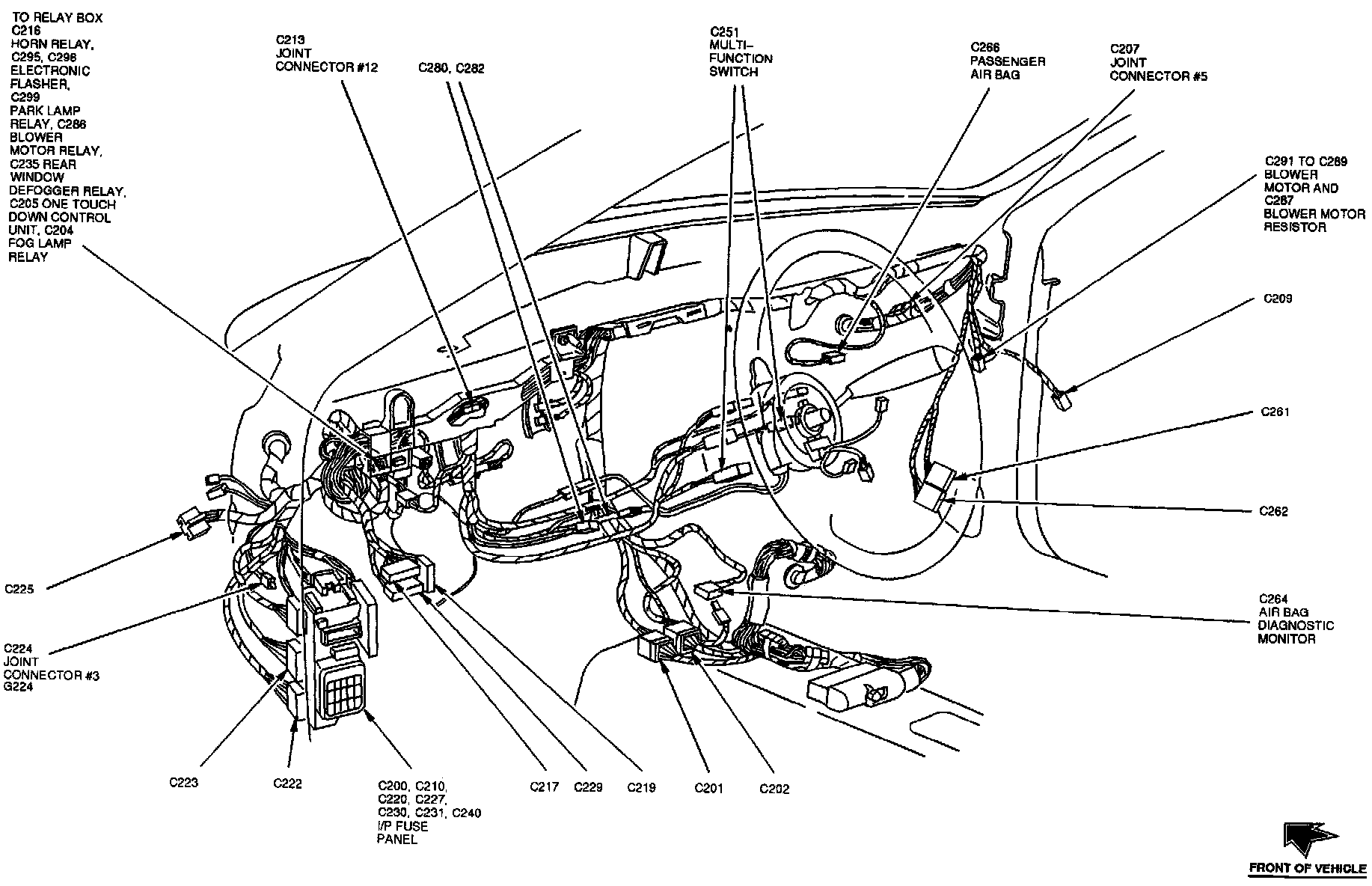

Cowl Views:





AIR BAG DIAGNOSTIC MONITOR
BLOWER MOTOR
BLOWER MOTOR RELAY
BLOWER MOTOR RESISTOR
ELECTRONIC FLASHER
FOG LAMP RELAY
HORN RELAY
INSTRUMENT PANEL FUSE PANEL
JOINT CONNECTOR #3
JOINT CONNECTOR #5
JOINT CONNECTOR #12
MULTI-FUNCTION SWITCH
ONE TOUCH DOWN CONTROL UNIT
PARK LAMP RELAY
PASSENGER AIR BAG
REAR WINDOW DEFOGGER RELAY
RELAY BOX

Cowl Views:





BRAKE PEDAL POSITION SWITCH
BRAKE PEDAL SWITCH
CLUTCH PEDAL POSITION SWITCH
DRIVER'S AIR BAG
HORN SWITCH
JOINT CONNECTOR #10
MULTI-FUNCTION SWITCH
OCTANE ADJUST PLUG
POWERTRAIN CONTROL MODULE
SLIP RING ASSEMBLY
SPEED CONTROL SWITCH ASSEMBLY
STARTER CLUTCH PEDAL POSITION SWITCH
STARTER CLUTCH PEDAL POSITION SWITCH JUMPER
WARNING CHIME MODULE
