Cabin Temperature Sensor / Switch: Service and Repair
REMOVAL 1.
Remove the center instrument panel finish panel.
1
Carefully pry to release the four clips.
2.

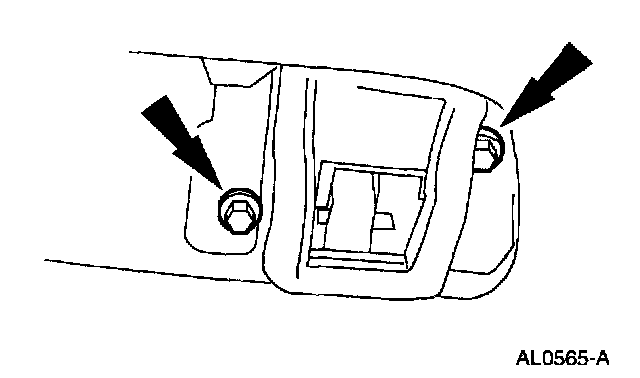

Remove the screws and the accessory outlet trim panel.
3.

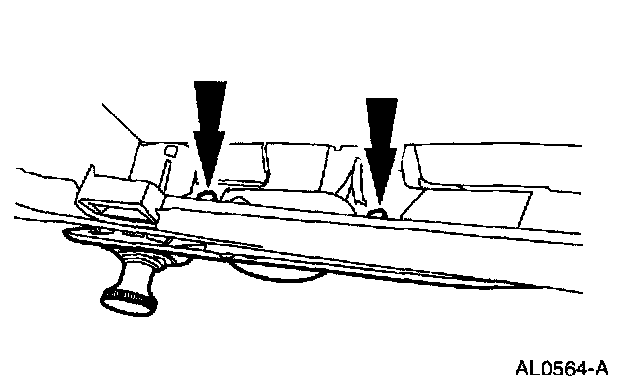

Remove the screws.
4.

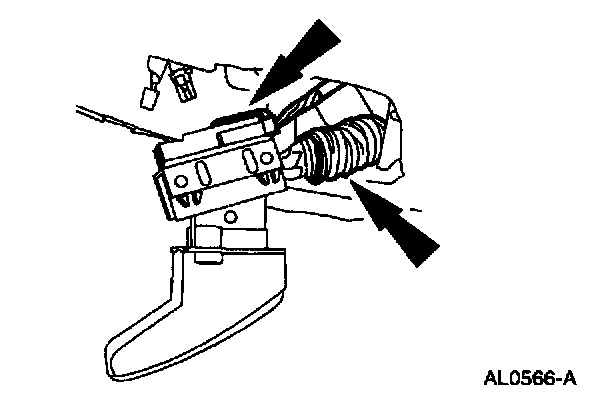

Disconnect the electrical connector and remove the sensor from the hose.
INSTALLATION 1.

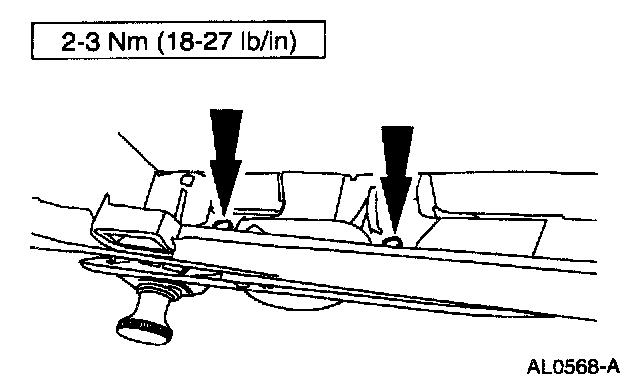

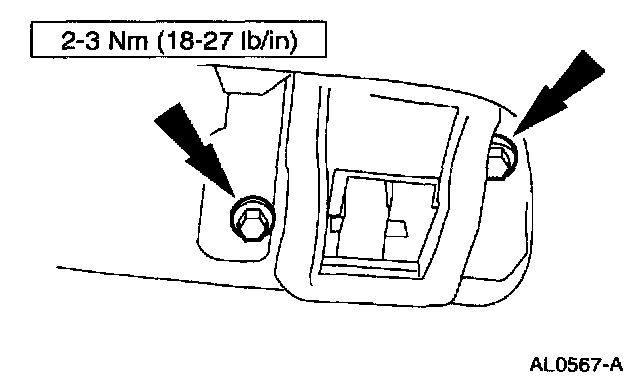

Follow the removal procedure in reverse order.
