Air Temperature Sensor ( Ambient / Intake ): Service and Repair
REMOVAL CAUTION: Always disconnect the battery ground cable prior to work on the electronic engine controls.
1.
Disconnect the battery ground cable.
2.

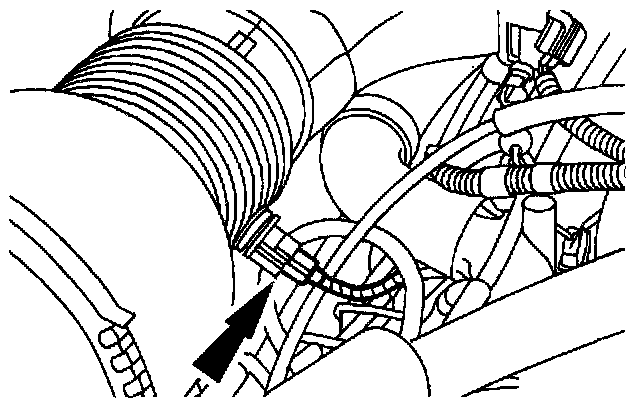

Disconnect the IAT sensor electrical connector.
3.
Remove the
Intake Air Temperature sensor (
IAT sensor).
INSTALLATION 1.
Follow the removal procedure in reverse order.
