Ignition Cable: Service and Repair

REMOVAL

CAUTION: Spark plug wires must be connected to the proper ignition coil terminal and spark plug. Mark the spark plug wire locations.

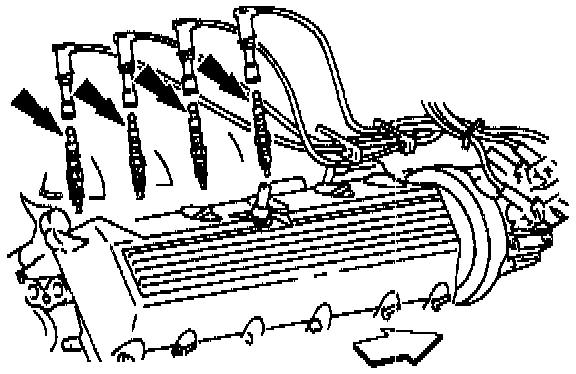

1. Grasp the spark plug boot firmly and use a twisting, pulling motion to disconnect the spark plug wires from the spark plugs.

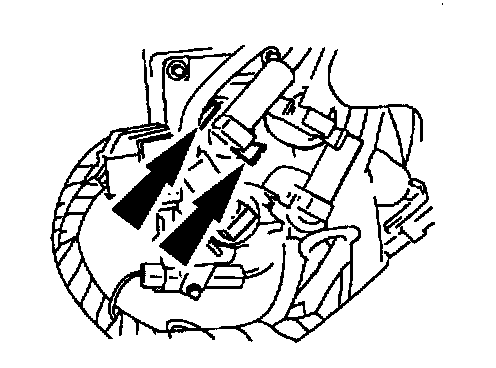

2. Squeeze the locking tabs and disconnect the spark plug wire from the ignition coil.

INSTALLATION
1. Apply Silicone Brake Caliper Grease Dielectric Compound D7AZ-19A331-A or equivalent meeting Ford specification ESE-M1C171-A to the inside of the spark plug wire boots.
2. Follow the removal procedure in reverse order.
