A: Shift Solenoids

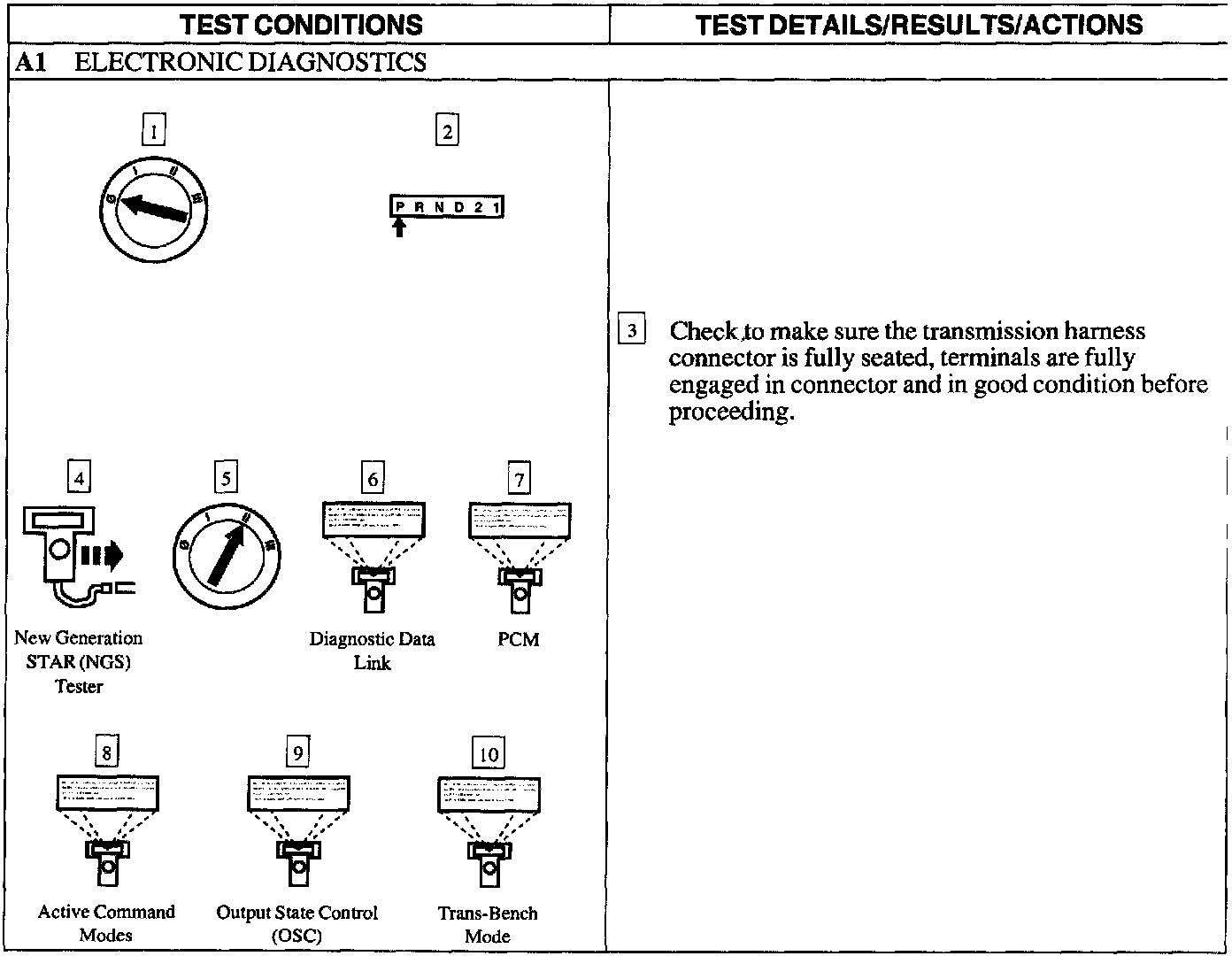

Test A1:

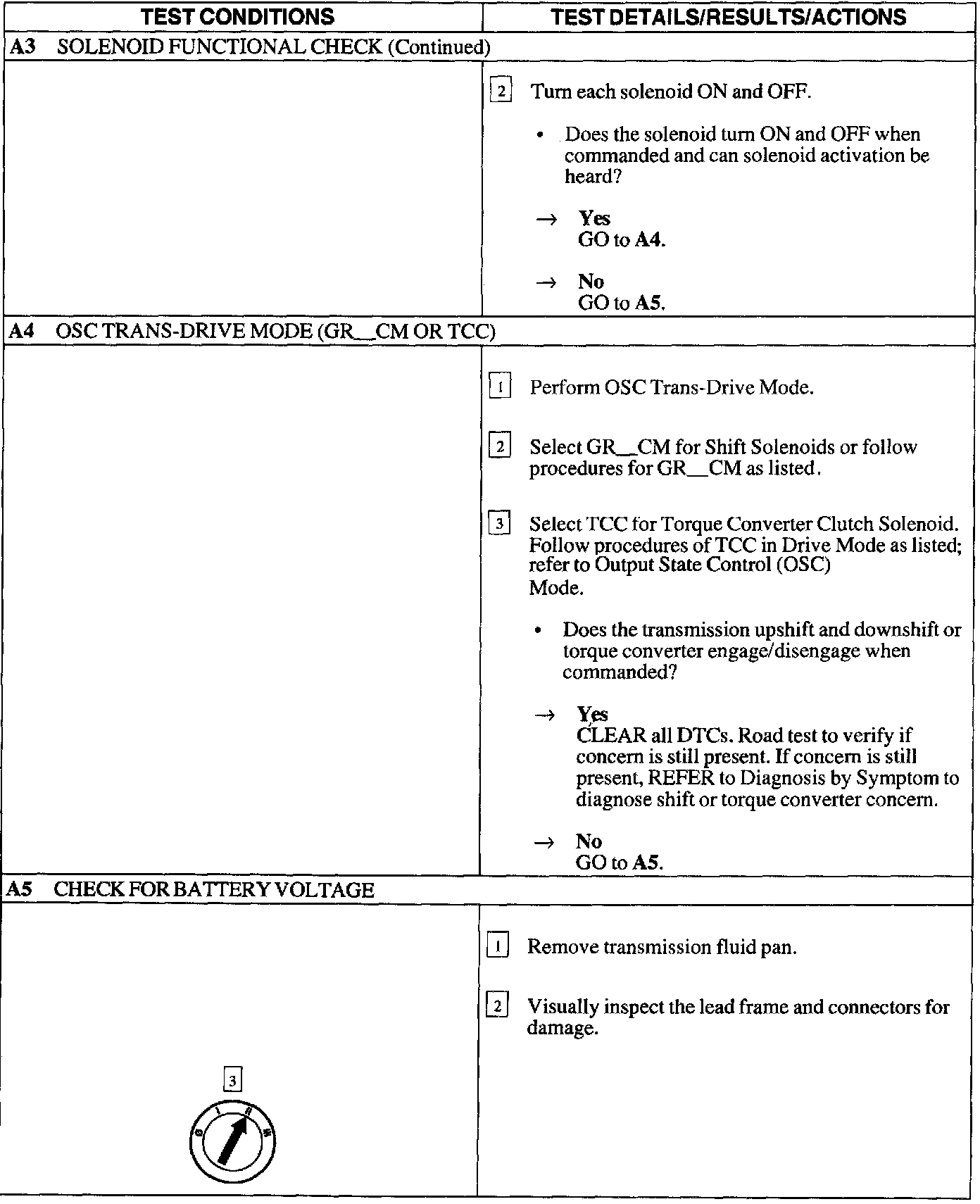

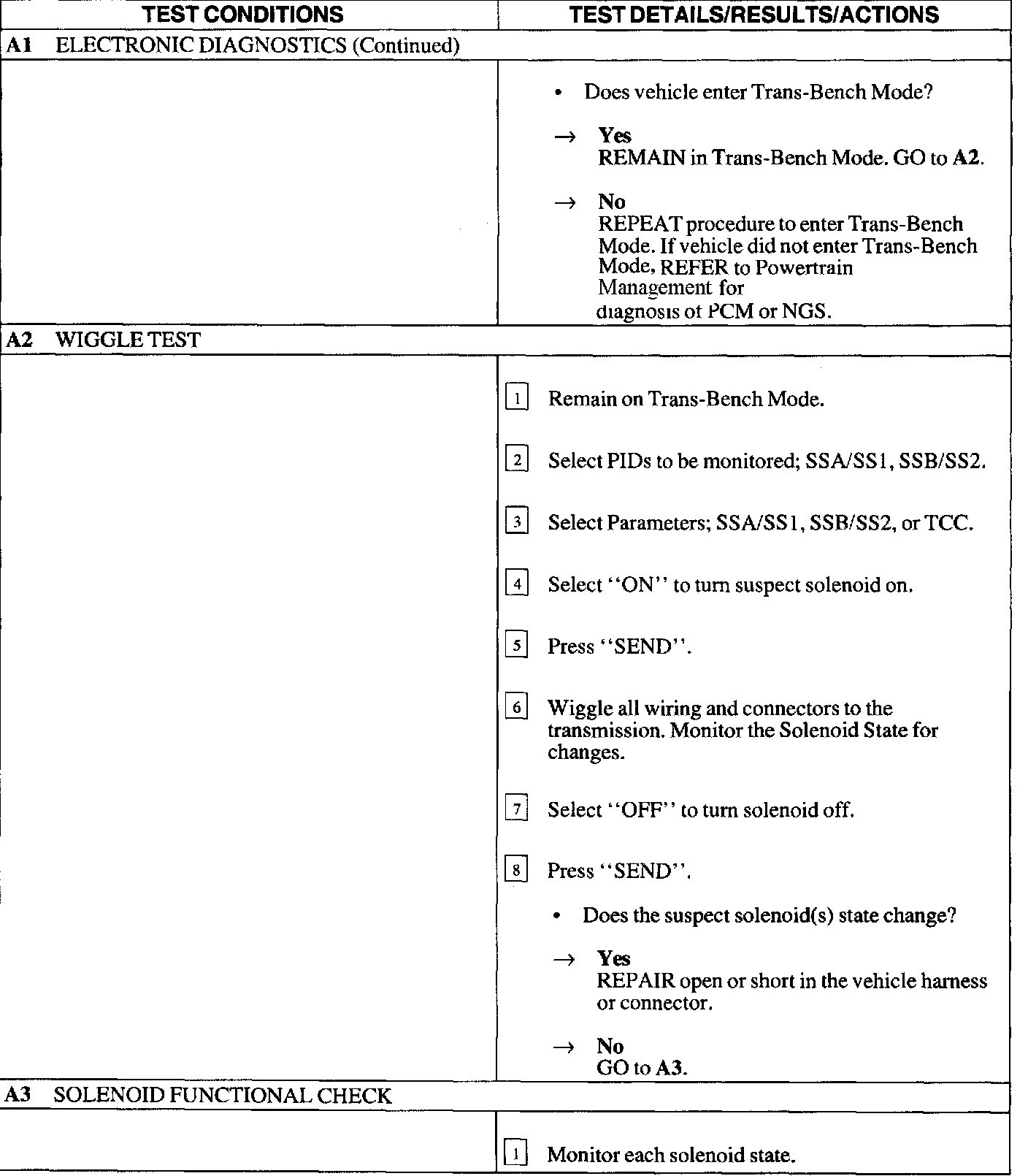

Test A1 - A3:

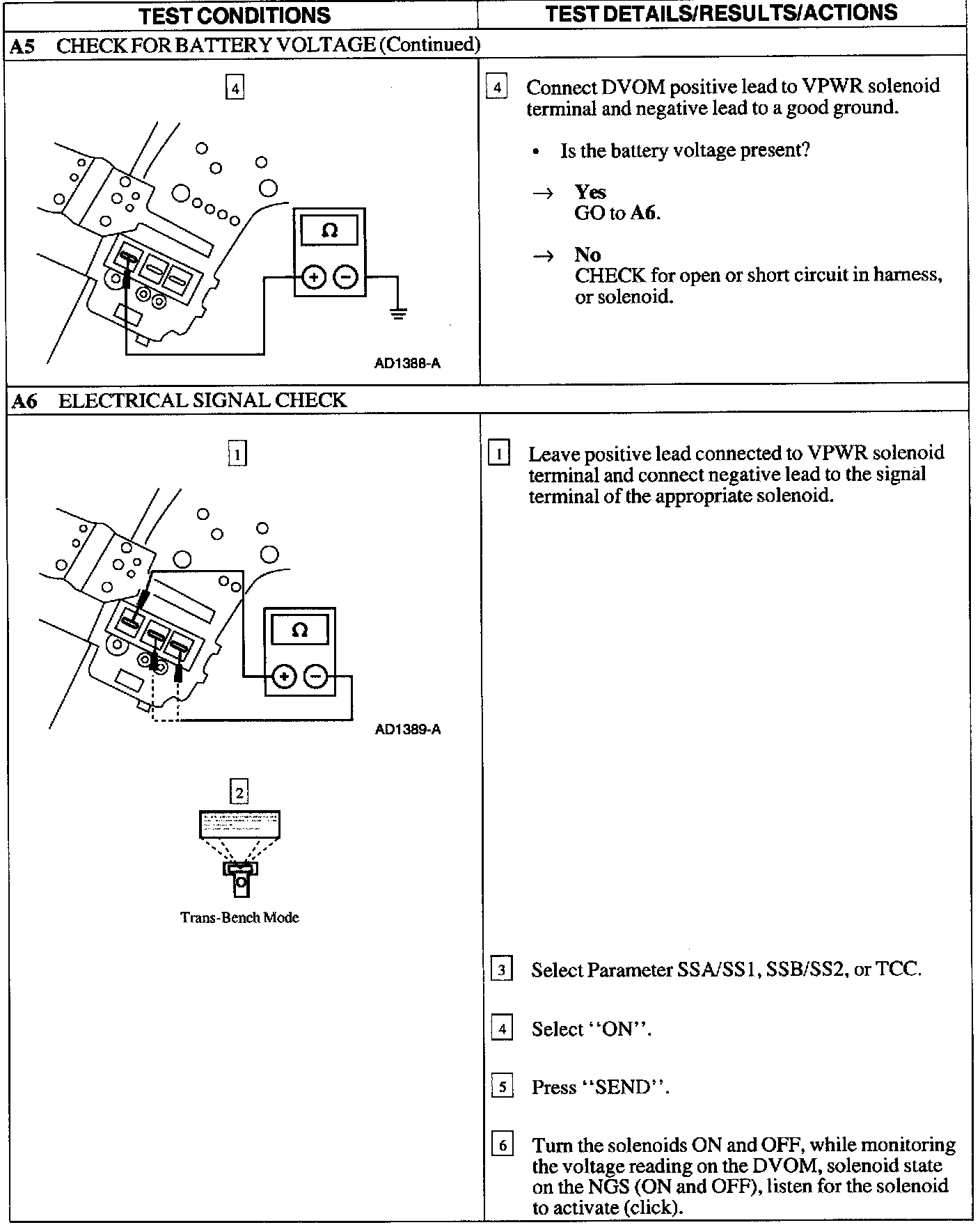

Test A3 - A5:

Test A5 - A6:

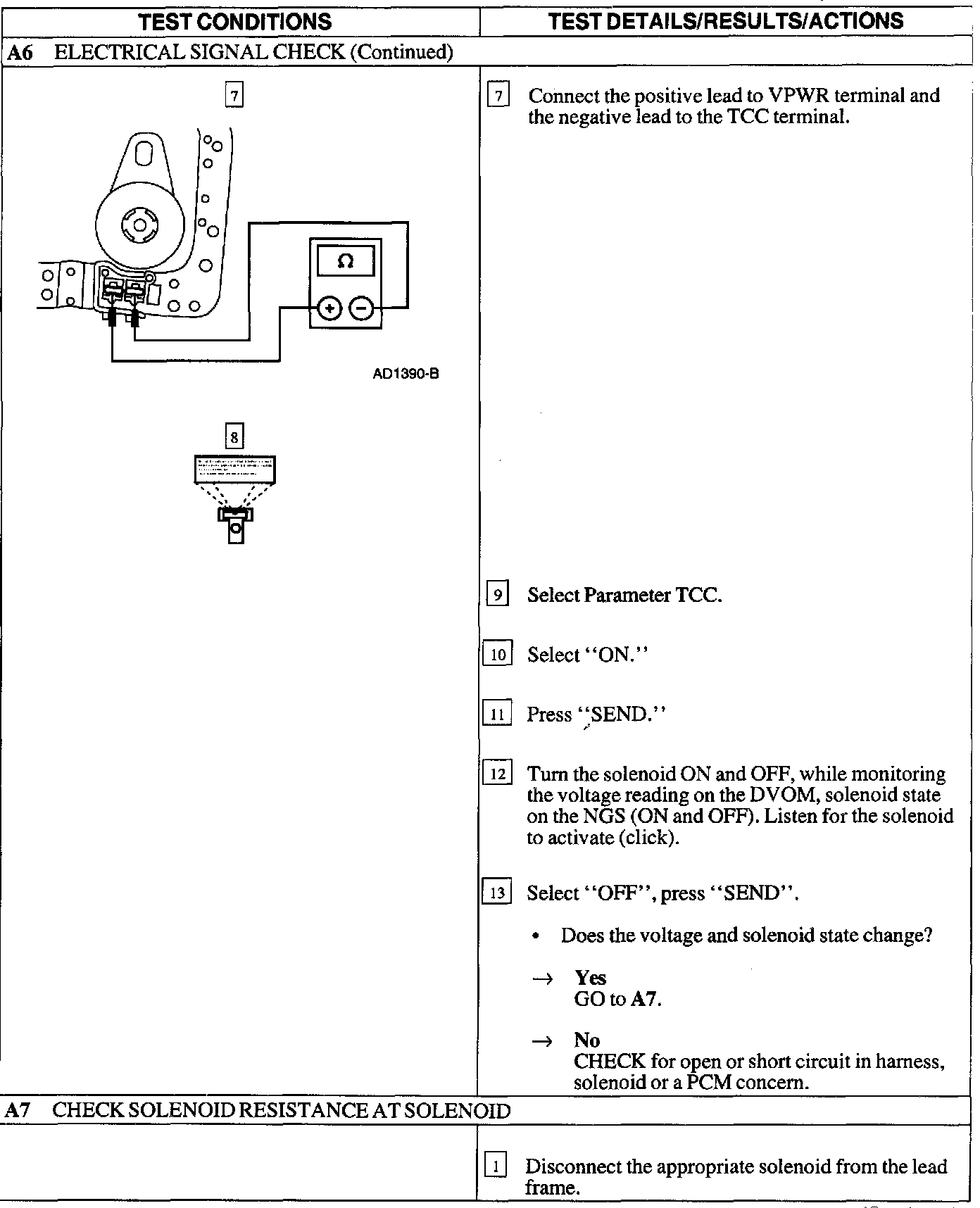

Test A6 - A7:

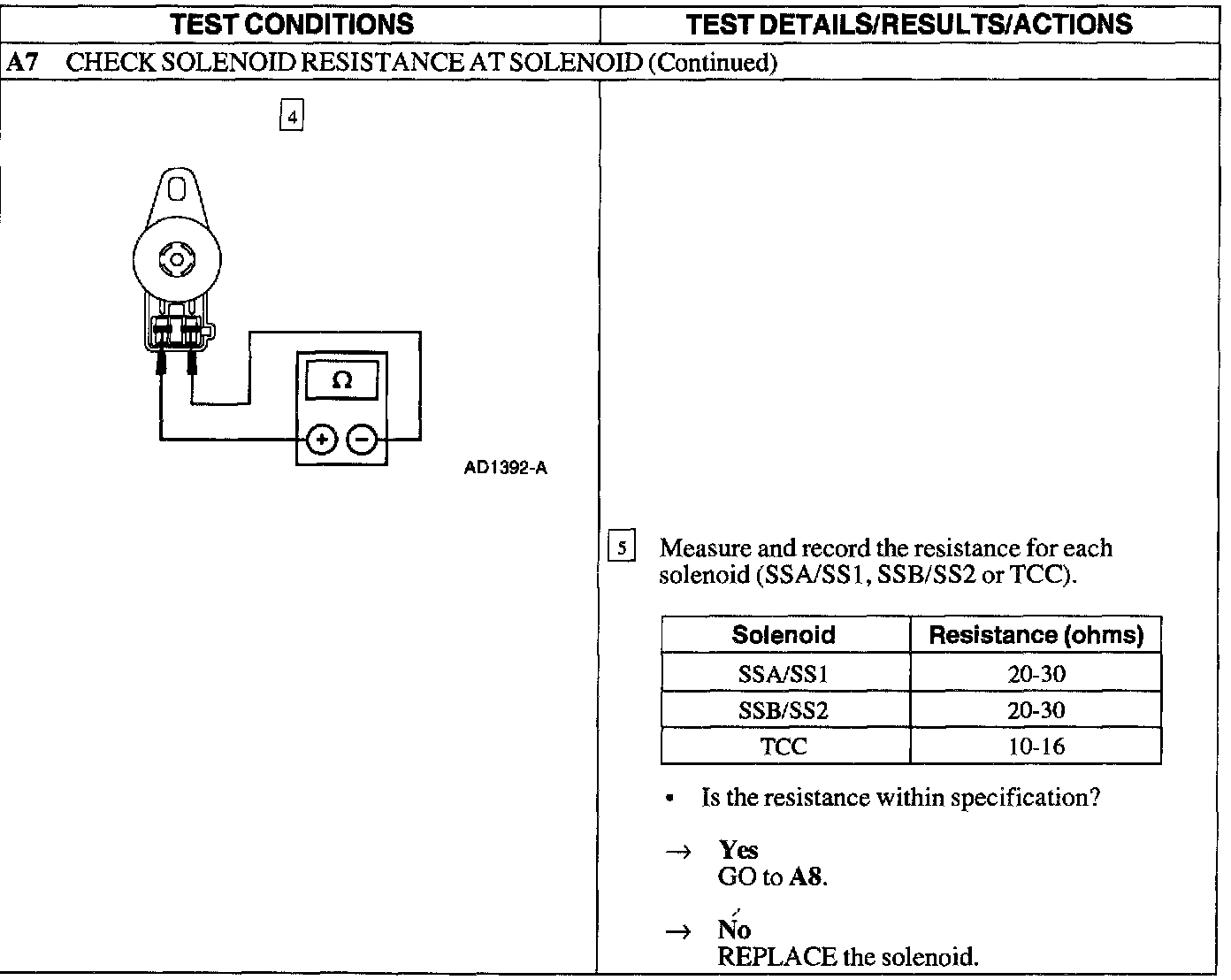

Test A7:

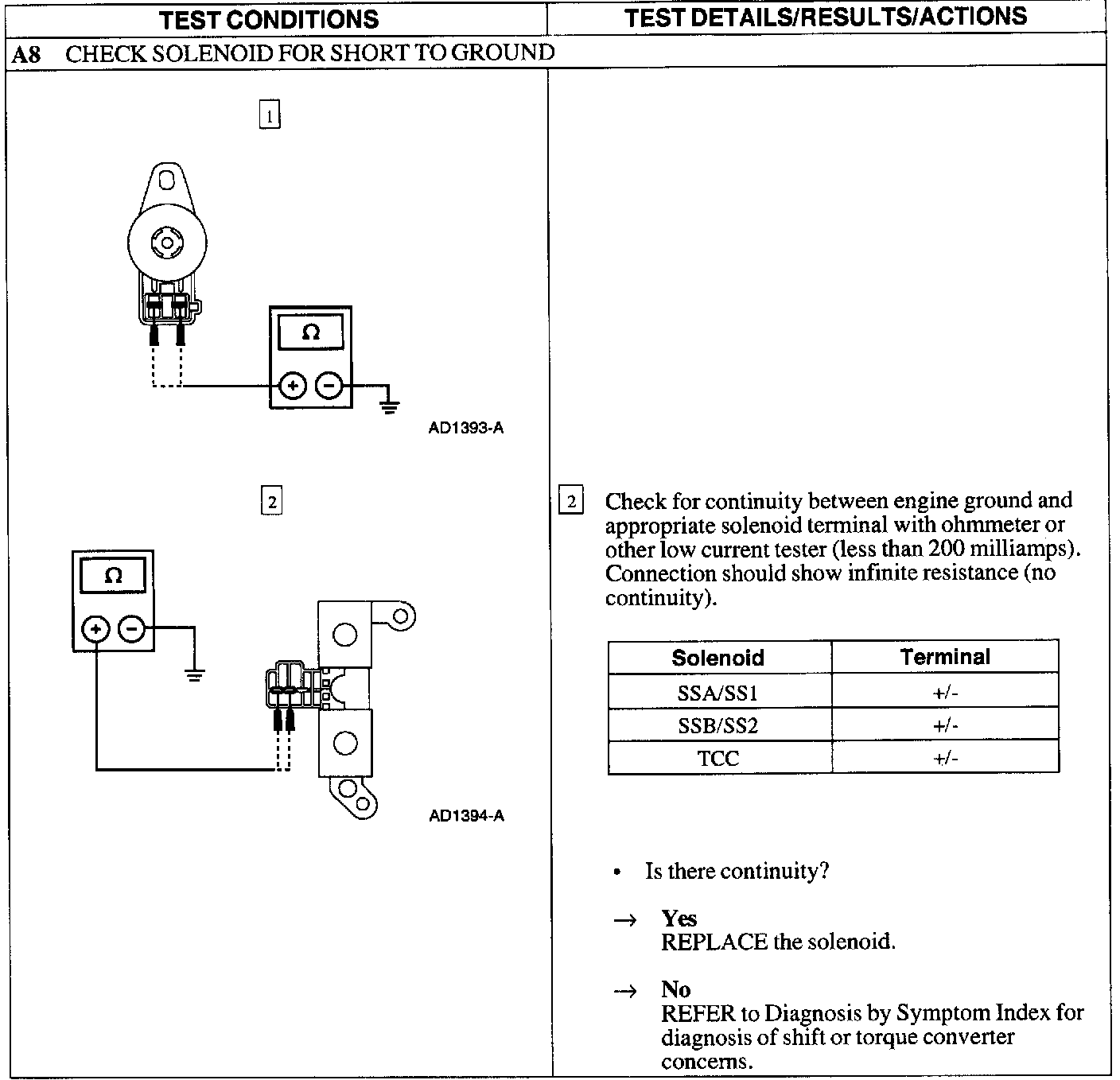

Test A8:

NOTE: Read and record all DTCs. All Digital TR Sensor and VSS DTCs must be repaired before entering Output State Control (OSC).

NOTE: Refer to the Transmission Internal Harness illustration. Refer to the Transmission Vehicle Harness Connector illustration. Description of On-Board Diagnostics
