Starter Relay: Service and Repair
REMOVALWARNING: WHEN PERFORMING MAINTENANCE ON THE STARTING SYSTEM BE AWARE THAT THE HEAVY GAUGE LEADS ARE CONNECTED DIRECTLY TO THE BATTERY. MAKE SURE THE PROTECTIVE CAPS ARE IN PLACE WHEN THE MAINTENANCE IS COMPLETE.
1. Disconnect the battery ground cable.
2. Remove the relay cover.

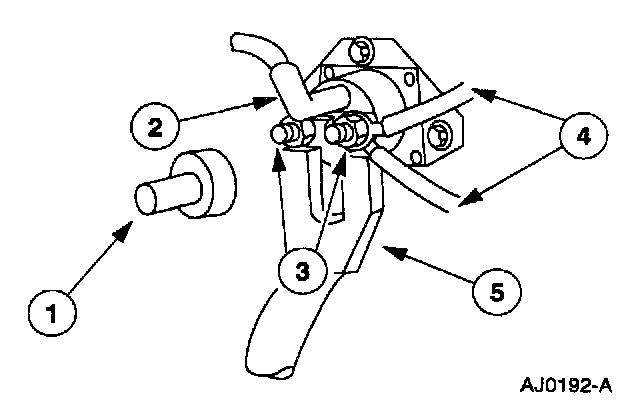

3. Disconnect the starter motor solenoid relay switch wires and cables.
1. Remove the insulator.
2. Disconnect the ignition switch signal wire.
3. Remove the nuts.
4. Remove the engine control sensor wire and the generator wire.
5. Remove the battery cables.

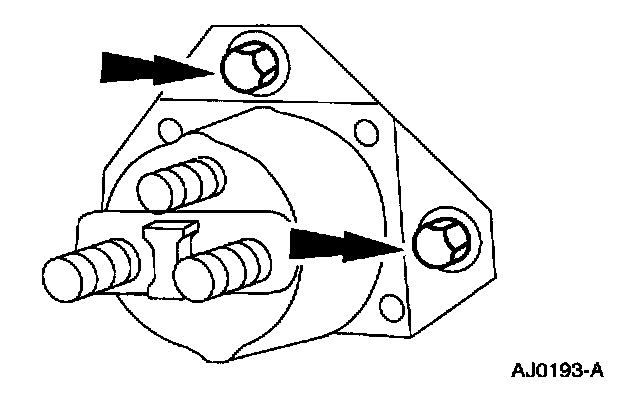

4. Remove the bolts and remove the starter motor solenoid relay switch.
INSTALLATION

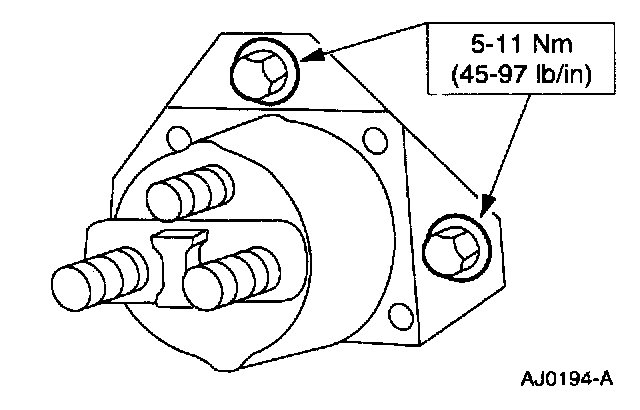

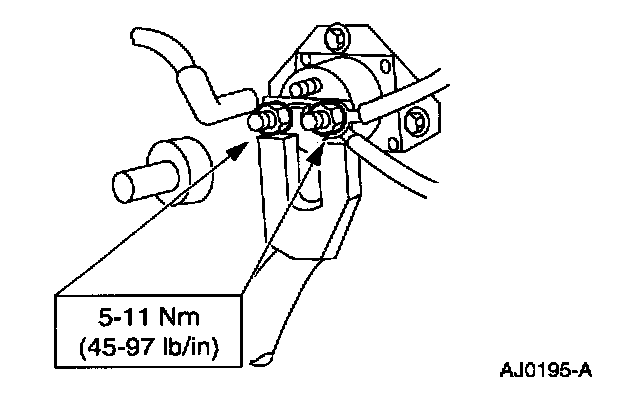

1. Follow the removal procedure in reverse order.
WARNING: WHEN PERFORMING MAINTENANCE ON THE STARTING SYSTEM BE AWARE THAT THE HEAVY GAUGE LEADS ARE CONNECTED DIRECTLY TO THE BATTERY. MAKE SURE THE PROTECTIVE CAPS ARE IN PLACE WHEN THE MAINTENANCE IS COMPLETE.
