Shift Solenoid Operation Chart

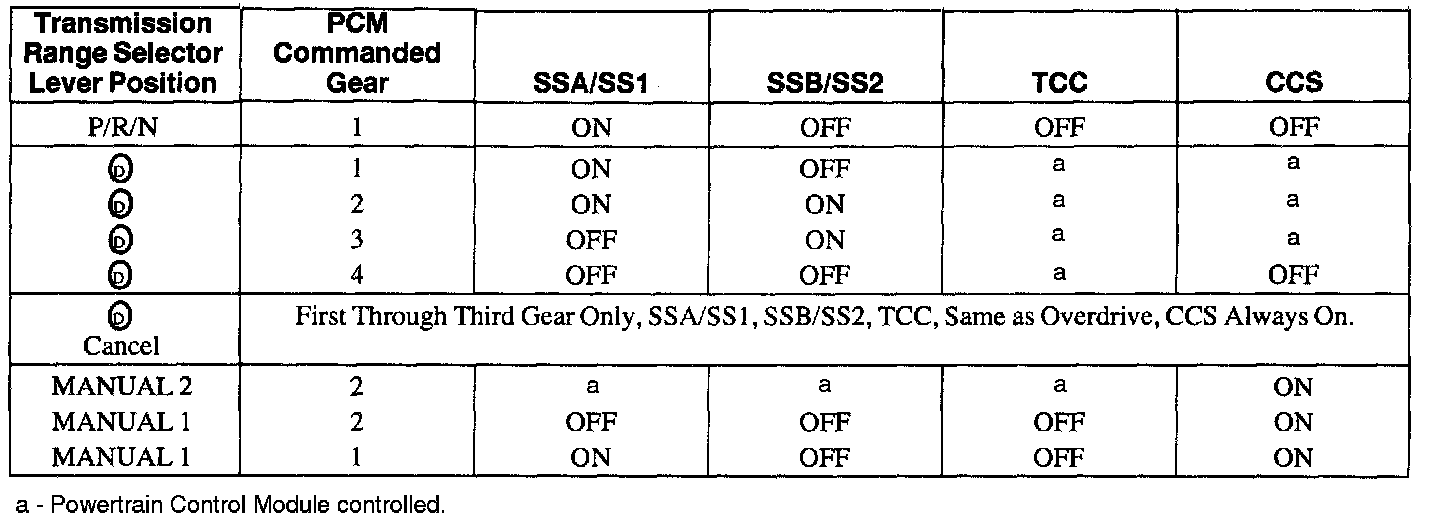

Solenoid Operation Chart:

SHIFT SOLENOIDS PRE-DIAGNOSIS
Use the following shift solenoid operation information when performing Pinpoint Test A.

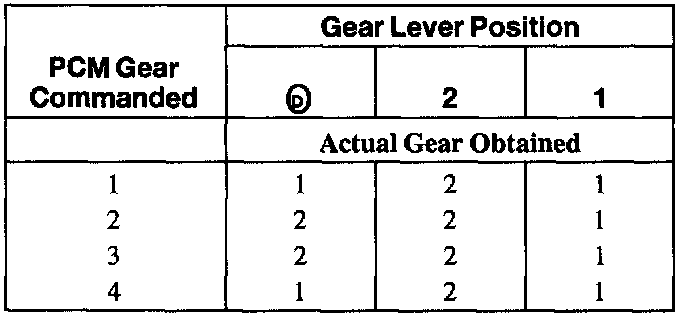

SSA/SS1 Always Off:

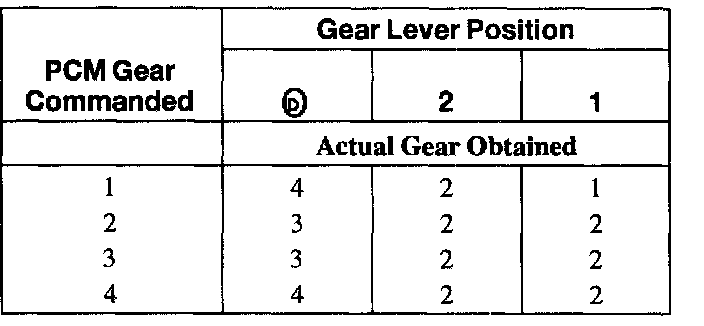

SSB/SS2 Always Off:

SHIFT SOLENOID FAILURE MODE CHARTS ALWAYS OFF
Failed OFF due to PCM /vehicle wiring concerns; solenoid electrically or hydraulically stuck off.

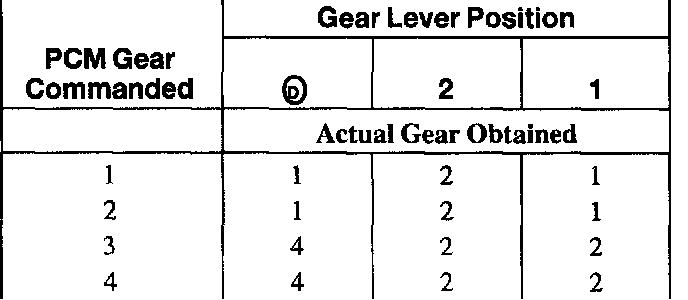

SSA/SS1 Always On:

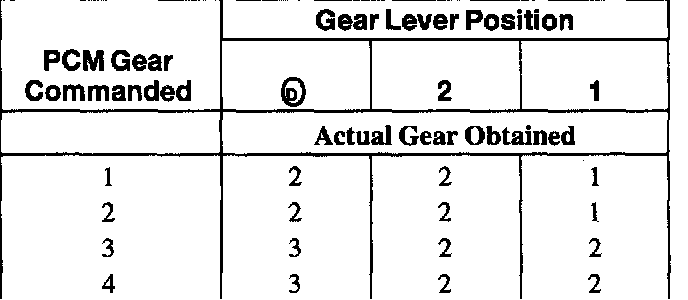

SSB/SS2 Always On:

SHIFT SOLENOID FAILURE MODE ALWAYS ON
Failed ON due to PCM /vehicle wiring concerns; solenoid electrically or hydraulically stuck on.
