Throttle Position Sensor: Service and Repair

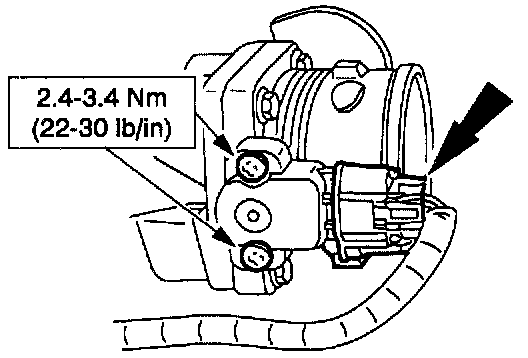

REMOVAL 1.
Disconnect the Throttle Position
(TP) sensor.
1
Disconnect the TP electrical connector.
2
Remove the screws and the TP sensor.
INSTALLATION 1.
Connect the TP sensor.
-
Position the TP sensor and install the screws.
-
Connect the TP electrical connector.
