Cruise Control Servo: Service and Repair

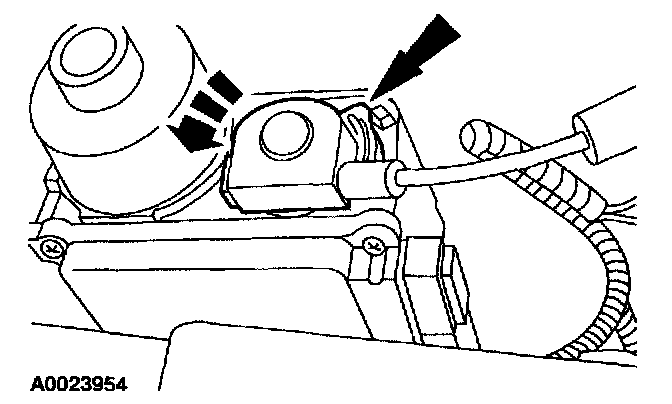

REMOVAL 1.
Disconnect the
speed control servo electrical connector.
2.
Disconnect the
speed control actuator cable from the
speed control servo.
^
Press the locking clip inward then twist the
speed control actuator cable cap counter-clockwise.
3.
Remove the
speed control servo bracket bolt.
4.
Remove the
speed control servo.
INSTALLATION 1.
To install, reverse the removal procedure.
