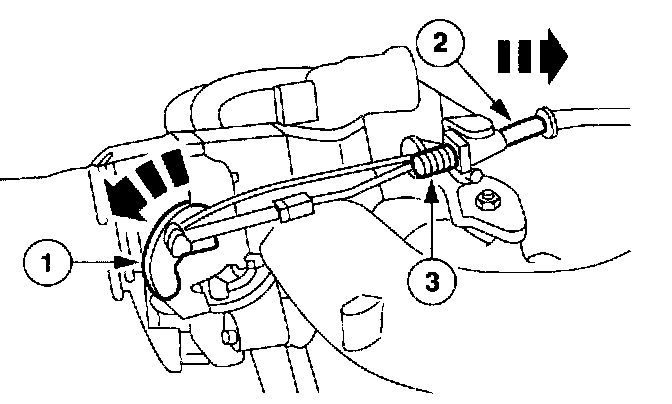

Cruise Control Servo Cable: Adjustments

1. Remove the clip.

2. Adjust the speed control actuator cable.
1. Set the throttle body cam to the closed position and hold.
2. Pull on the cable to remove any slack.
3. Back off the cable one notch.

NOTE: For proper operation, the speed control actuator cable must not be pulled tight.

3. Hold the (A) speed control actuator cable and inset the (B) clip securely.
