A: Shift Solenoids

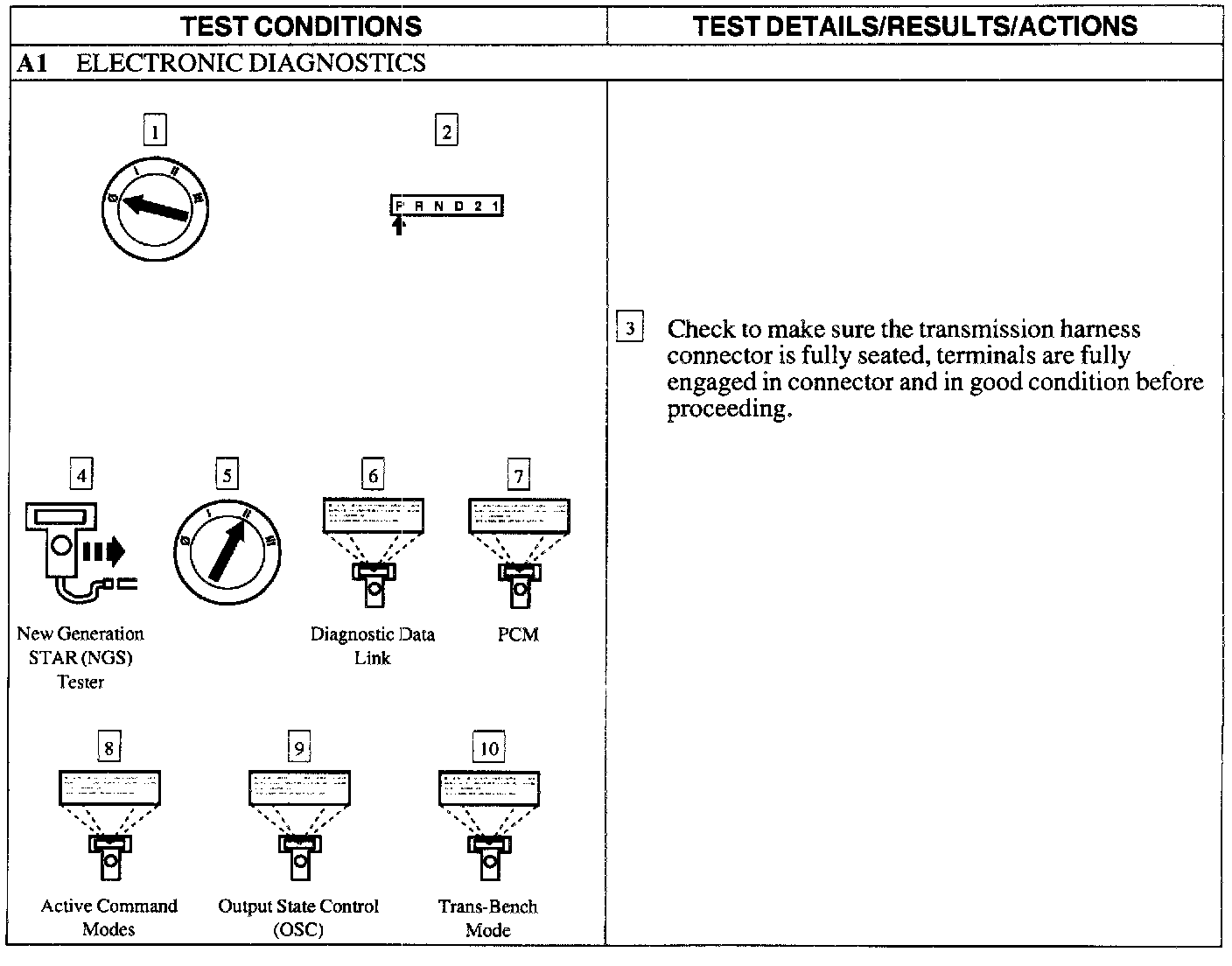

Test A1:

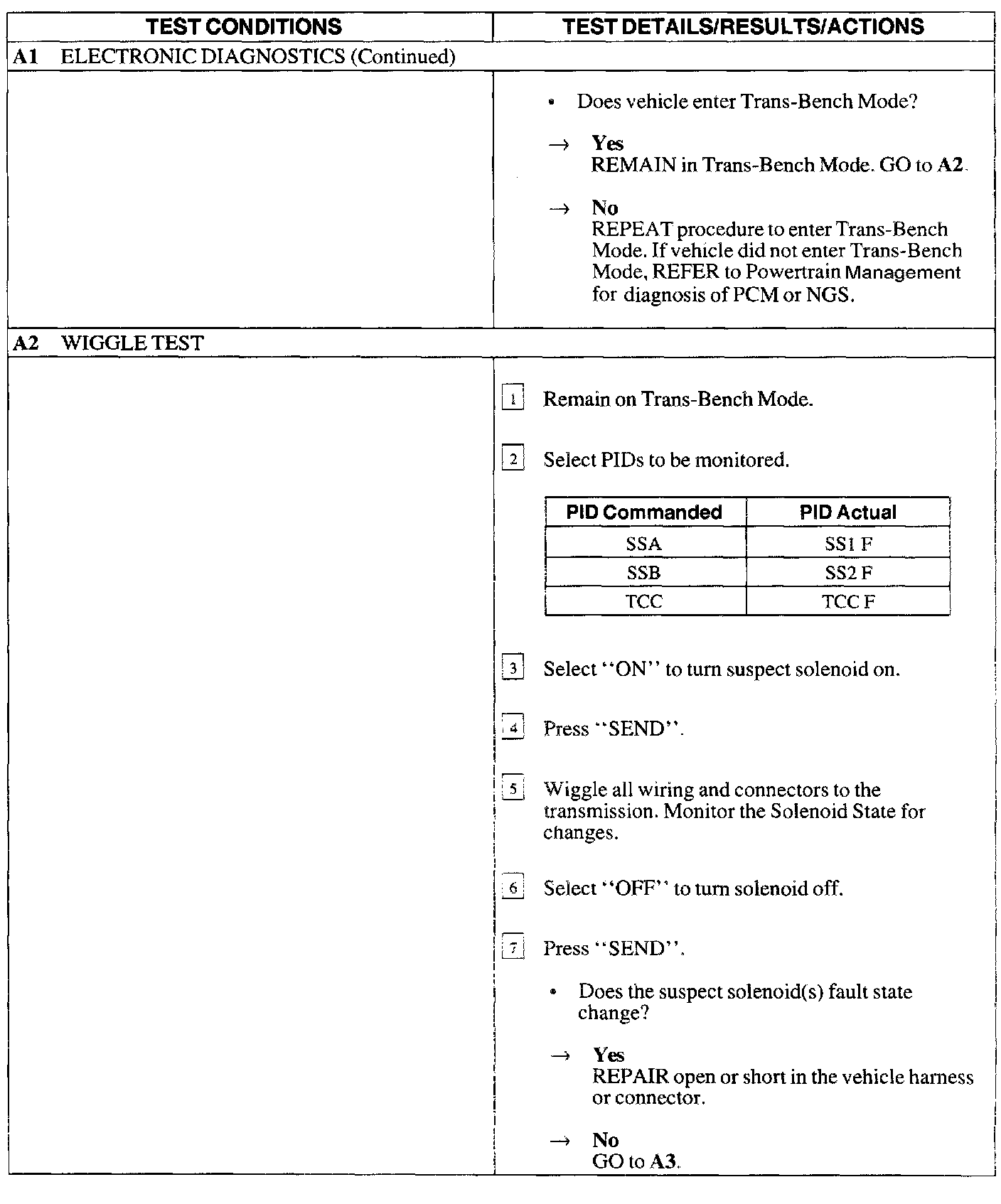

Test A1 - A2:

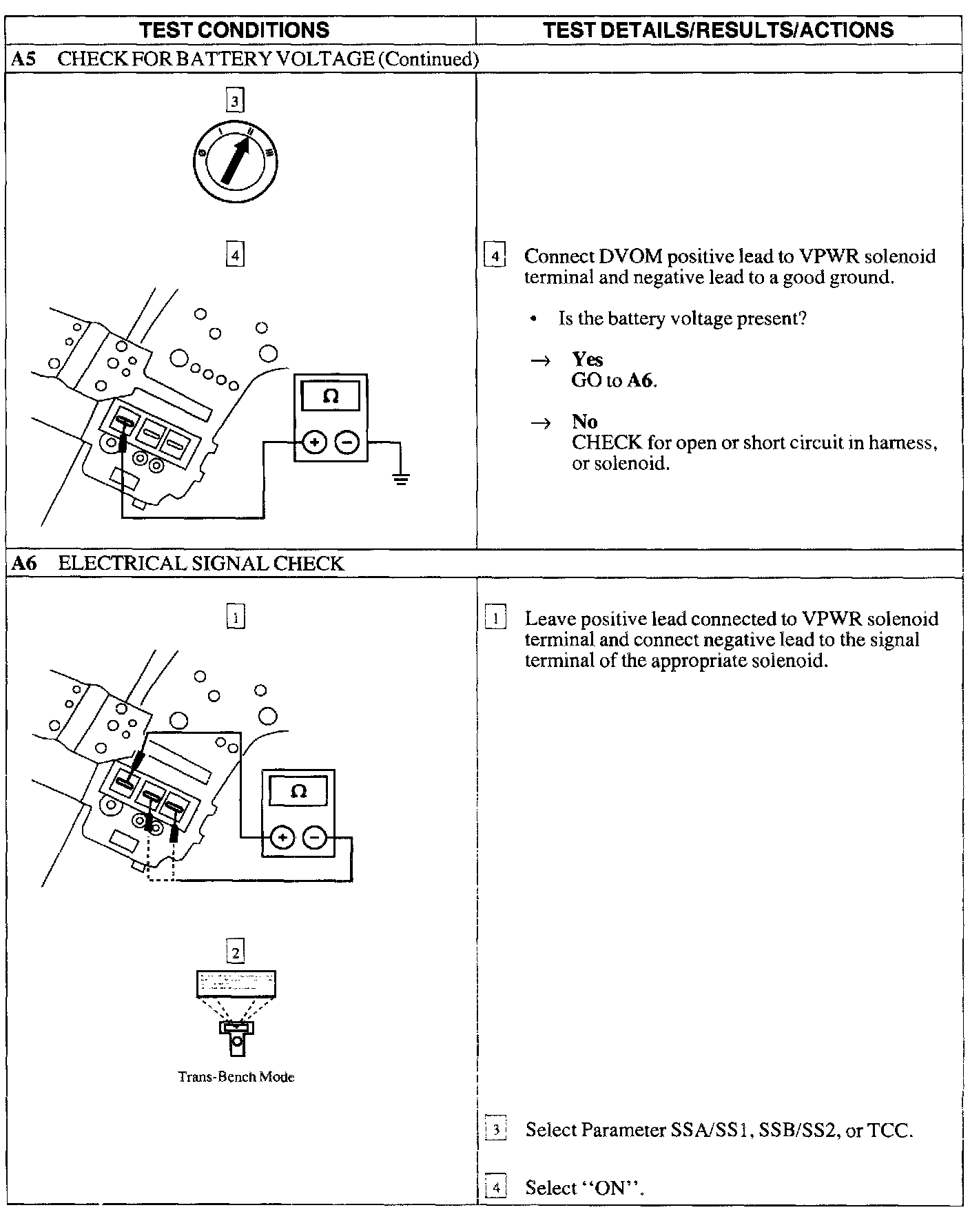

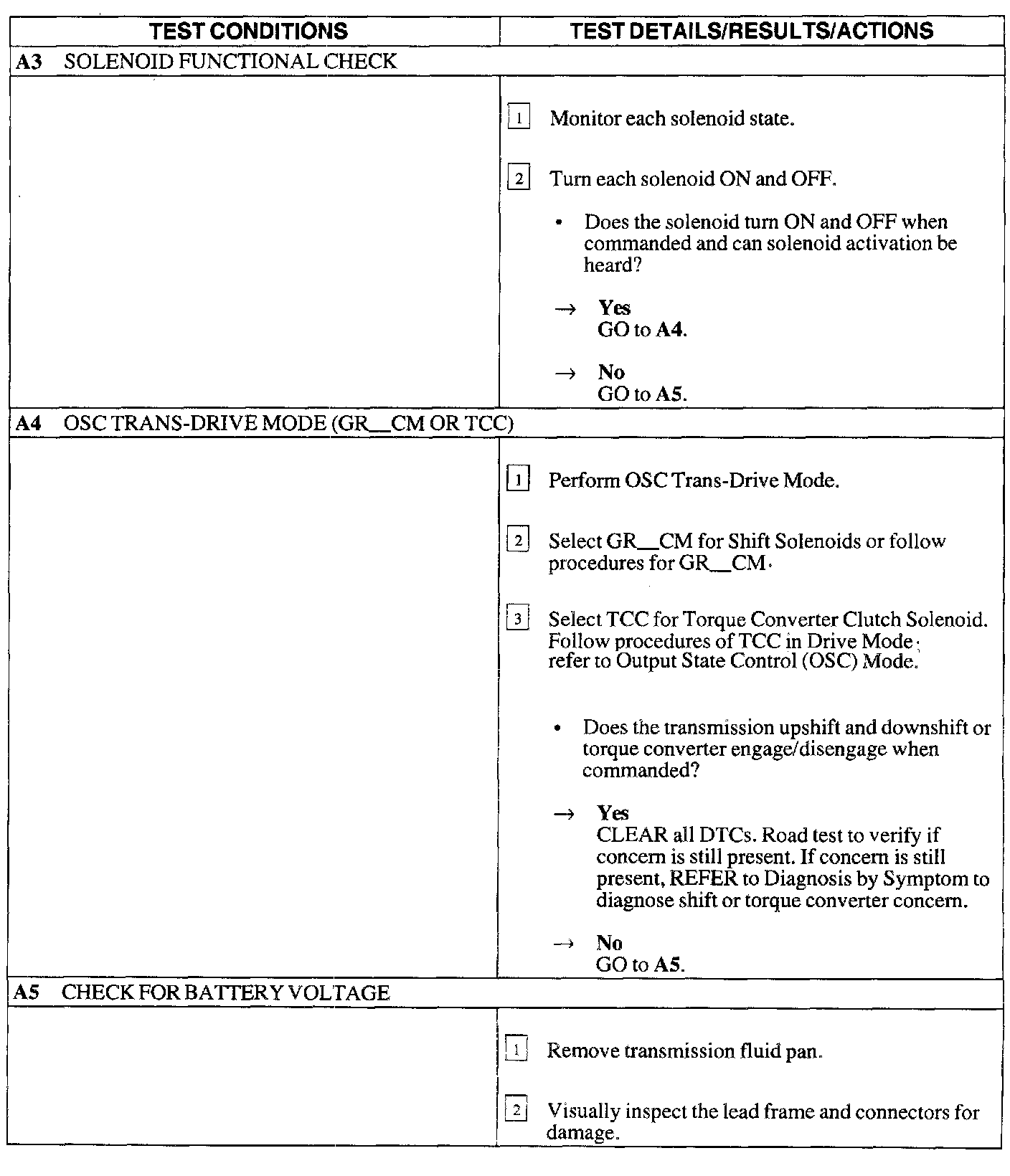

Test A3 - A5:

Test A5 - A6:

Test A6:

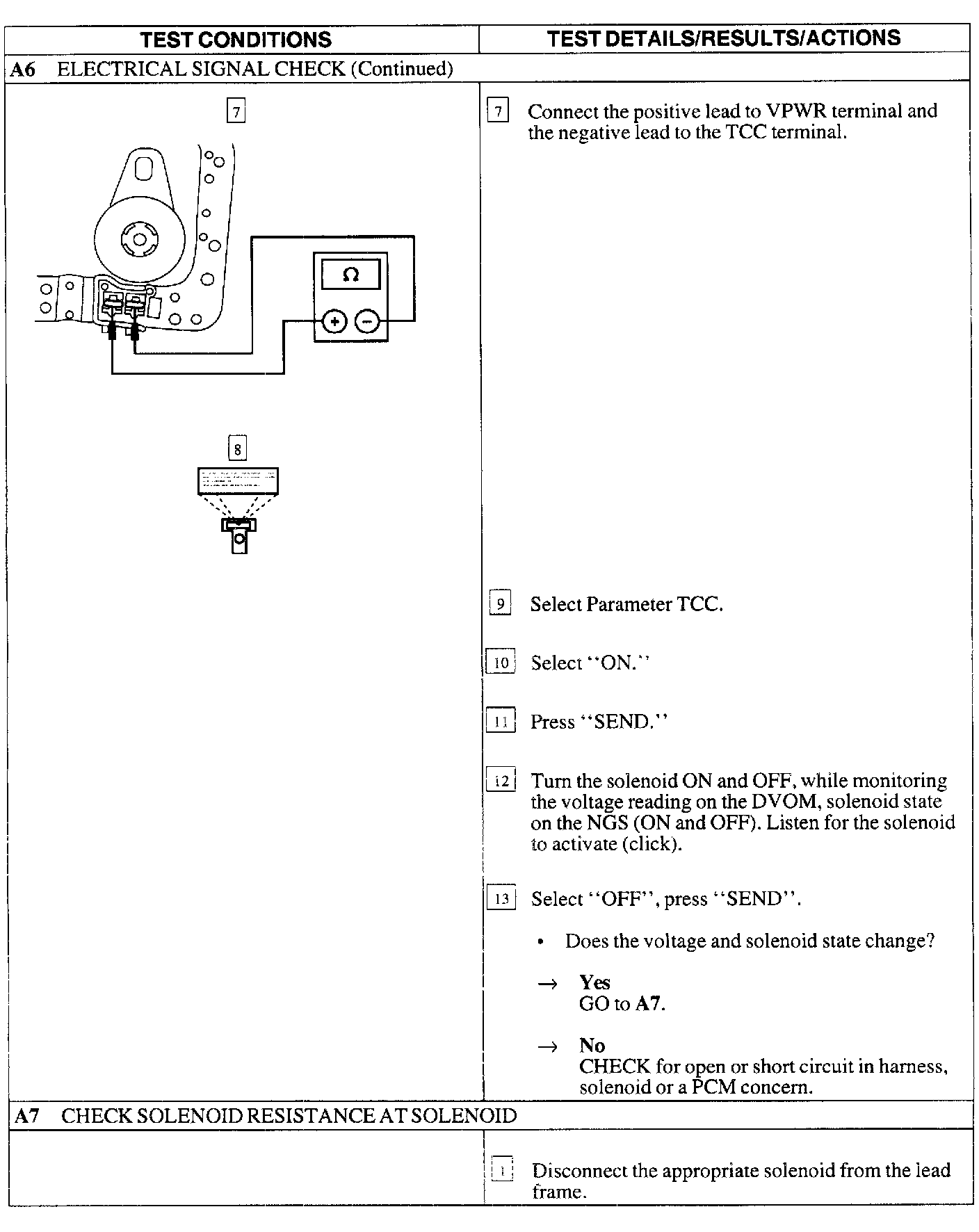

Test A6 - A7:

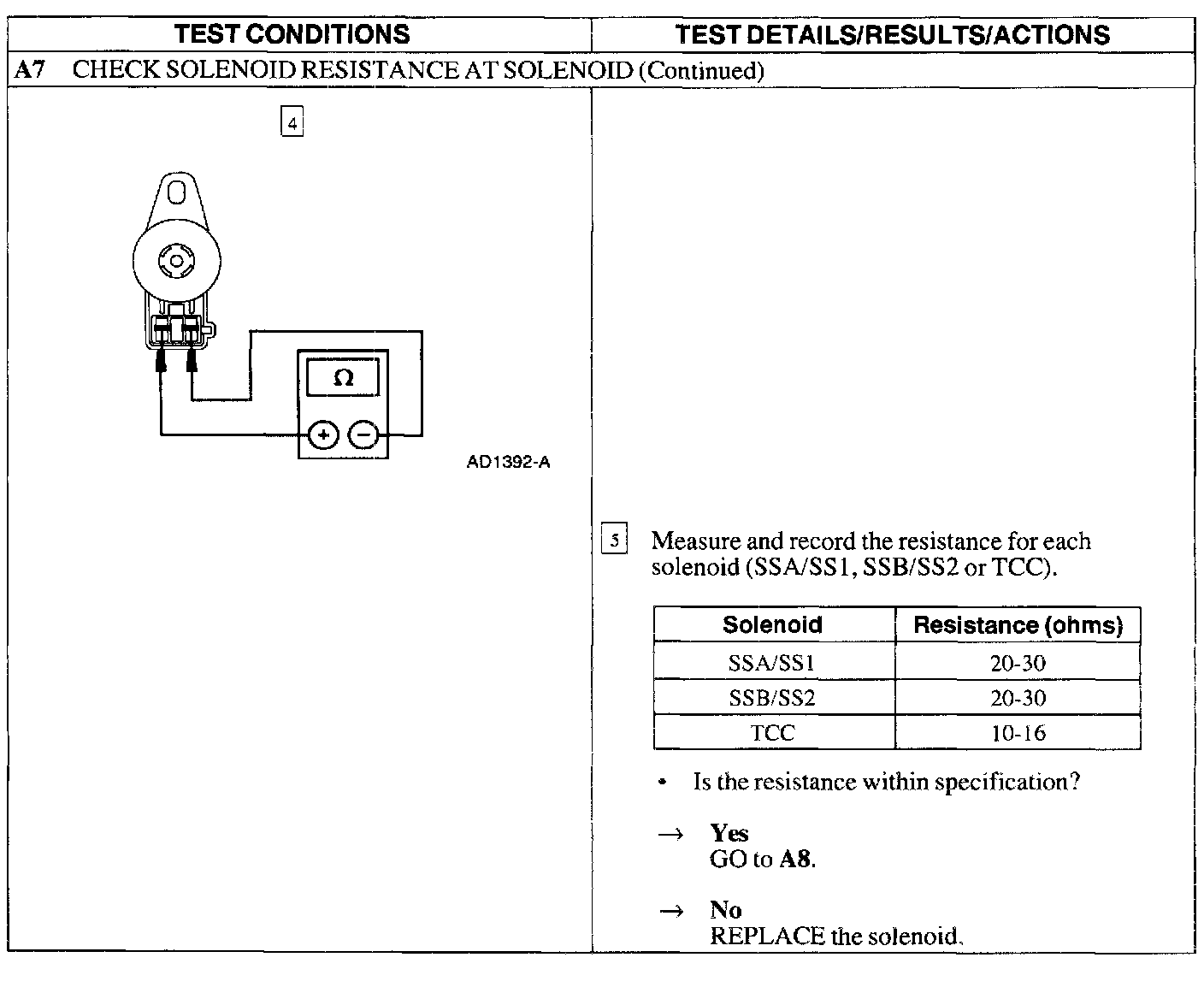

Test A7:

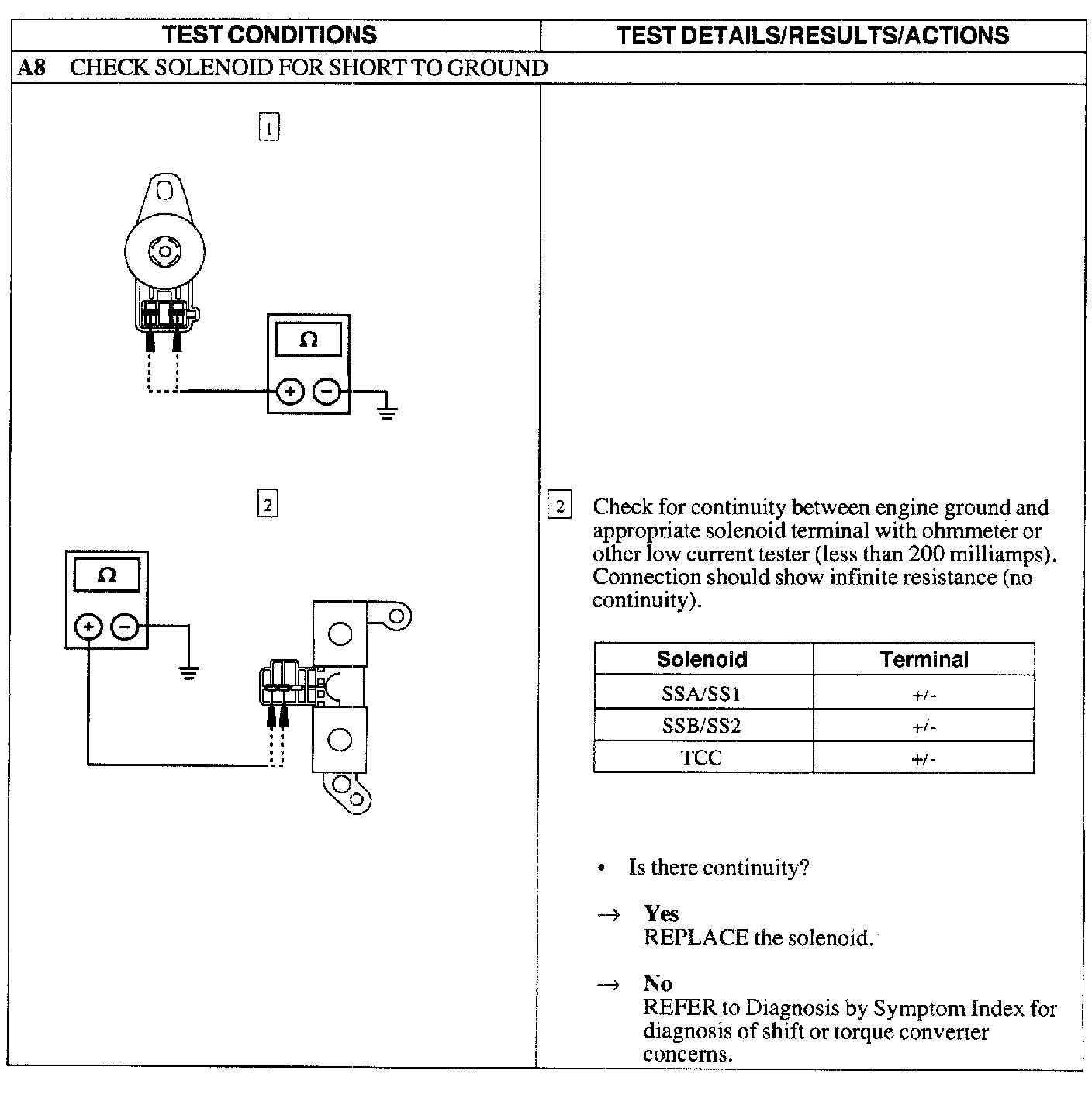

Test A8:

NOTE: Read and record all Diagnostic Trouble Codes (DTCs). All digital Transmission Range (TR) sensor and Vehicle Speed Sensor (VSS) DTCs must be repaired before entering Output State Control (OSC).

NOTE: Refer to the Transmission Internal Harness illustration.
NOTE: Refer to the Transmission Vehicle Harness Connector illustration.
