Anti-Theft System, Active

REMOVAL
1. Disconnect battery ground cable.
2. Open the luggage compartment door. Remove trim from LH side of luggage compartment.
3. Disconnect electrical connectors from anti-theft alarm control.

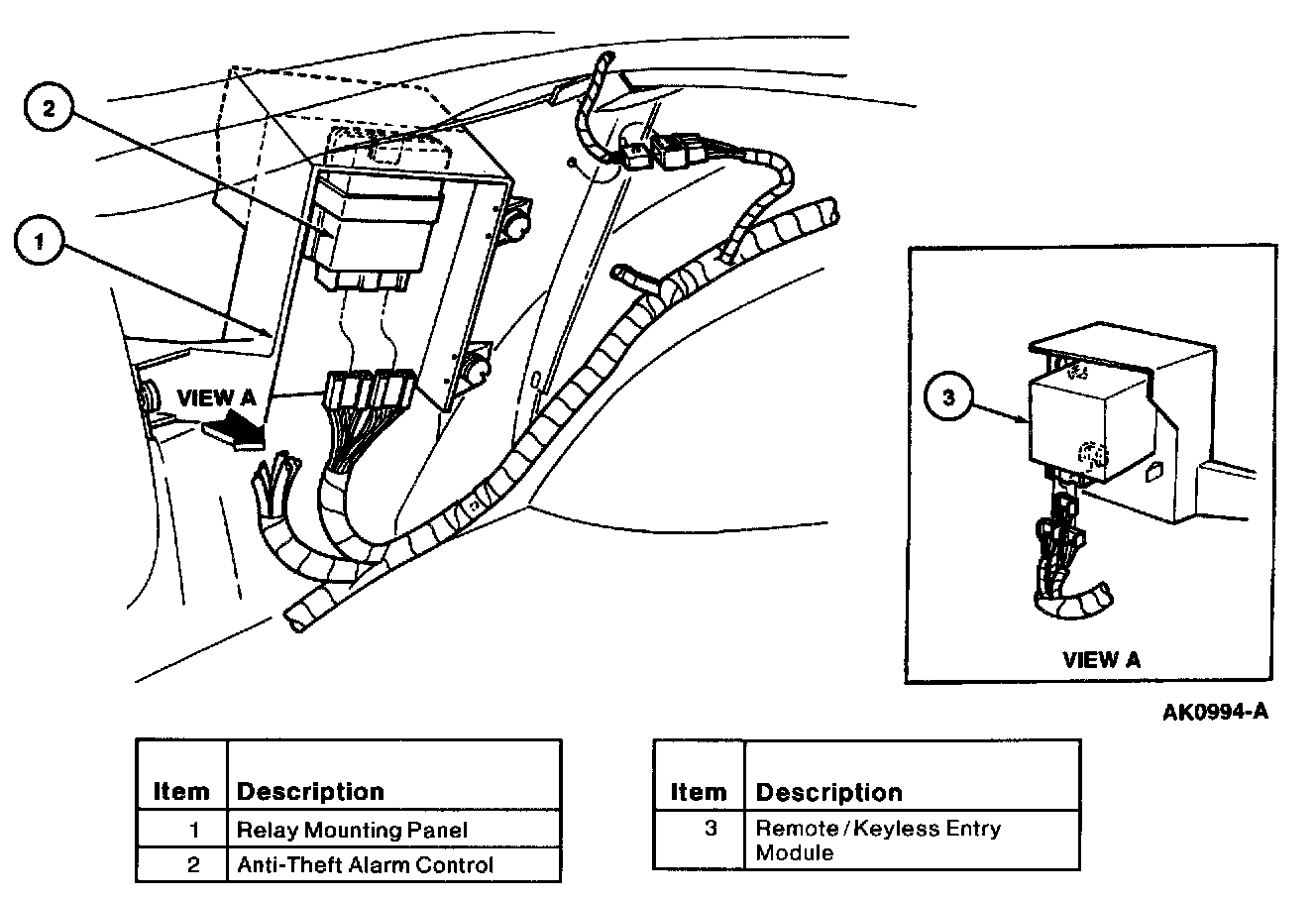

4. Remove anti-theft alarm control by pushing on the panel retaining tab below the anti-theft alarm control while sliding the anti-theft alarm control down.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Test system for proper operation.
