Seat Regulator Control Switch

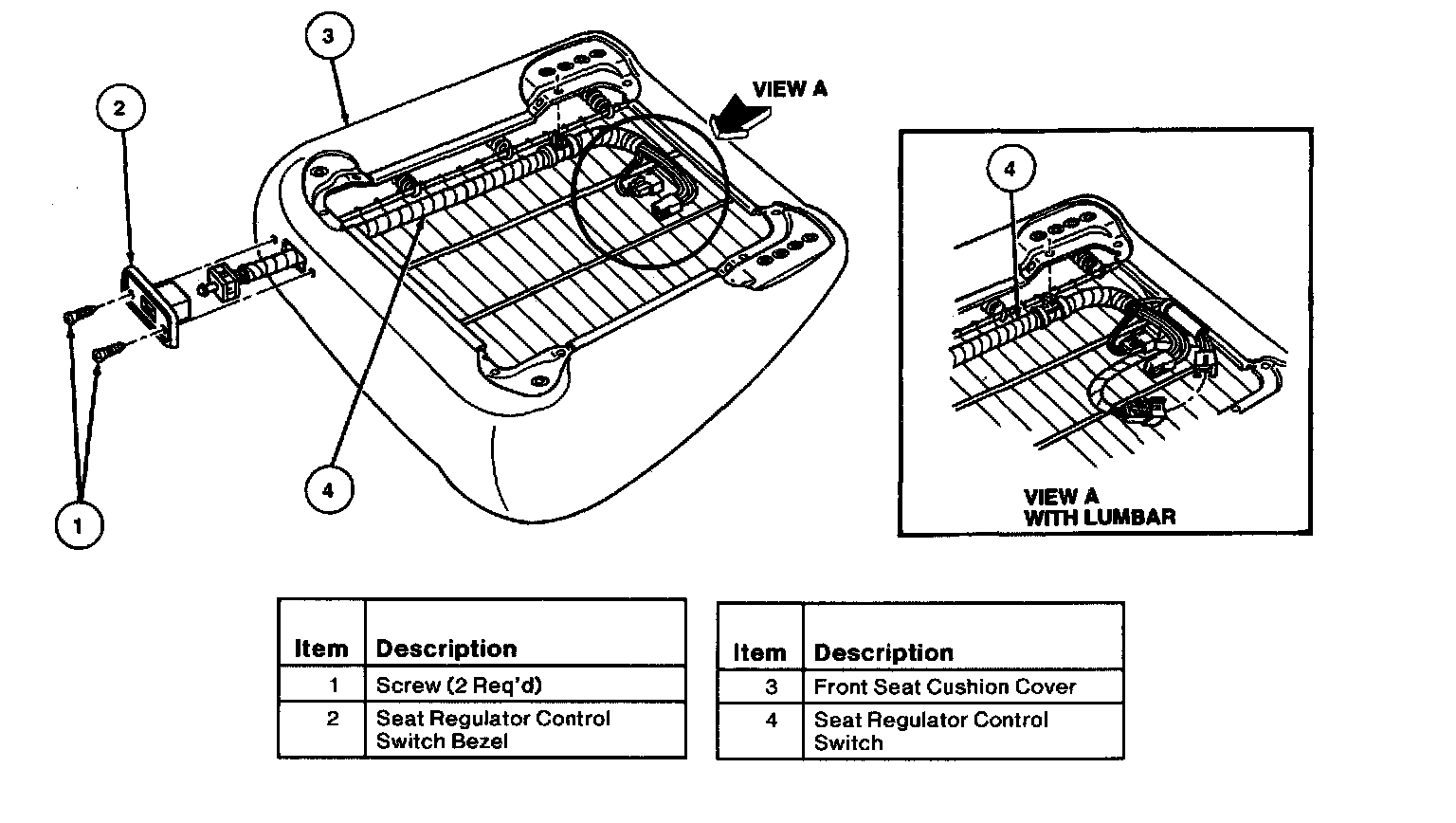

REMOVAL
1. Remove two screws from seat regulator control switch bezel.

NOTE: Before servicing seat regulator control switch, check switch and housing connectors for proper mating.

2. Disconnect seat regulator control switch and housing connectors from body main wiring underneath seat.
3. Pull seat regulator control switch bezel and seat regulator control switch from seat, feeding connectors through seat regulator control mounting bracket opening.
4. Remove seat regulator control switch from seat regulator control switch bezel by depressing mounting tabs located in the sides of the seat regulator control switch bezel mounting cavity with two small screwdrivers.

INSTALLATION
1. Follow removal procedure in reverse order.
