Front

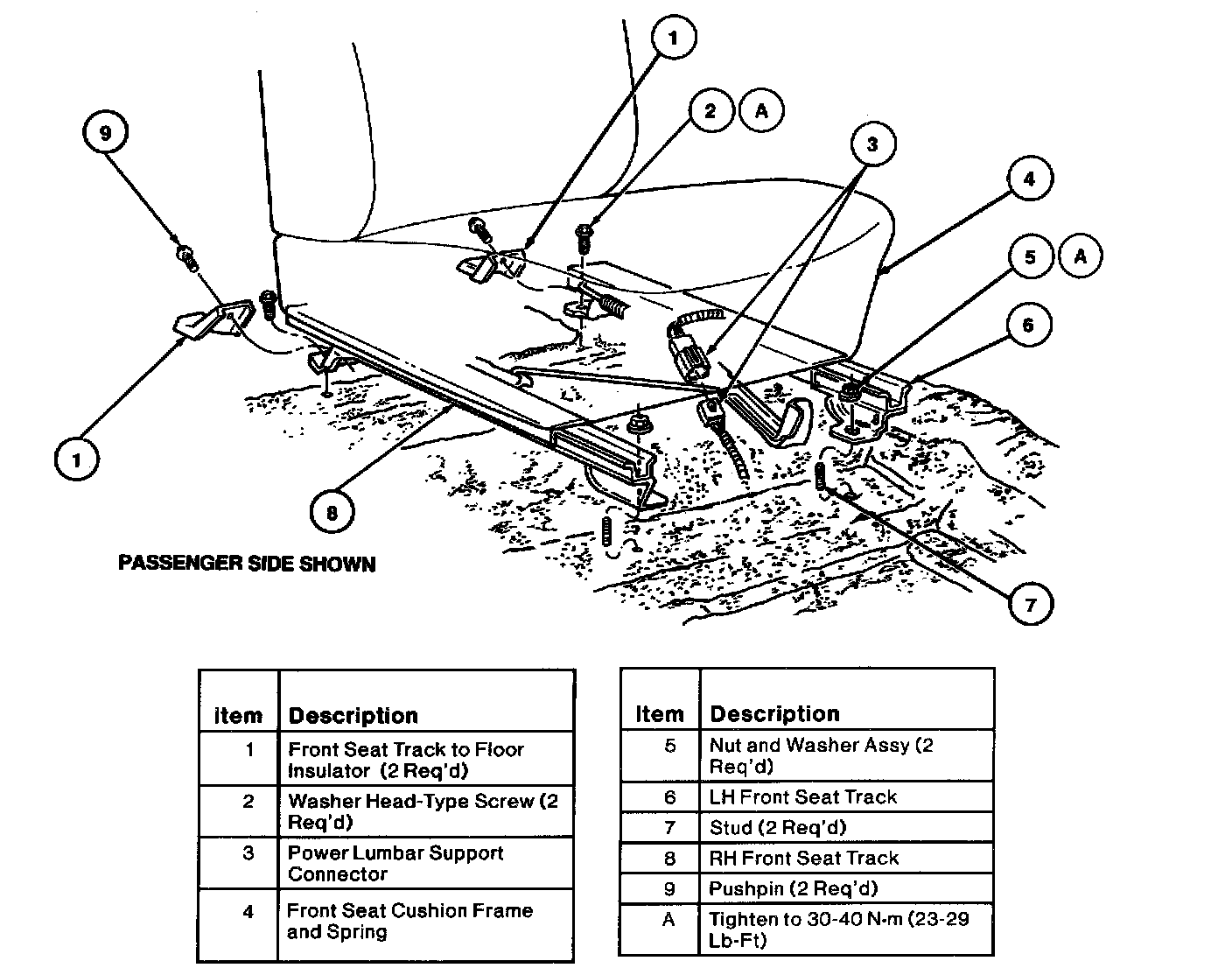

Manual Seat:

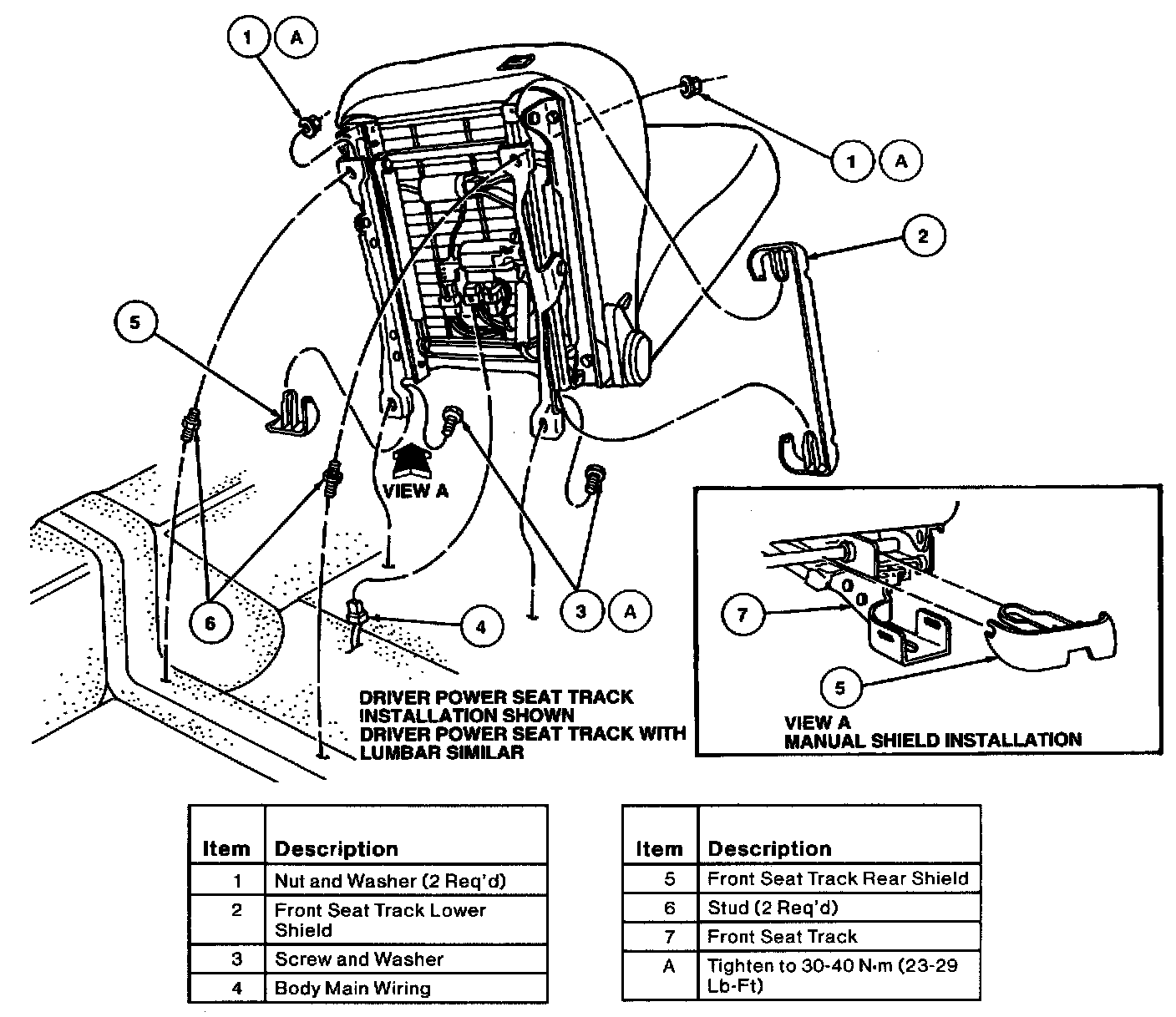

Power Seat:

REMOVAL
1. If equipped with power seats, disconnect battery ground cable.
2. Slide front safety belt from front seat strap loop shield.
3. Remove push pins and front seat track to floor insulator.

CAUTION: Use care when handling seat and track assembly. Dropping assembly or sitting on seat not secured in vehicle may result in damaged components.

4. Remove two bolts or screws and nuts retaining seat to floor. Disconnect electrical connectors and remove seat.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten retaining nuts or screws to 30-40 Nm (23-29 lb-ft).
3. Check the restraint system for proper operation.
