Rear

REMOVAL

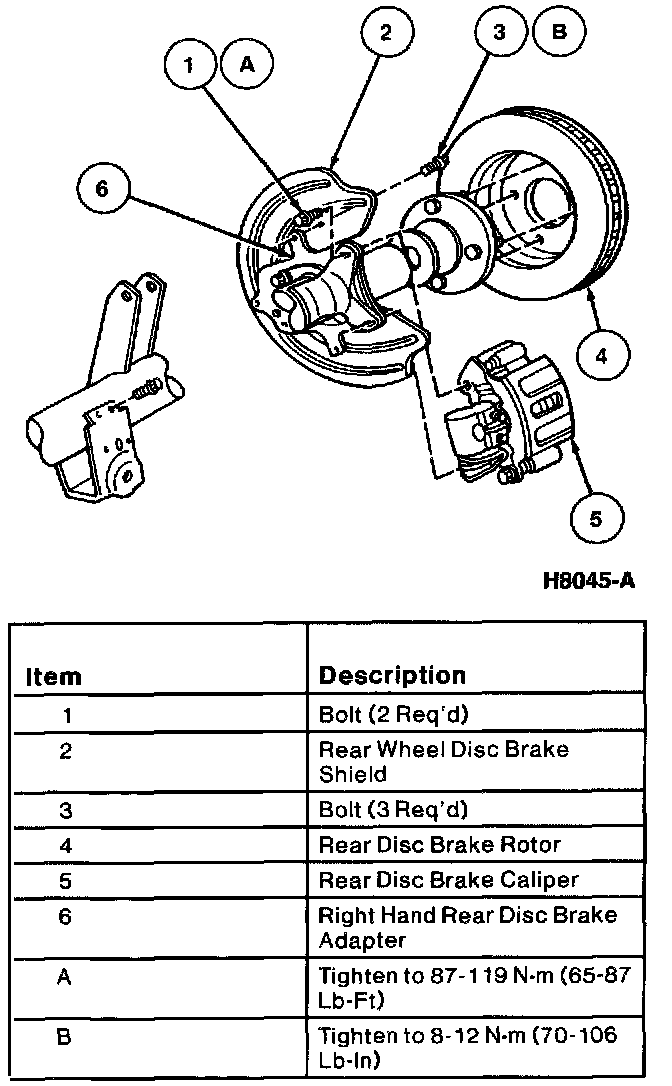

1. Remove the three bolts that retain the rear wheel disc brake shield to the rear disc brake adapter.
2. Remove the rear wheel disc brake shield.

INSTALLATION
1. If the rear wheel disc brake shield is bent, straighten it before installation.





2. Position the rear wheel disc brake shield to the rear disc brake adapter. Install mounting bolts and tighten to 8-12 Nm (70-106 inch lbs.). Note that the tabs on the rear wheel disc brake shield should not interfere with the rear wheel disc brake adapter and rear wheel disc brake shield mounting flange.

NOTE: RH and LH rear wheel disc brake shields are interchangeable.
