Blower Motor Resistor: Service and Repair

REMOVAL

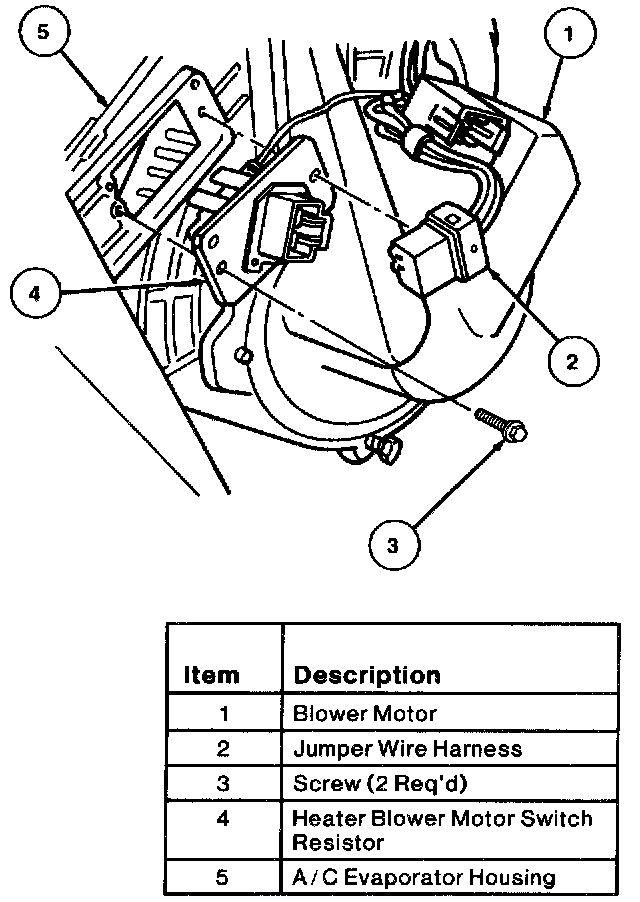

1. Disconnect jumper wire harness from heater blower motor switch resistor.
2. Remove two screws that retain heater blower motor switch resistor to the A/C evaporator housing.
3. Remove heater blower motor switch resistor.

INSTALLATION
1. Position heater blower motor switch resistor on A/C evaporator housing. Install two retaining screws.
2. Connect jumper wiring harness. Check blower motor for proper operation at all speeds.
