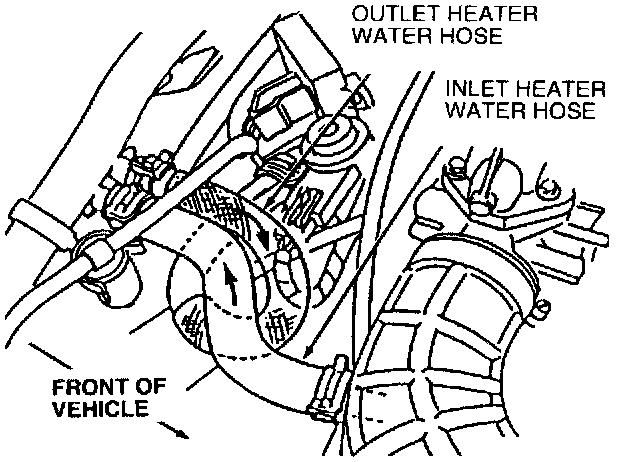

Heater Hose: Service and Repair
REMOVAL 1.
Partially drain cooling system.
2.
Disconnect and remove heater water hoses.
INSTALLATION 1.
Apply Premium Engine Coolant E2FZ-19549-AA or equivalent meeting Ford specification ESE-M97B44-A to the inside of the heater water hoses.
2.
Install new heater water hoses and clamps.
3.
Fill cooling system.
