Automatic Transaxle

REMOVAL

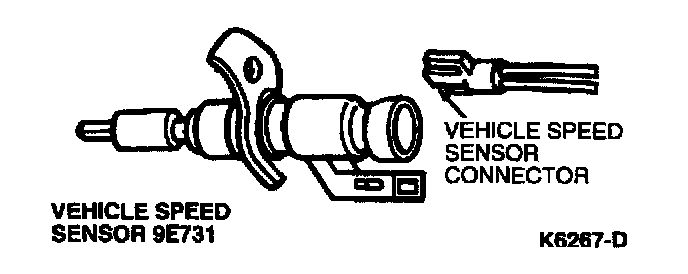

1. Raise vehicle on a hoist. Remove bolt retaining vehicle speed sensor mounting clip to transmission.
2. Remove Vehicle Speed Sensor (VSS) and driven gear from transmission.
3. Disconnect electrical connector from vehicle speed sensor.
4. Remove driven gear retainer and remove driven gear from sensor.

INSTALLATION





1. Position driven gear to vehicle speed sensor. Install gear retainer.
2. Connect electrical connector.
3. Make sure that internal O-ring is properly seated in the sensor housing.
4. Insert vehicle speed sensor assembly into transmission housing. Install retaining bolt and tighten to 7-10 Nm (62-88 inch lbs.).
5. Lower vehicle.
