A: Shift Solenoids

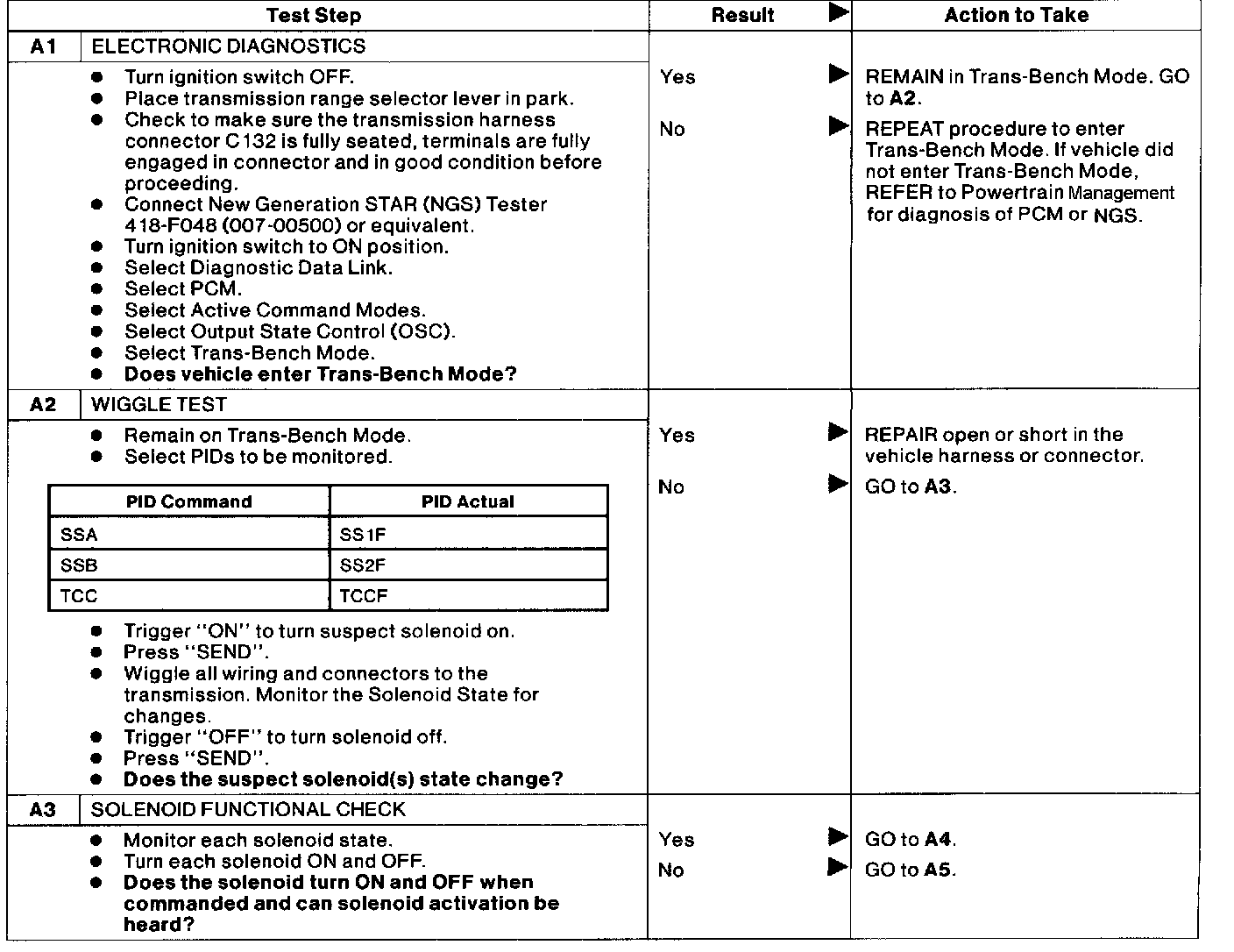

Test A1 - A3:

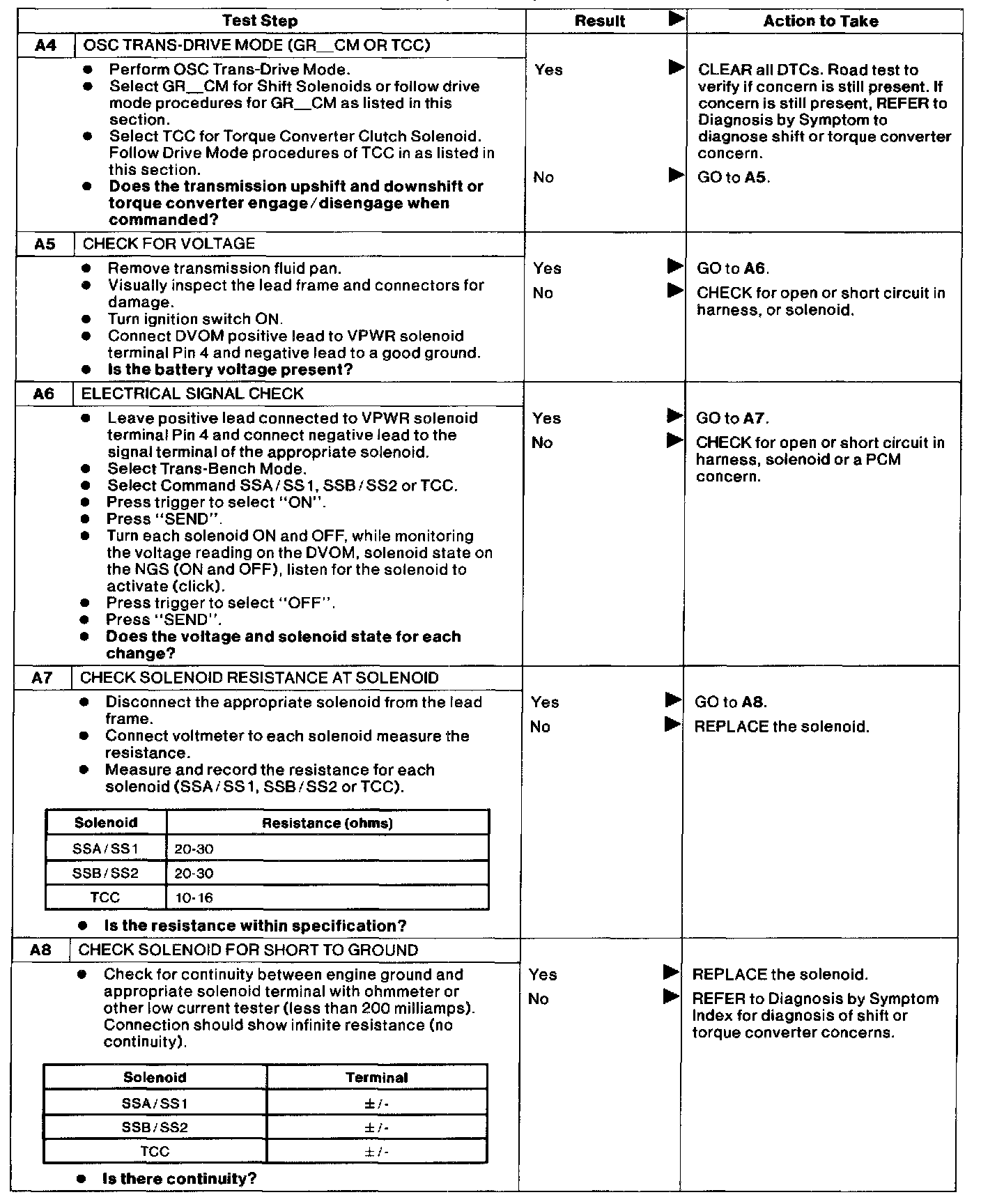

Test A4 - A8:

NOTE: Refer to the Transmission Internal Harness Illustration.

NOTE : Refer to the Transmission Harness Connector Illustration.

NOTE: Read and record all DTCs. All digital TR Sensor and VSS DTCs must be repaired before entering Output State Control (OSC).
