B: Transmission Fluid/Oil Temperature (TFT/TOT) Sensor

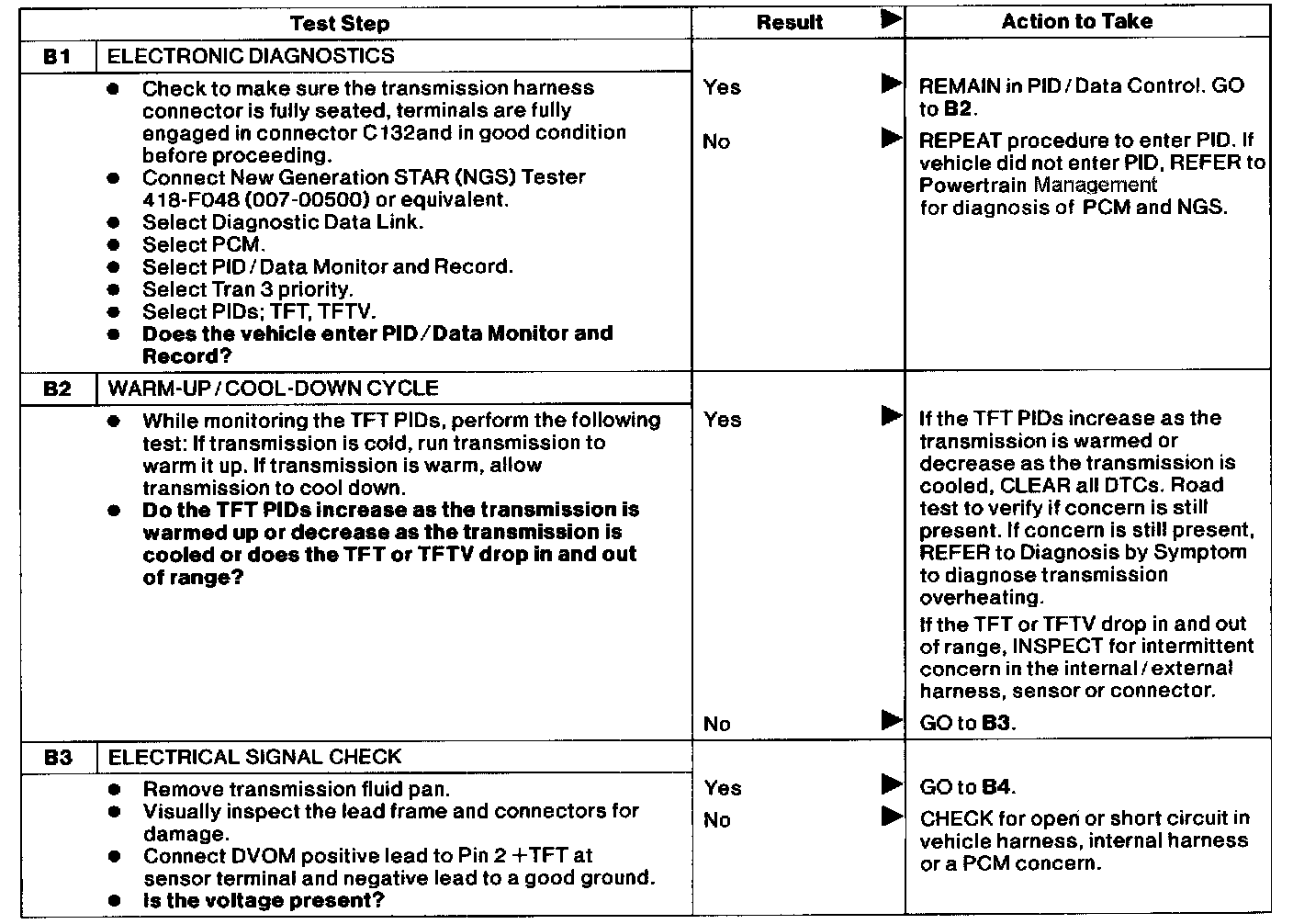

Test B1 - B3:

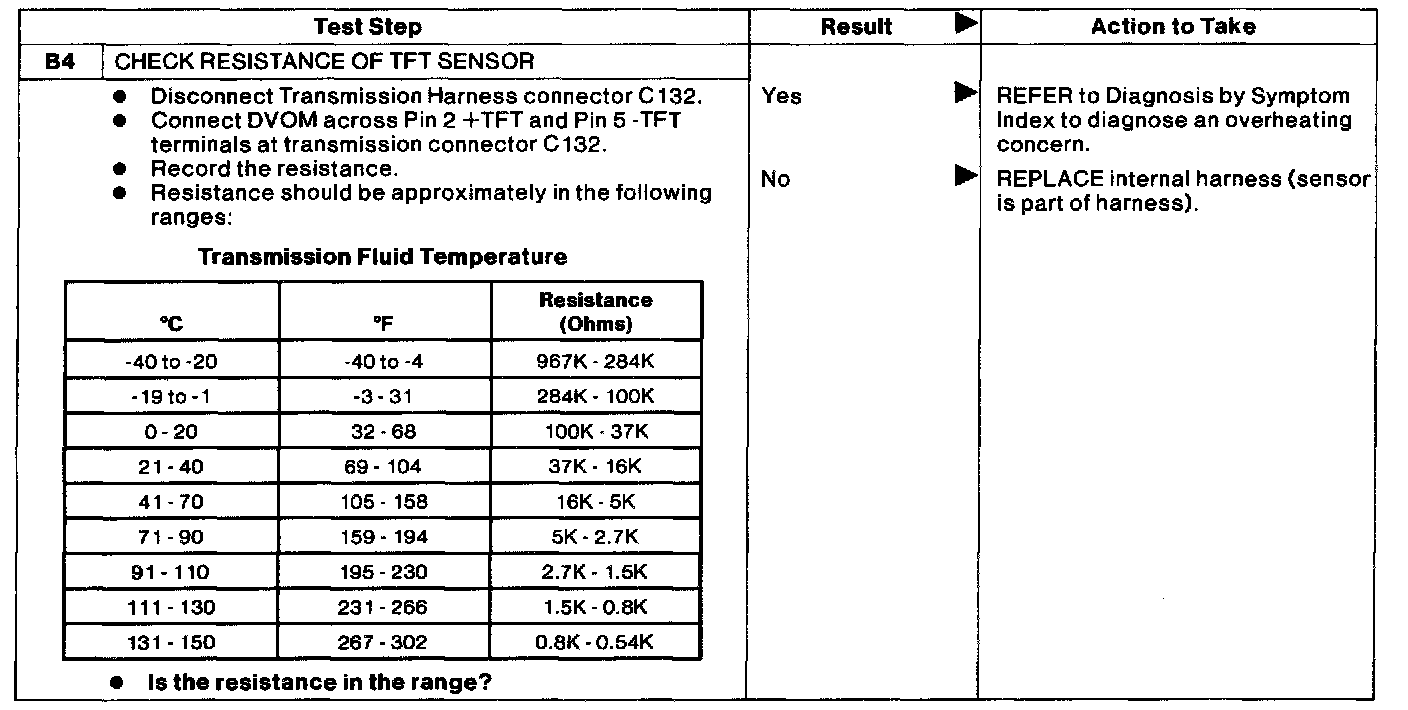

Test B4:






NOTE: Refer to the Transmission Internal Harness Illustration.

NOTE: Refer to the Transmission Harness Connector Illustration.
