D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor

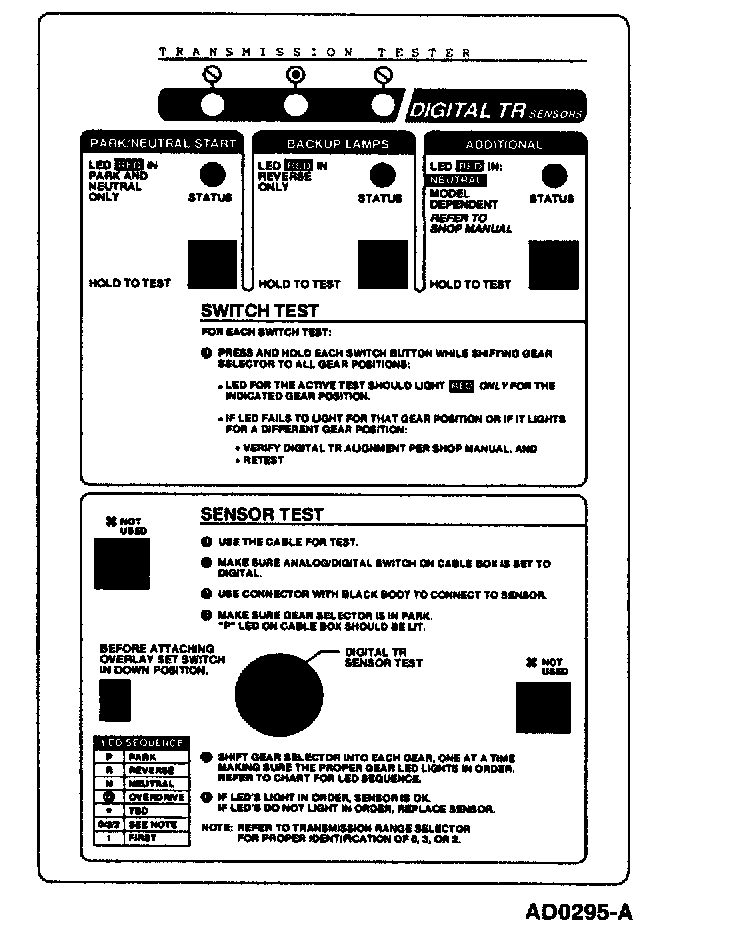

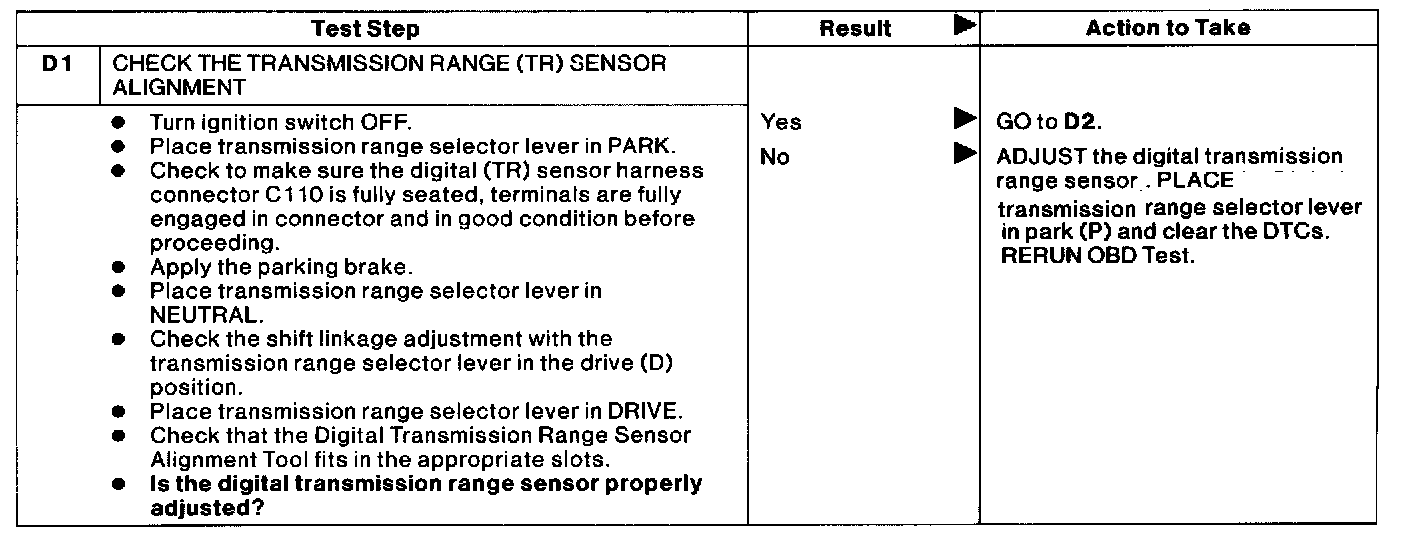

DIGITAL TR SENSOR OVERLAY 007-00131 DIGITAL TR SENSOR ADAPTER CABLE 418-F 107 (007-00111) TR POSITION DISPLAY Test D1:

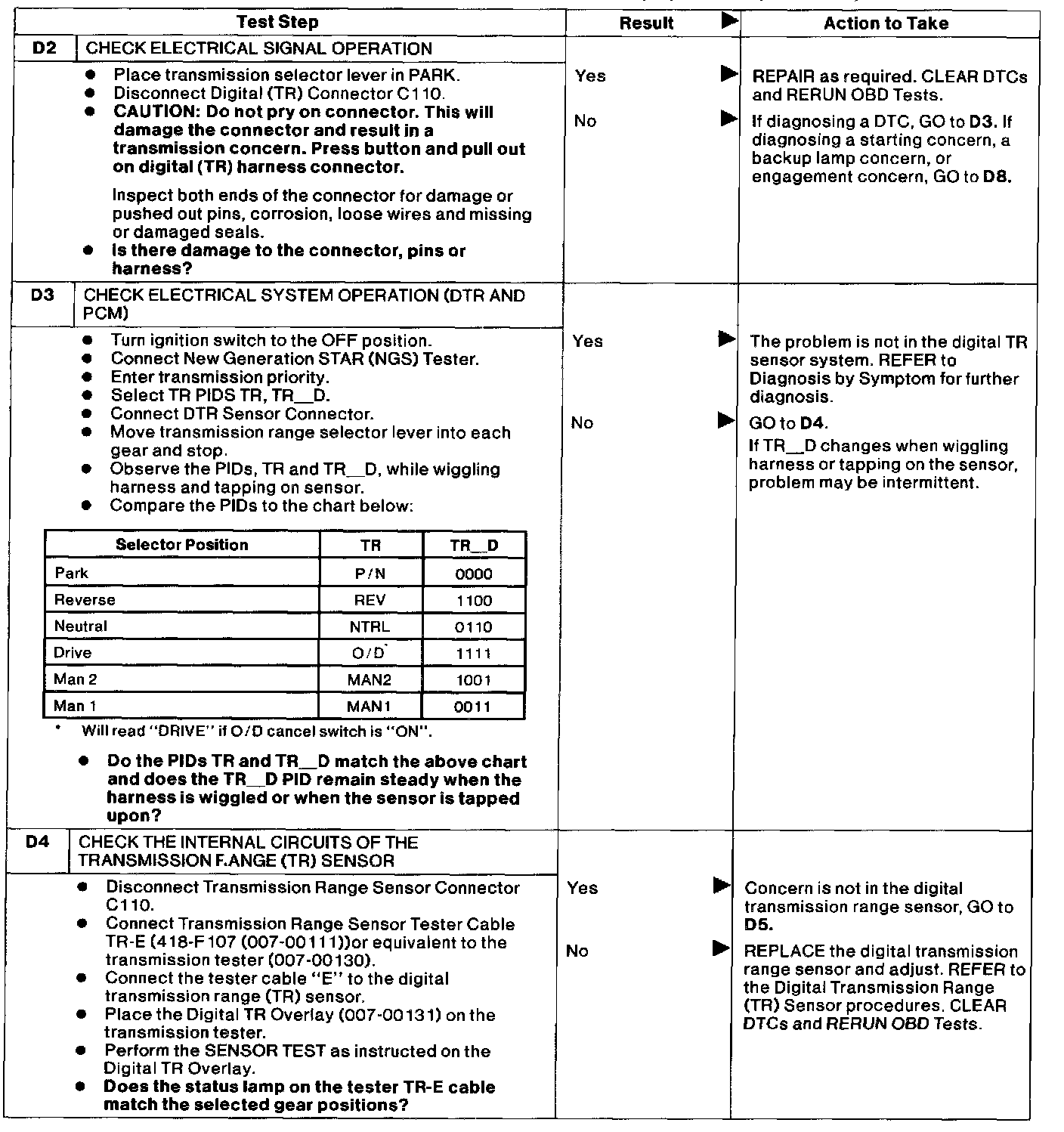

Test D2 - D4:

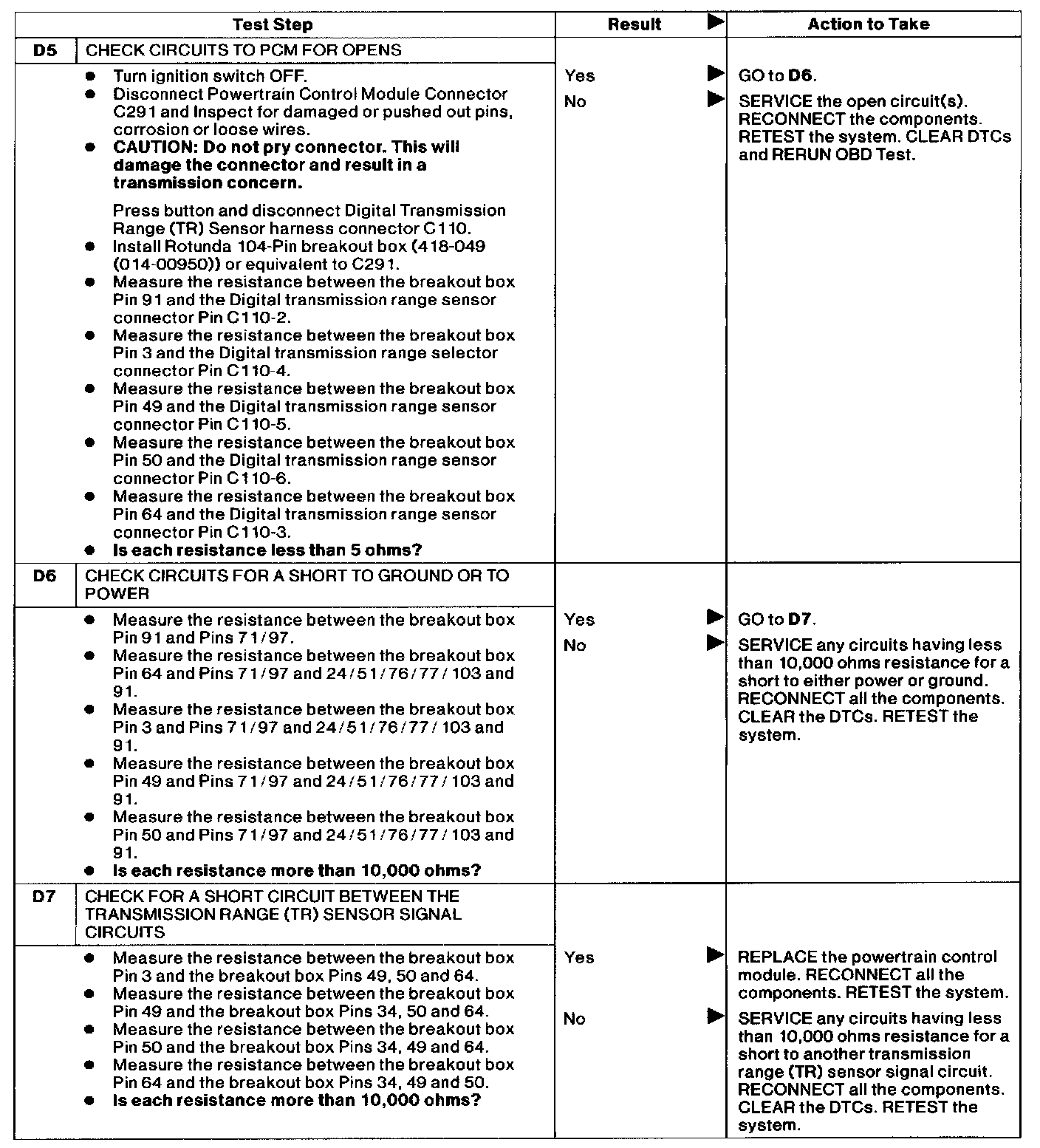

Test D5 - D7:

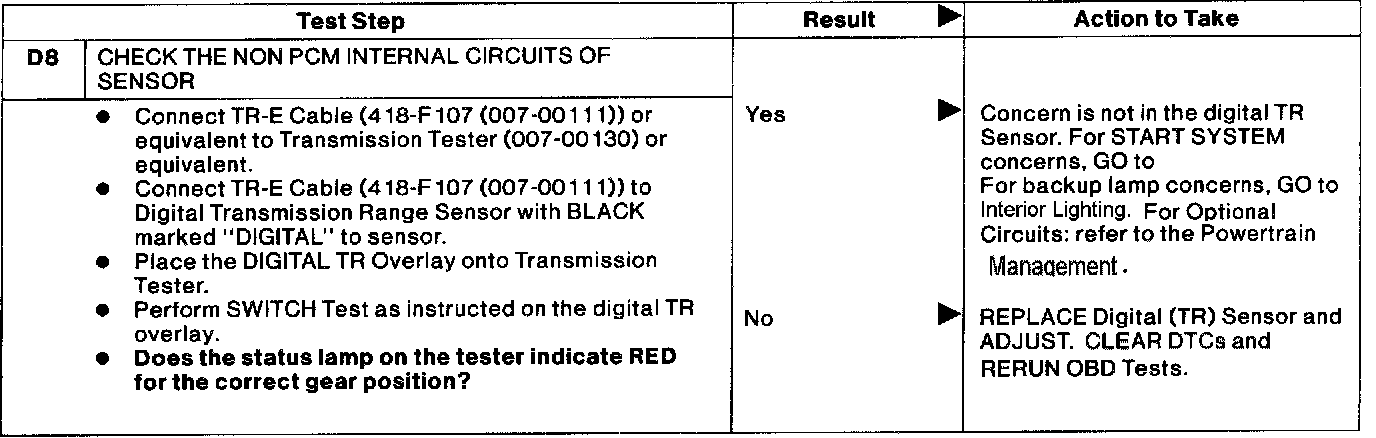

Test D8:
NOTE: Refer to the Digital Transmission Range (TR) Sensor Connector Illustration.
