E: Electronic Pressure Control (EPC) Solenoid

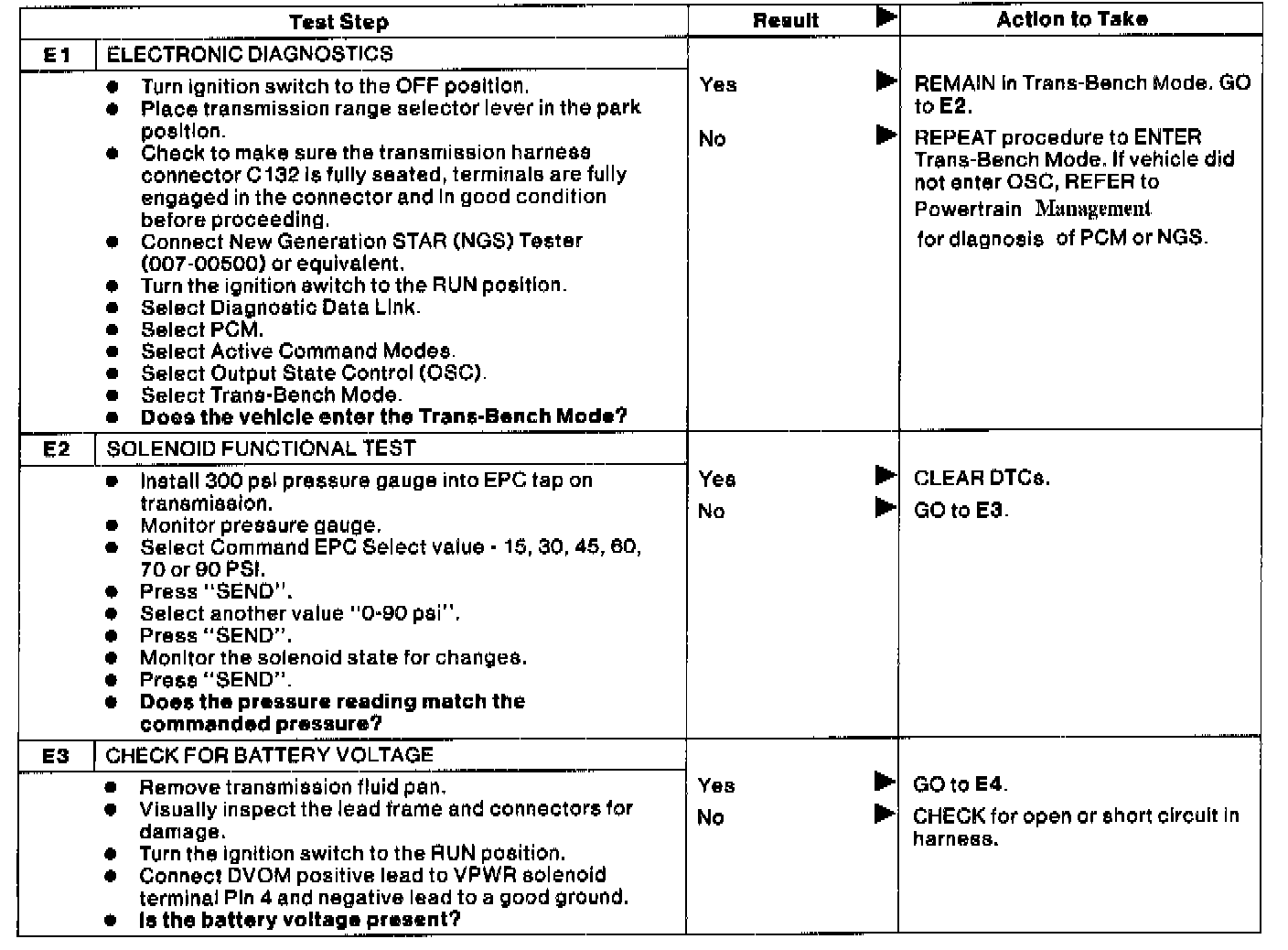

Test E1 - E3:

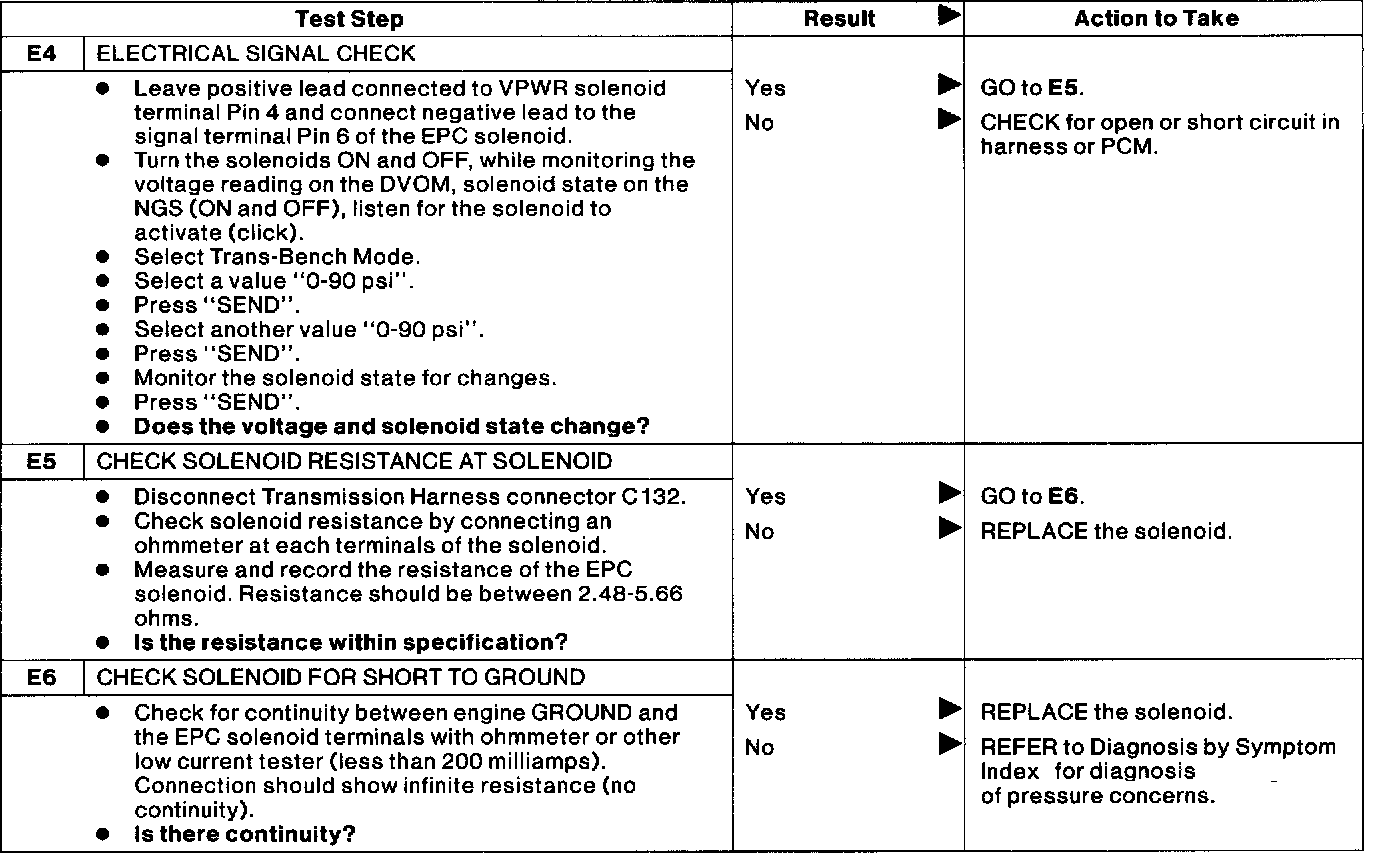

Test E4 - E6:






NOTE: Refer to the Transmission Internal Harness Illustration.

NOTE: Refer to the Transmission Harness Connector Illustration.
