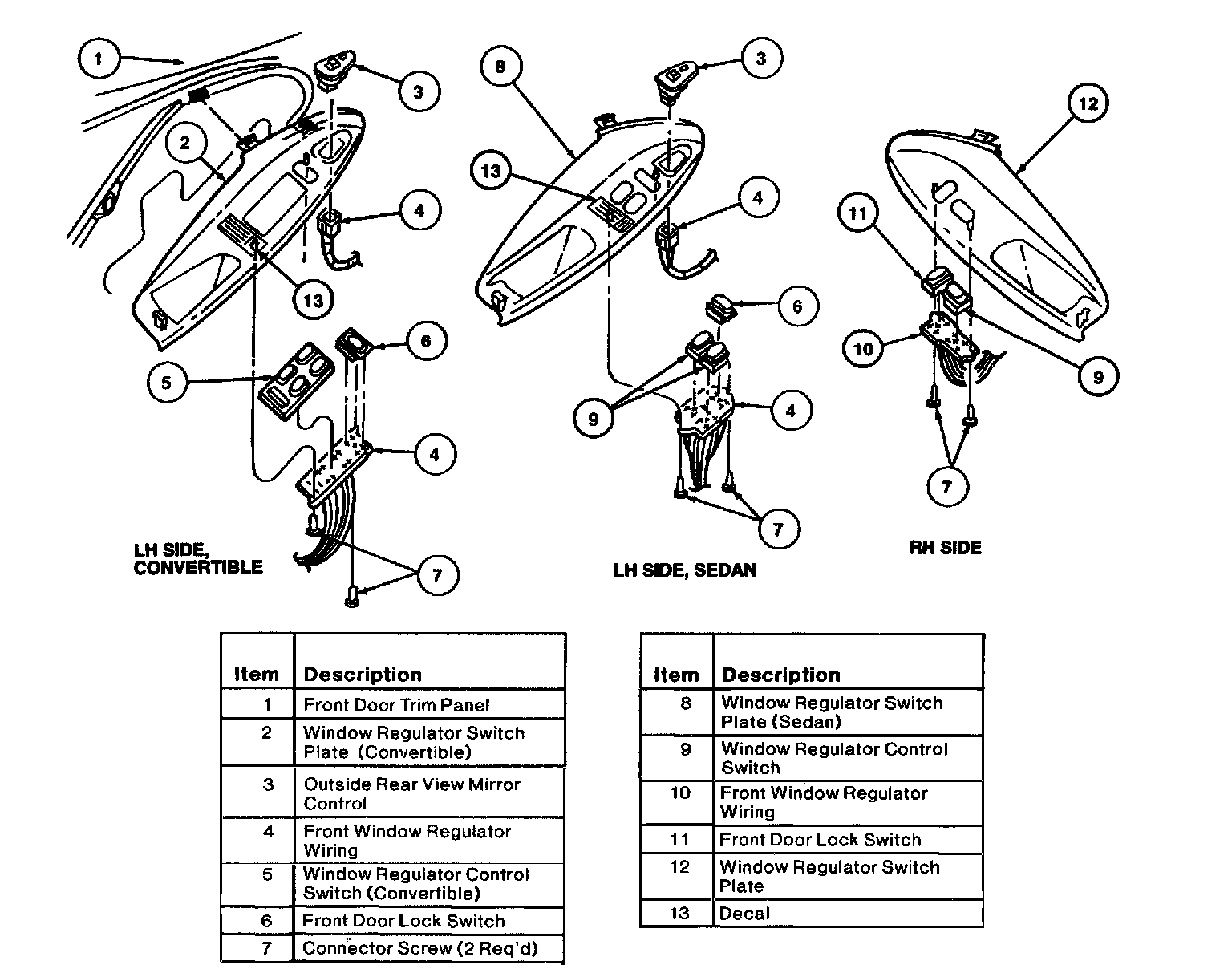

Window Regulator Control Switch






REMOVAL
1. Remove window regulator switch plate by using fingers to carefully pry down on top edge of window regulator switch plate.
2. Lift window regulator switch plate to release front of window regulator switch plate.
3. Remove window regulator switch plate.

NOTE: Do not twist window regulator switch plate. Hold window regulator switch plate at front and rear, pull straight upward with a quick motion.

4. Remove two connector retaining screws from bottom of window regulator switch plate.
5. The window regulator control switch is held in place by electrical contact pins. To remove window regulator control switch, carefully pry window regulator control switch from connector with a small screwdriver.

INSTALLATION
1. Follow removal procedure in reverse order.

NOTE: The window regulator control switch is keyed to connector and can only be installed one way.
