Transmission Position Sensor/Switch: Service and Repair


Special Tools:





REMOVAL
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.





3. Disconnect the shift cable.
1. Disconnect the shift cable from the manual control lever.
2. Disconnect the shift cable from the bracket.





4. Disconnect the digital Transmission Range (TR) sensor electrical connector.





5. Remove the manual control outer lever nut and manual control outer lever.

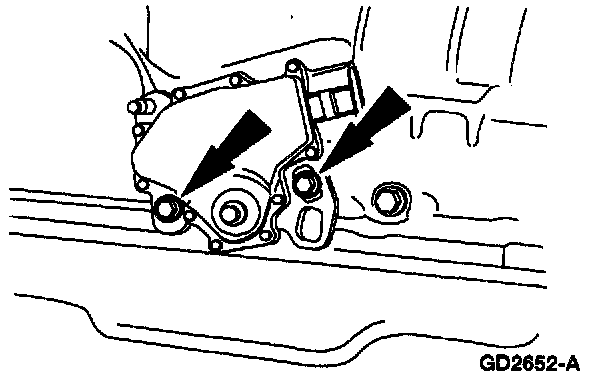

6. Remove the screws and the digital TR sensor.

INSTALLATION





1. Install the digital Transmission Range (TR) sensor.
1. Position the digital TR sensor.
2. Loosely install the screws.





2. Align the digital TR sensor.
1. Install TR Sensor Alignment Tool into the three slots on the digital TR sensor.
2. Tighten the screws.

NOTE: The manual lever must be in neutral

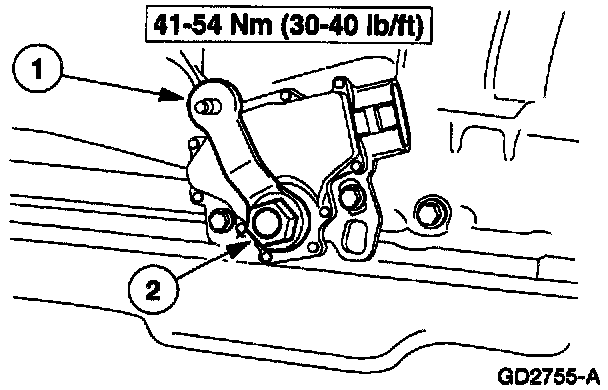

3. Install the manual control outer lever.
1. Install the manual control outer lever.
2. Install the manual control outer lever nut.





4. Connect the digital Transmission Range (TR) sensor electrical connector.





5. Connect the shift cable.
1. Connect the shift cable to the bracket.
2. Connect the shift cable to the manual control lever.
6. Verify that the shift cable is adjusted.
7. Lower the vehicle.
8. Connect the battery ground cable.
